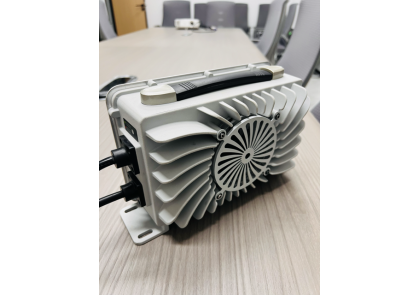

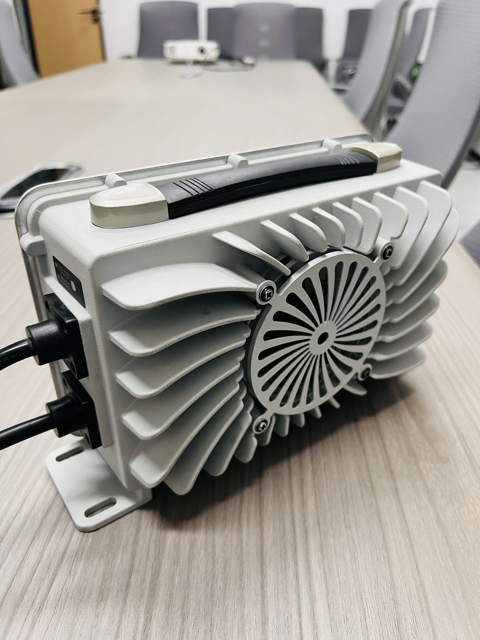

48V 20A Waterproof Battery Charger with CAN

Brief Descriptions:

Marine Battery Charger 48V 20A with IP65 rate waterproof and CAN communication, is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or boat appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 48V 20A. Smart max charging voltage is 58.8V for lead acid (sealed, AGM) type batteries and 54.6 / 58.4V for LiFePO4 batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

1) Dimensions(LxWxH): 283 × 164 × 93 mm

2) Net weight: 4.5 KG

3) Max charging voltage(CV): 58.4 / 54.6 volt

4) Communitation port: CAN bus

5) Max output current (CC): 20 amps

6) Charging method: Pre-charge, CC, CV

7) AC input voltage: 90-264 Vac universal

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum

12) Waterproof rate: IP65
