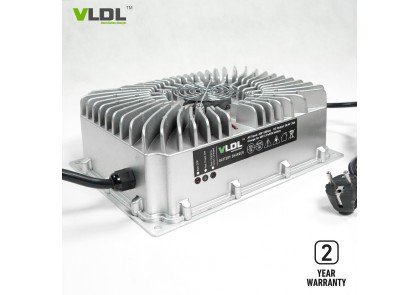

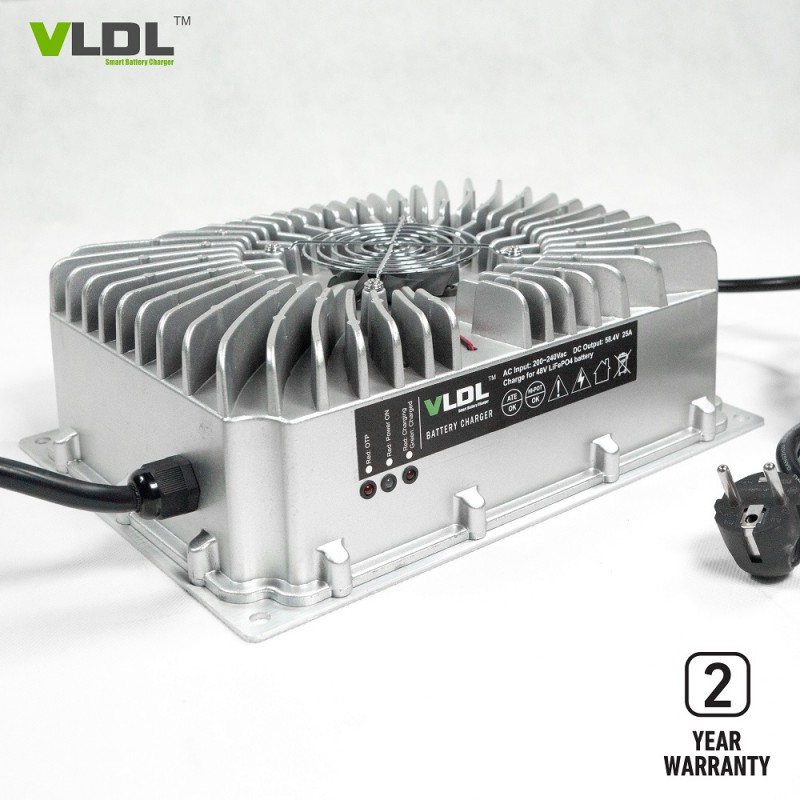

48V 20A Surfboard Marine Battery Charger
Item No.: VL4820LWP
Dimension: 310*230*101mm
Net weight: 8.0kg
Input voltage: wide 90~264Vac with PFC
Case material: sealed aluminum
WaterProof rate: IP65 / IP66
Output rated: 48V 20A
Max charging: 54.6V / 58.4 / 58.8V customized
Applied to battery Types: 48V Lead acid or Lithium Battery
Smart Charging: Auto. Pre-charge, CC and CV
- Product Details
48V 20A Surfboard Marine Battery Charger
Customized for Electric Surfboard, already sold 4000+pcs to Euro market.
Brief Descriptions:
48V 20A output Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 90~264Vac input voltage with PFC.
54.6 / 58.4 / 58.8V customized max charging voltage for Lithium / lead-acid batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
2 years warranty, high quality.
Technical Specs.:
Dimensions: 310 × 230 × 101 MM
Net weight: 8.0 KG
Max charging voltage(CV): 54.6, 58.4, 58.8 volt (customized)
Max output current (CC): 20 amps
Charging method: Pre-charge, CC, CV
AC input voltage: 90-264 Vac universal
AC input frequency.: 50 / 60 Hz
AC plug types: UK, Euro, US, AU, India
Output connector types: supply free Clips, Anderson 50A.
Enclosure: Aluminum
Waterproof rate: IP65 / IP66
