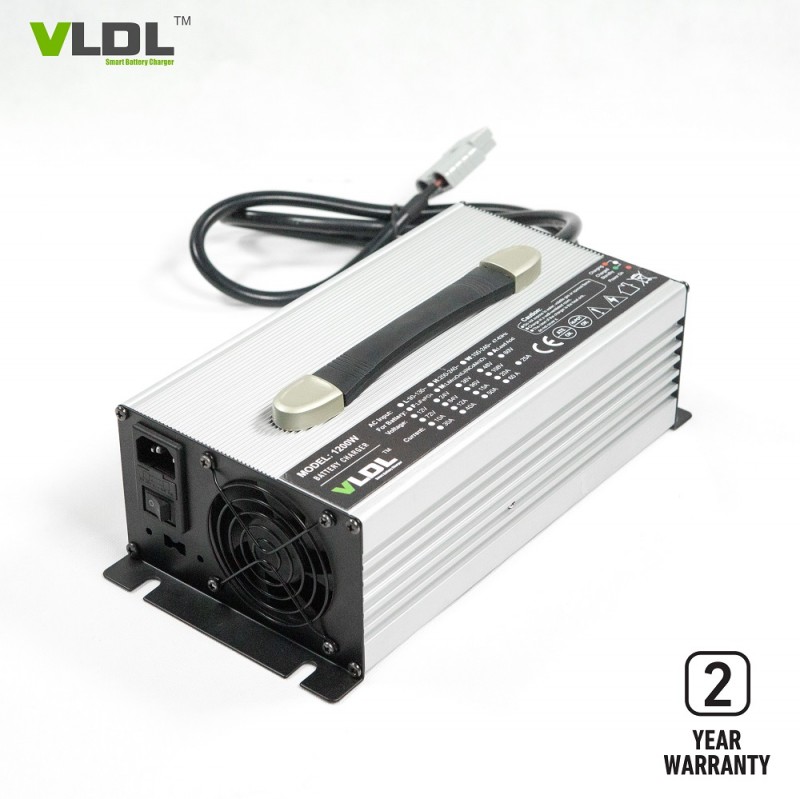

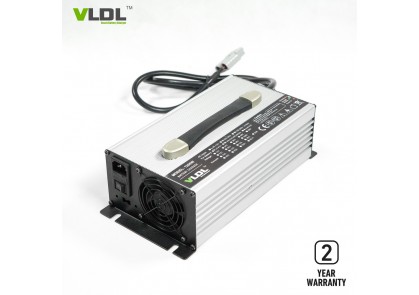

48V 20A Battery Charger
Item No.: VL4820
Case: Aluminum
Input voltage: 110V or 230Vac
Rated output: 48V 20A
Max charging: 58.8V 20A
Applied to battery types: 48V Lead-acid, AGM, GEL
Applied to EV types: E-forklifts, E-cars, electric AGV carts
Charging method: auto. CC, CV and Floating
Size: 300 x 150 x 90 mm
Net weight: 5.5kg
Warranty: 2 years
- Product Details
48V 54.6V 58.4V 58.8V 20A 1200W Battery Charger, Automatic Charging and Custom-made for Lithium / Lead Acid Batteies
Brief Description:
Advanced high frequency switching mode power supply technology.
Designed for 48V lithium or lead acid battery.
Custom-made charging method is available.
Single 110V or 230Vac.
Rated output voltatge is 48V 20A.
Max charging voltage could be 54.6V, 58.4V or 58.8V according to battery types.
Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
Suit to charge 48V e-forklifts, e-club cars or other EVs.
Technical Specs.:
1) Dimensions(LxWxH): 260 x 150 x 90 mm
2) Net weight: 5.5 KG
3) Max charging voltage(CV): 54.6 / 58.4 / 58.8 volt
4) Floating voltage: customized
5) Max output current (CC): 20 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 / 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
Ralated Charger of 1200W:
| Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 or 230V
Frequency: 47~63HZ
|
VL1260L | 12V LiFePO4 Battery |
|
14.6V | 60A | CC5~8% |
| VL1260 | 12V Lead-acid Battery | 13.5V | 14.7V | 60A | CC20% | |
| VL1460 | 14V AGM Battery | 13.5V | 14.4V | 60A | CC20% | |
| VL1660L | 16V LiFePO4 Battery |
|
18.2V | 60A | CC5~8% | |
| VL2435LM | 24V Li-MnO2 Battery |
|
29.4V | 35A | CC5~8% | |
| VL2435L | 24V LiFePO4 Battery |
|
29.2V | 35A | CC5~8% | |
| VL2435 | 24V Lead-acid Battery | 27.6V | 29.4V | 35A | CC20% | |
| VL3620LM | 36V Li-MnO2 Battery |
|
42V | 20A | CC5~8% | |
| VL3620L | 36V LiFePO4 Battery |
|
43.8V | 20A | CC5~8% | |
| VL3620 | 36V Lead-acid Battery | 41.4V | 44.1V | 20A | CC20% | |
| VL4818LM | 48V Li-MnO2 Battery |
|
54.6V | 18A | CC5~8% | |
| VL4818L | 48V LiFePO4 Battery |
|
43.8V | 18A | CC5~8% | |
| VL4818 | 48V Lead-acid Battery | 55.2V | 58.8V | 18A | CC20% | |
| VL6015L | 60V LiFePO4 Battery |
|
73V | 15A | CC5~8% | |
| VL6015 | 60V Lead-acid Battery | 67.5V | 73.5V | 15A | CC20% | |
| VL7213L | 72V LiFePO4 Battery |
|
87.6V | 13A | CC5~8% | |
| VL7213 | 72V Lead-acid Battery | 81V | 88.2V | 13A | CC20% | |
| VL8411L | 84V LiFePO4 Battery |
|
102.2V | 11A | CC5~8% | |
| VL8411 | 84V Lead-acid Battery | 94.5V | 102.9V | 11A | CC20% | |
| VL9610L | 96V LiFePO4 Battery |
|
116.8V | 10A | CC5~8% | |
| VL9610 | 96V Lead-acid Battery | 108V | 117.6V | 10A | CC20% | |
|
Note: customized input / output / plug type / connectors are available |
||||||
