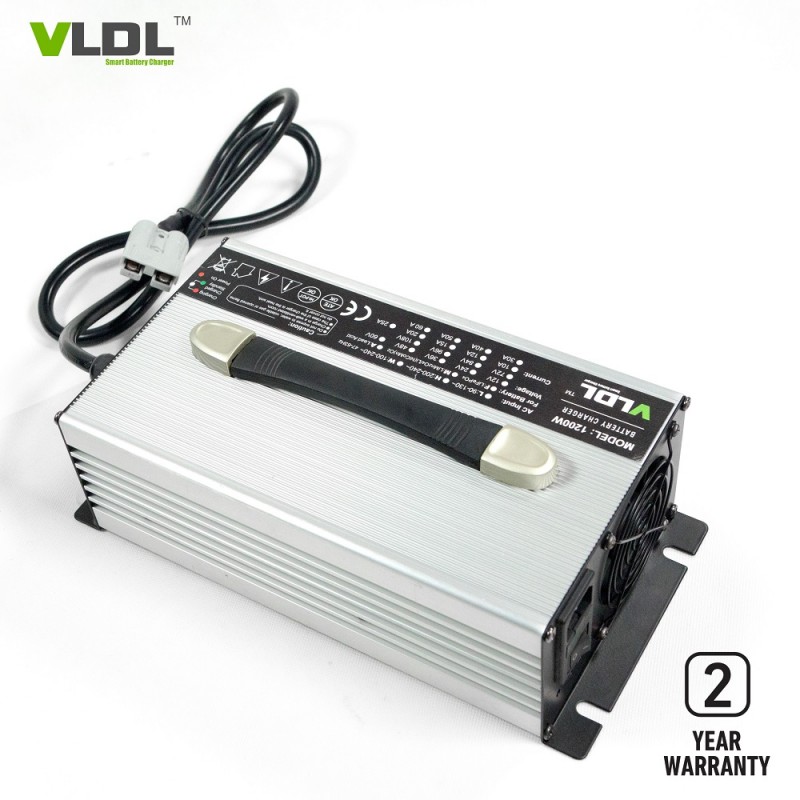

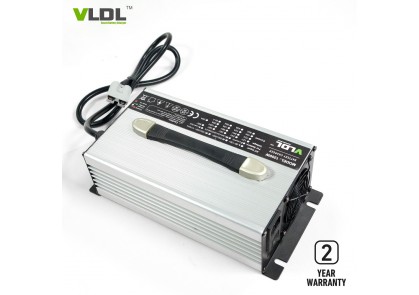

48V 18A Lithium Battery Charger
Color Option: Silver / Black
Output power series: 1200W
Input voltage: 110V or 230V
Max charging: 54.6V / 58.4V, 18A
Applied to battery types: 48V Li-ion, LiFePO4 battery
Applied to EV types: Electric Tricycles, Golfcart
Charging method: CC, CV and Floating
Size: 260 x 150 x 90 mm
Net weight: 4.5KG
- Product Details
48V 18A Lithium Battery Charger
Descriptions:
110V or 220Vac single input.
48V 18A rated output.
54.6V / 58.4V customized max charging voltage.
Smart CC CV charging.
Small size.
Aluminum case.
High reliability.
Specifications:
AC input voltage: 110V or 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 18A
Max charging voltage: customized 54.6V / 58.4V
Dimensions(LxWxH): 260 x 150 x 90 mm
Net weight: 5.0 KG
Housing: Aluminum
Color: Black or silver
Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.
Smart and Automatic 4 Steps Charging.
Aluminum Casing, Light Weight, Portable.
High Quality, Factory Price.
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Applications:
Automatic Charging For 48V Lithium ion, LiFePO4 Batteries.
Suit for E-bikes, E-scooters.
Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
| Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1260L | 12V LiFePO4 Battery |
|
14.6V | 60A | CC5~8% |
| VL1260 | 12V Lead-acid Battery | 13.5V | 14.7V | 60A | CC20% | |
| VL1460 | 14V AGM Battery | 13.5V | 14.4V | 60A | CC20% | |
| VL1660L | 16V LiFePO4 Battery |
|
18.2V | 60A | CC5~8% | |
| VL2435LM | 24V Li-MnO2 Battery |
|
29.4V | 35A | CC5~8% | |
| VL2435L | 24V LiFePO4 Battery |
|
29.2V | 35A | CC5~8% | |
| VL2435 | 24V Lead-acid Battery | 27.6V | 29.4V | 35A | CC20% | |
| VL3620LM | 36V Li-MnO2 Battery |
|
42V | 20A | CC5~8% | |
| VL3620L | 36V LiFePO4 Battery |
|
43.8V | 20A | CC5~8% | |
| VL3620 | 36V Lead-acid Battery | 41.4V | 44.1V | 20A | CC20% | |
| VL4818LM | 48V Li-MnO2 Battery |
|
54.6V | 18A | CC5~8% | |
| VL4818L | 48V LiFePO4 Battery |
|
43.8V | 18A | CC5~8% | |
| VL4818 | 48V Lead-acid Battery | 55.2V | 58.8V | 18A | CC20% | |
| VL6015L | 60V LiFePO4 Battery |
|
73V | 15A | CC5~8% | |
| VL6015 | 60V Lead-acid Battery | 67.5V | 73.5V | 15A | CC20% | |
| VL7213L | 72V LiFePO4 Battery |
|
87.6V | 13A | CC5~8% | |
| VL7213 | 72V Lead-acid Battery | 81V | 88.2V | 13A | CC20% | |
| VL8411L | 84V LiFePO4 Battery |
|
102.2V | 11A | CC5~8% | |
| VL8411 | 84V Lead-acid Battery | 94.5V | 102.9V | 11A | CC20% | |
| VL9610L | 96V LiFePO4 Battery |
|
116.8V | 10A | CC5~8% | |
| VL9610 | 96V Lead-acid Battery | 108V | 117.6V | 10A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||

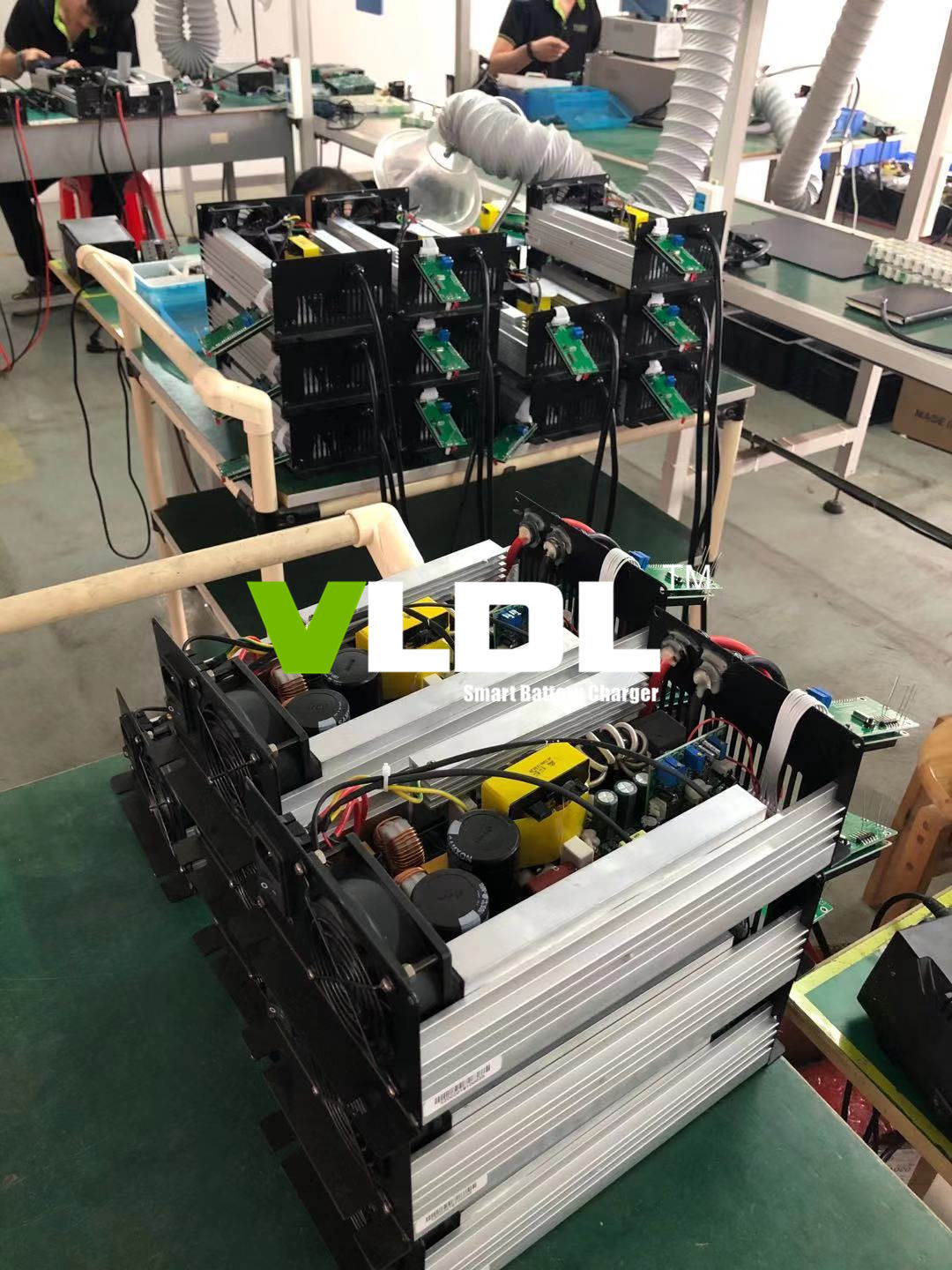

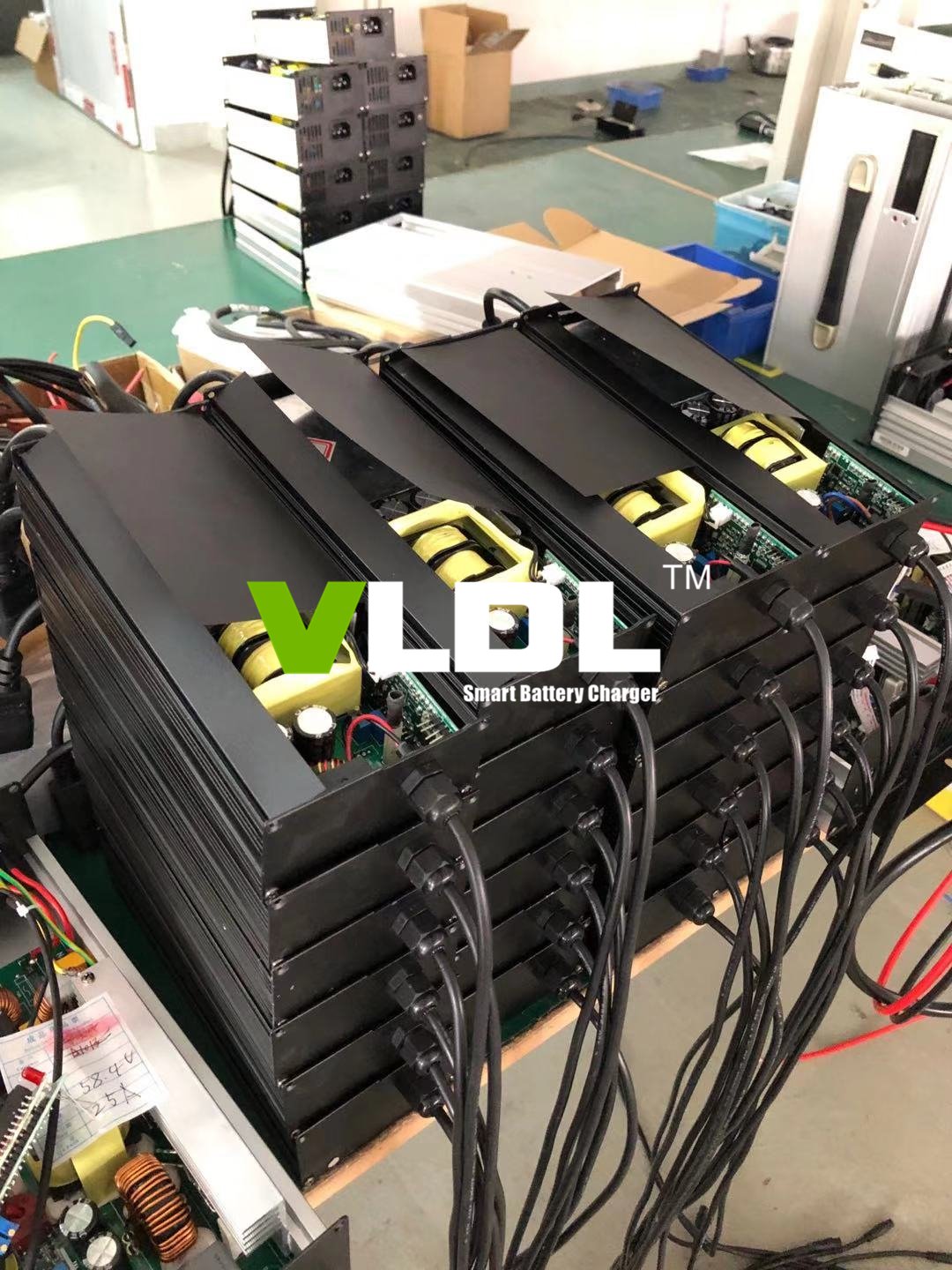

Factory pictures:
