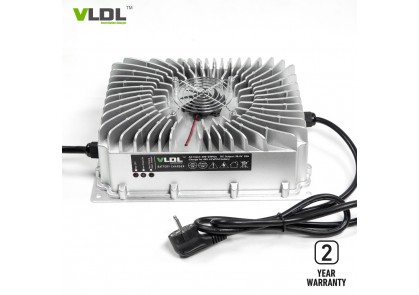

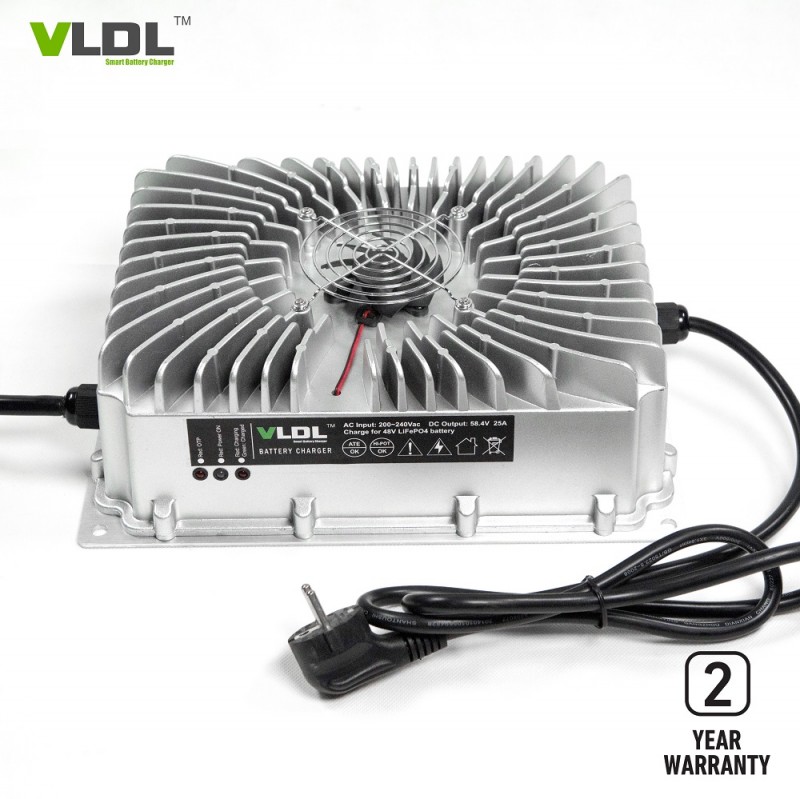

48V 15A Waterproof Battery Charger
Item No.: VL4815LWP
Dimension: 310*230*101mm
Net weight: 8.0kg
Input voltage: wide 90~264Vac with PFC
Case material: sealed aluminum
WaterProof rate: IP65 / IP66
Output rated: 48V 15-20A
Max charging: 54.6V / 58.4V customized
Applied to battery Types: 48V Lithium Battery
Smart Charging: Auto. Pre-charge, CC and CV
- Product Details
48V 15A Waterproof / Marine Lithium Battery Charger
Waterproof / Marine Lithium battery charger 48 volts 15 amps, input with AC 110-230Vac with PFC and rated output voltage is DC 48V 15A. Smart max charging voltage is 54.6V or 58.4V for li-ion, LiFePO4, LiMnO2 type batteries. Intelligent 4 stages charging with CC, CV steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and protect your battery life maximum. High quality, factory price and 2 years warranty.
Brief Descriptions:
48V 15-20A output Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 90~264Vac input voltage with PFC.
54.6V / 58.4V customized max charging voltage for Lithium batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
CE certification from TUV.
2 years warranty, high quality.
Technical Specs.:
Dimensions: 310 × 230 × 101 MM
Net weight: 8.0 KG
Max charging voltage(CV): 54.6 / 58.4Vdc (customized)
Max output current (CC): 15-20 amps
Charging method: Pre-charge, CC, CV
AC input voltage: 90-264 Vac universal
AC input frequency.: 50 / 60 Hz
AC plug types: UK, Euro, US, AU, India
Output connector types: supply free Clips, Anderson 50A.
Enclosure: Aluminum
Waterproof rate: IP65 / IP66
