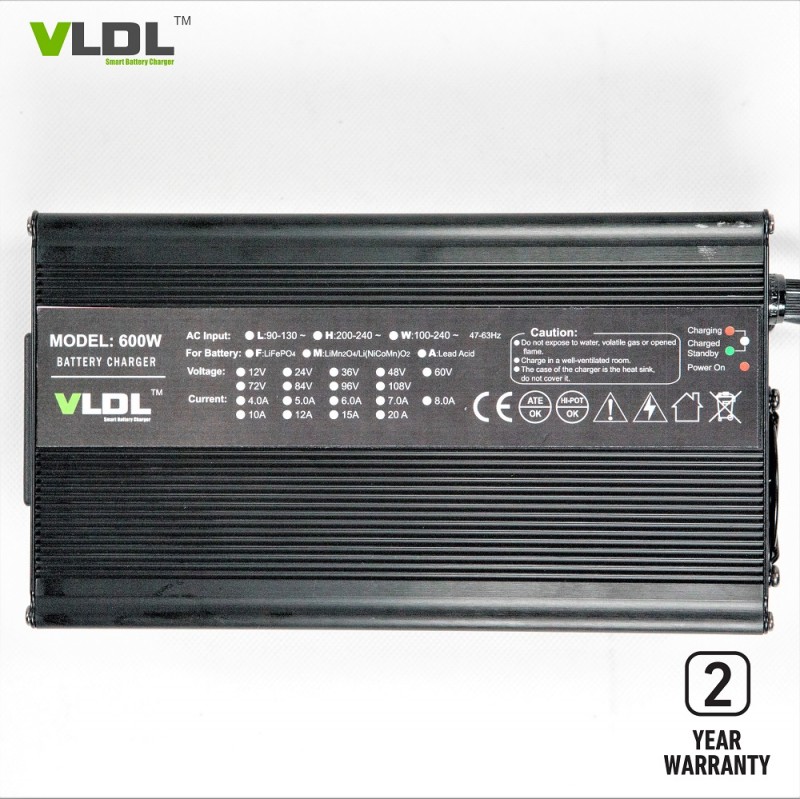

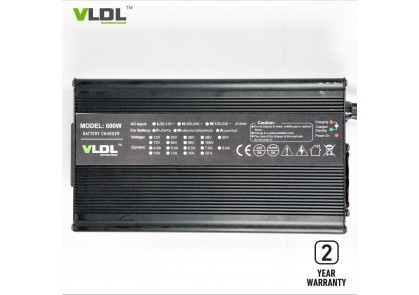

48V 10A PFC Battery Charger
- Product Details
PFC 48V 10A Smart Battery Charger For Li-ion/Lead Acid Battery Charger
Brief Description:
Designed for 48V Lithium racing battery input with 110 - 230Vac with PFC and rated output voltage is 48V 10A. Smart max charging voltage is 58.4V Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Features
1) Optional charging methods: Lithium or AGM batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Automatic worldwide Input 110-230Vac(90~264Vac) with PFC, 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
Technical Specs.:
1) Dimensions(LxWxH): 220 x 120 x 70 mm
2) Net weight: 2.5 KG
3) Max charging voltage(CV): 58.4 / 58.8 volt
4) Floating voltage: custom-made
5) Max output current (CC): 10 amps
6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 230Vac with PFC
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user's country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
Rlated models of 600W charger:
| Output series: 600W with PFC Size: 220×120×70 mm Net weight: 2.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
PFC AC Input: 110 - 230V
Frequency: 47~63HZ
|
VL1225L | 12V LiFePO4 Battery | 14.6V | 25A | CC5~8% | |
| VL1225 | 12V Lead-acid Battery | 13.5V | 14.7V | 25A | CC20% | |
| VL1425 | 14V AGM Battery | 13.5V | 14.4V | 25A | CC20% | |
| VL1625L | 16V LiFePO4 Battery | 18.2V | 25A | CC5~8% | ||
| VL2418LM | 24V Li-MnO2 Battery | 29.4V | 18A | CC5~8% | ||
| VL2418L | 24V LiFePO4 Battery | 29.2V | 18A | CC5~8% | ||
| VL2418 | 24V Lead-acid Battery | 27.6V | 29.4V | 18A | CC20% | |
| VL3612LM | 36V Li-MnO2 Battery | 42V | 12A | CC5~8% | ||
| VL3612L | 36V LiFePO4 Battery | 43.8V | 12A | CC5~8% | ||
| VL3612 | 36V Lead-acid Battery | 41.4V | 44.1V | 12A | CC20% | |
| VL4810LM | 48V Li-MnO2 Battery | 54.6V | 10A | CC5~8% | ||
| VL4810L | 48V LiFePO4 Battery | 43.8V | 10A | CC5~8% | ||
| VL4810 | 48V Lead-acid Battery | 55.2V | 58.8V | 10A | CC20% | |
| VL6008L | 60V LiFePO4 Battery | 73V | 8A | CC5~8% | ||
| VL6008 | 60V Lead-acid Battery | 67.5V | 73.5V | 8A | CC20% | |
| VL7206L | 72V LiFePO4 Battery | 87.6V | 6A | CC5~8% | ||
| VL7206 | 72V Lead-acid Battery | 81V | 88.2V | 6A | CC20% | |
| VL8405L | 84V LiFePO4 Battery | 102.2V | 5A | CC5~8% | ||
| VL8405 | 84V Lead-acid Battery | 94.5V | 102.9V | 5A | CC20% | |
|
Note: customized input / output / plug type / connectors are available |
||||||
About Us
Found in 2008 as Danl Industrial Co., Limited in Hong Kong.
We have other two companies:
Danl New Energy Co., Limited (Hong Kong)
Guangzhou Danl Technology Co., LTD
15 years experience of designing and manufacturing switching-mode technology battery chargers.
10 years experience of exporting to USA, Euro countries and worldwide.
Specializing in customizing Smart Battery Chargers for battery & EV factories or wholesalers worldwide and providing high quality ODM & OEM service and charging solution.
Main Products Classified By Battery Type:
- Lithium Battery Chargers For LiFePO4, Li-ion, Li-polymer, LiMOn2 Batteries.
- Lead-Acid Battery Chargers For SLA, Deep cycle, Silicon and AGM Batteries.
Main Products Classified By EV Type:
E-Tool Battery Charger, E-Bike Battery Charger, E-Skateboard Battery Charger, E-Scooter Battery Charger, E-Motorcycle Battery Charger, E-Lawnmower Battery Charger, E-Golfcart Battery Charger, E-Floor Sweeper Battery Charger, AGV Battery Charger, E-Forklift Battery Charger, E-Car Battery Charger.
Battery Charger Main Output Power:
50W, 60W, 80W, 90W, 120W, 180W, 240W, 360W, 600W, 900W, 1000W, 1200W, 1500W, 2000W, 2500W.
Output Voltage & Current:
4.2V, 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 96V...188V with various charging currents from 0.5 amps to 100 amps.
As a smart battery chargers manufacturer, factory and wholesaler, Danl promises that we only supply high quality product, no cheap components, no struggling warranty policy, we guarantee 2 Years Full Warranty Policy and Free Replacement. Proud of our quality and best after service!
