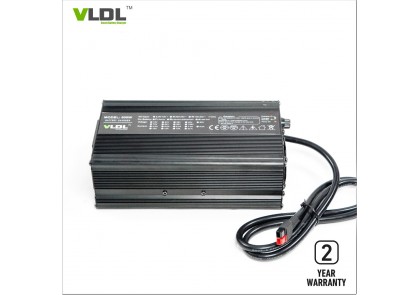

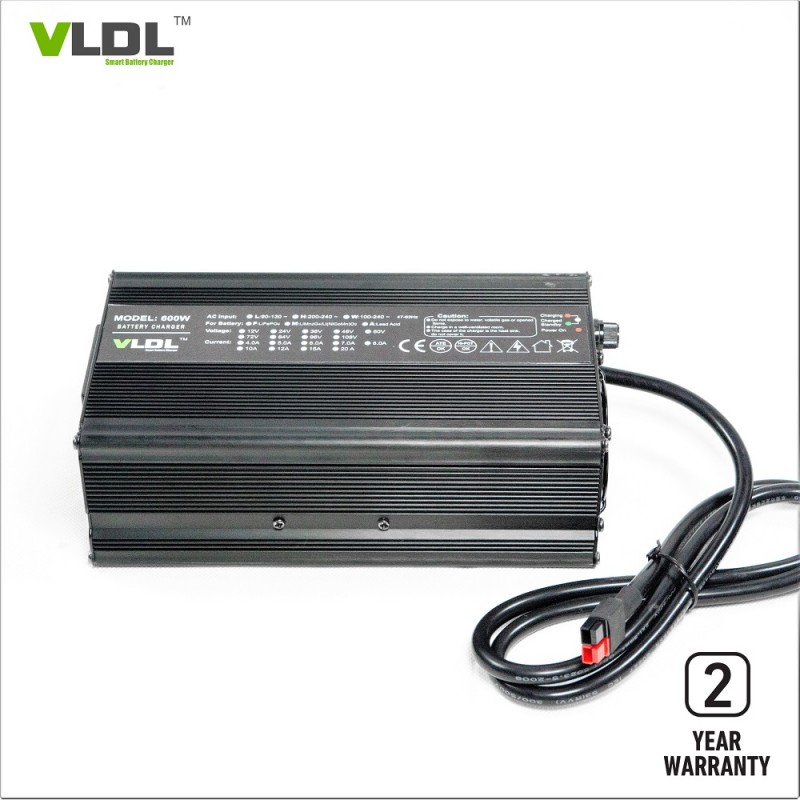

48V 10A E-motorcycles Battery Charger
Item No.: VL4810LPF
Output Power Series: 600W
Color Option: Silver or black
Applied to battery types: 48V LiFePO4, Li-ion, LiMnO2
Dimensions: 220 x 120 x 70 mm
AC input: wide 90 to 264Vac with PFC
Max charging: customized 54.6V or 58.4V
Charging method: Pre-charge, CC, CV
Warranty: 2 years
- Product Details
48V 10A E-motorcycles Battery Charger For LiFePO4/Li-ion/LiMnO2 Battery
Descriptions:
Designed for 48V lithium ion battery powered Electric Motorcycles. Input with PFC worldwide 110 to 230Vac and rated output voltatge is 48V 10A. Smart max charging voltage is 54.6 / 58.4V for li-ion type batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.
Specifications:
AC input voltage: 90 to 264Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 10Amps
Max charging voltage: 54.6V / 58.4V
Dimensions(LxWxH): 230 x 120 x 70 mm
Net weight: 2.5 KG
Housing: Aluminum
Color: silver or black
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU contolled
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Applications:
Charging 48V Lithium Battery Powerd Electric Motorcycles / Scooters.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connecotor by customer's applications.
| Output series: 600W PFC Size: 230×120×70 mm Net weight: 2.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
PFC AC Input: 90 - 264V
Frequency: 47~63HZ
|
VL1225L | 12V LiFePO4 Battery |
|
14.6V | 25A | CC5~8% |
| VL1225 | 12V Lead-acid Battery | 13.5V | 14.7V | 25A | CC20% | |
| VL1425 | 14V AGM Battery | 13.5V | 14.4V | 25A | CC20% | |
| VL1625L | 16V LiFePO4 Battery |
|
18.2V | 25A | CC5~8% | |
| VL2418LM | 24V Li-MnO2 Battery |
|
29.4V | 18A | CC5~8% | |
| VL2418L | 24V LiFePO4 Battery |
|
29.2V | 18A | CC5~8% | |
| VL2418 | 24V Lead-acid Battery | 27.6V | 29.4V | 18A | CC20% | |
| VL3612LM | 36V Li-MnO2 Battery |
|
42V | 12A | CC5~8% | |
| VL3612L | 36V LiFePO4 Battery |
|
43.8V | 12A | CC5~8% | |
| VL3612 | 36V Lead-acid Battery | 41.4V | 44.1V | 12A | CC20% | |
| VL4810LM | 48V Li-MnO2 Battery |
|
54.6V | 10A | CC5~8% | |
| VL4810L | 48V LiFePO4 Battery |
|
43.8V | 10A | CC5~8% | |
| VL4810 | 48V Lead-acid Battery | 55.2V | 58.8V | 10A | CC20% | |
| VL6008L | 60V LiFePO4 Battery |
|
73V | 8A | CC5~8% | |
| VL6008 | 60V Lead-acid Battery | 67.5V | 73.5V | 8A | CC20% | |
| VL7206L | 72V LiFePO4 Battery |
|
87.6V | 6A | CC5~8% | |
| VL7206 | 72V Lead-acid Battery | 81V | 88.2V | 6A | CC20% | |
|
|
VL8405L | 84V LiFePO4 Battery |
|
102.2V | 5A | CC5~8% |
|
|
VL8405 | 84V Lead-acid Battery | 94.5V | 102.9V | 5A | CC20% |
| Note: customized input / output / plug type / connectors are available. | ||||||
