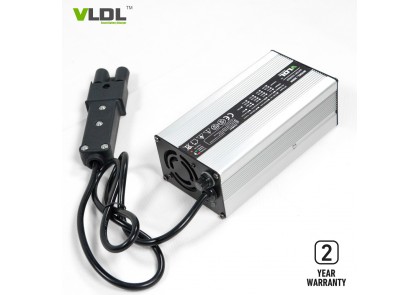

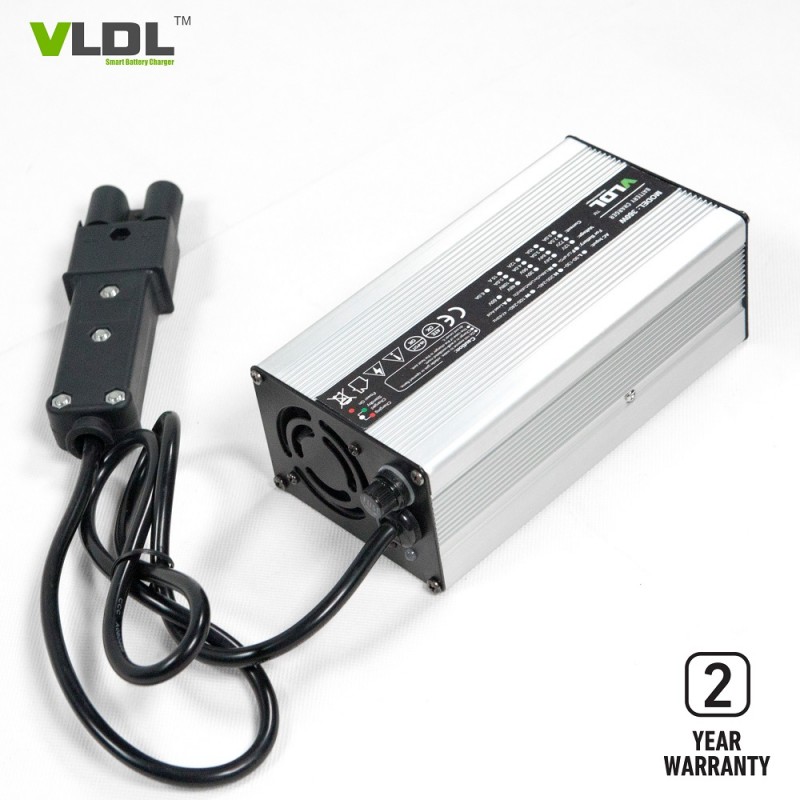

42V 8A Li-ion Battery Charger

42V 8A Li-ion Battery Charger

Brief Description:

Lithium ion Battery Charger 36 volts 8 amps, input with 110 or 230Vac and rated output voltage is 36V 8A. Smart max charging voltage is 42V for Li-ion type batteries or AGM batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating steps, this charger will charge your battery powered electric vehicles (bicycles, motorcycles and scooters) very fast and safe (automatic lockout when charging), with high efficiency and protect your battery life maximum. High quality, factory price and 2 years warranty.

Features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Input 110/ 230Vac, 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

Dimensions(LxWxH): 170 x 90 x 63 mm

Net weight: 1.5 KG

Max charging voltage(CV): 42 volt

Max output current (CC): 8 amps

Charging method: pre-charge, CC, CV

AC input voltage: 110 / 240Vac

AC input freq.: 50 / 60 Hz

AC plug: customized by user’s country

Output connector type: customized by applications

Enclosure: Aluminum
