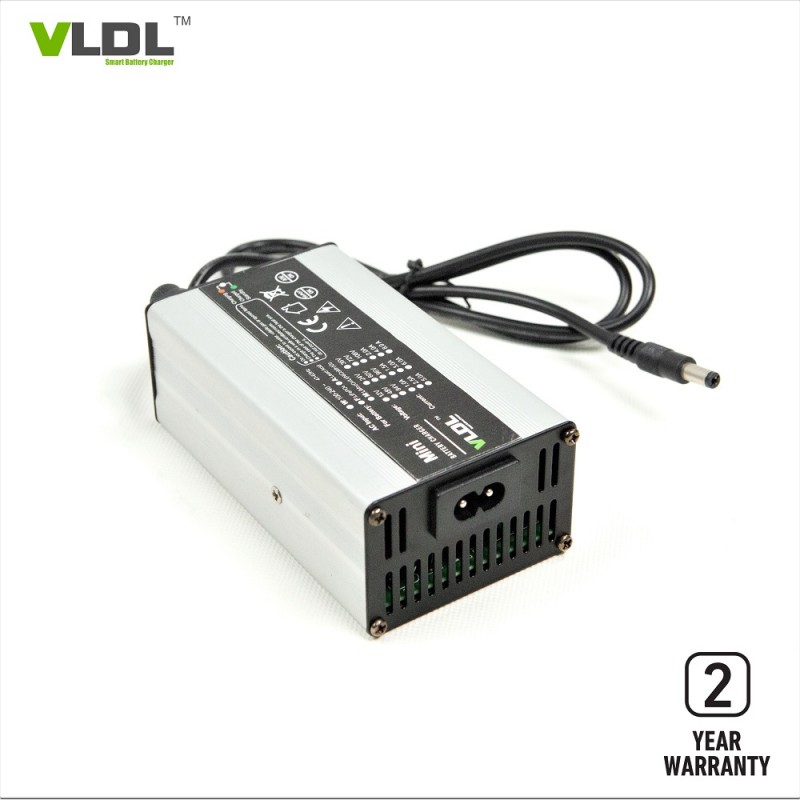

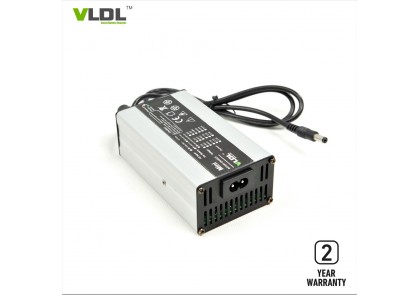

42V 2A E-bike Smart Charger

36V 42V 2A Electric Bike Smart Charger

Brief Description:

Electric bike smart charger 36 volts 2 amps, smart four steps charging with floating / trickle step. Designed for 36V lithium or lead acid battery powered electric bikes/bicyles, input with worldwide 110 to 230 Vac and rated output voltage is 36V 2A. Smart max charging voltage is 44.1V for lead acid type batteries (AGM, GEL, Deep cycle) and 42V 43.8V for lithium (LiFePO4, Li ion, Li MO2) batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating / trickle or automatic cut-off, this charger will charge your electric bikes/bicycles very fast, with high efficiency and protect your battery life maximum.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging / full).

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 88%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Technical Specs.:
1) Dimensions(LxWxH): 120 x 69 x 45 mm
2) Net weight: 0.6 KG
3) Max charging voltage(CV): 42 volts
4) Floating voltage: customized
5) Max output current (CC): 2 amps
6) Charging method: pre-charge, CC, CV
7) AC input voltage: 110 - 240Vac worldwide
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
