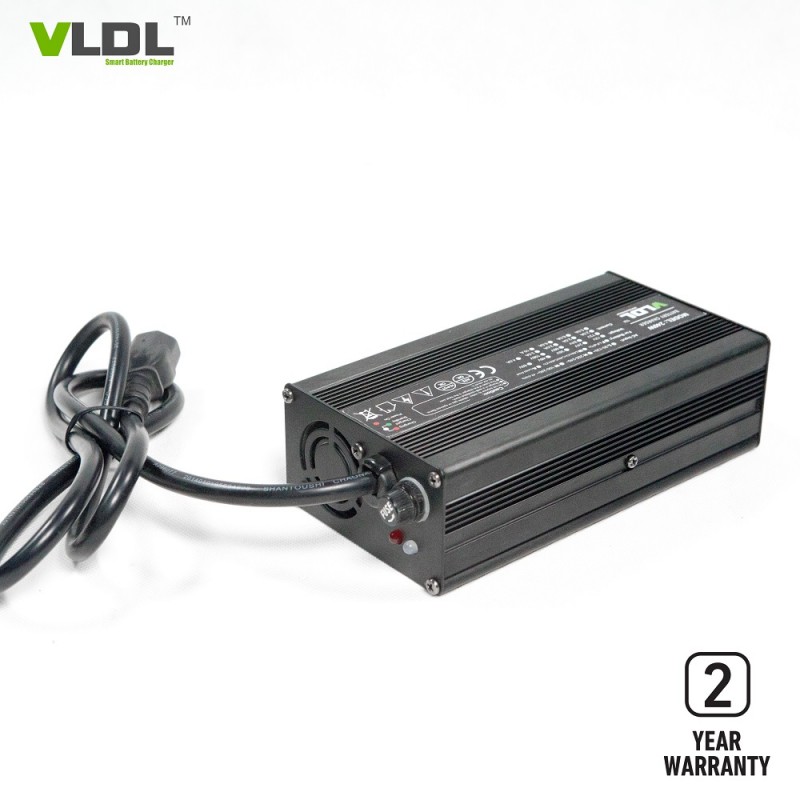

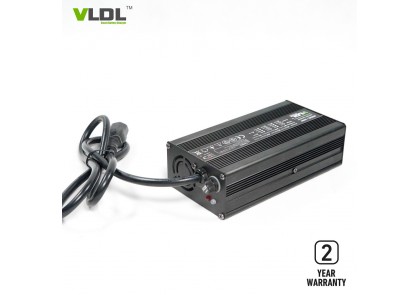

4.2V 15A Single Cell Battery Charger

4.2V 15A Single Cell Lithium Battery Charger

Brief Description:
4.2V 15Amps intelligent battery charger is designed for single lithium battery, input with worldwide 110 to 230Vac. Smart max charging voltage is 3.65V and 4.2V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.

Technical Specs.:

1) Dimensions(LxWxH): 170 x 90 x 50 mm

2) Net weight: 1.0 KG

3) Max charging voltage(CV): 4.2 volt

4) Floating voltage: /

5) Max output current (CC): 15 amps

6) Charging method: CC, CV

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) Enclosure: Aluminum

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.
