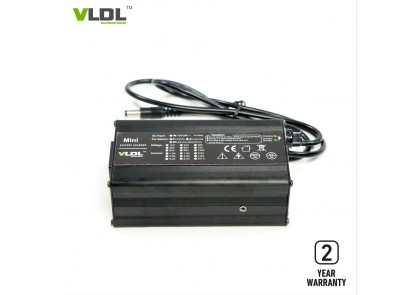

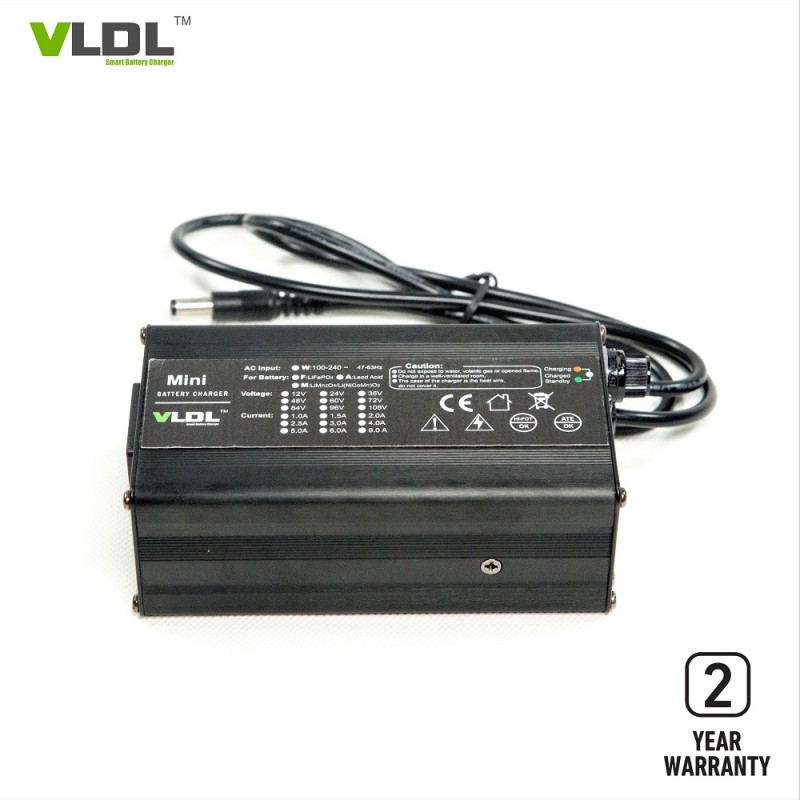

40V 2A Lawn Mower Smart Battery Charger

40 volt 2 amps Li battery charger for electric lawn mower, mini type with light weight aluminum housing, 110 to 240 wide input

Brief Description:

40 volt 2 amps li battery charger are designed for 40V lithium ion powered Lawn Mower, mini type with light weight aluminium housing. Universal 110 - 230 vac input. Black or silver aluminum casing. Max charging voltage is 40V for lithium ion batteries. Applied to charge lithium battery powered electric lawn mower.
As a swtiching mode technology battery charger, it has small size and light weight, much portable for user. This charger has intelligent 4 steps charging method and charge your lithium battery types including LiFePO4, Li ion, LiMO2 batteries with fast speed and high efficiency. It is a fully automatic charging charger, just power on and connect it to your battery and then leave it alone.

Features:

◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz ~ 60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 1 LED: LED Red-Charging, LED Green-Fully Charged or Stand by.
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 120 x 69 x 45 mm
2) Net weight: 0.6 KG
3) Max charging voltage(CV): 40 volt
4) Floating voltage: customized
5) Max output current (CC): 2 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 240Vac worldwide
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
