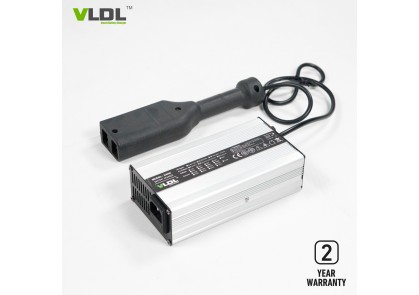

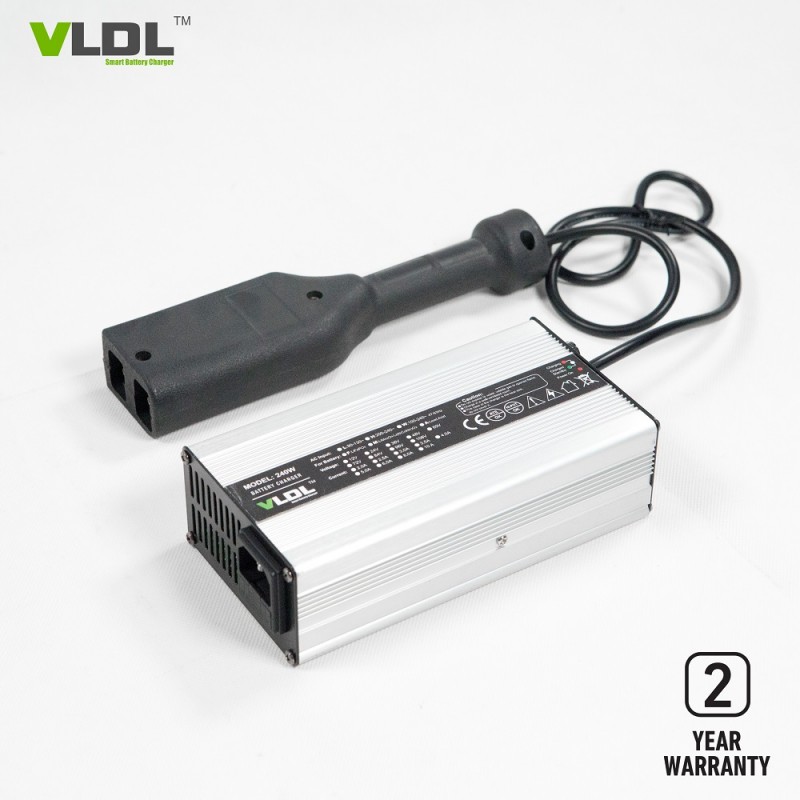

36V(42V) 5A Li Battery Charger
Item No.: VL3605L
Case material: Aluminum
Input voltage: 110V or 230V
Rated output: 36V 5A
Max charging: 42V or customzied
Charging method: auto. CC, CV or Cut-off
Applied to battery types: 36V LiFePO4, Li-ion battery
Size: 170 x 90 x 50 mm
Net weight: 1.0kg
Warranty: 2 years
- Product Details
China 36V (42V) 5A Lithium Battery Charger, high quality battery charger manufacturer and factory.
Input 110/230Vac, max 42V 5Amps smart charging: pre-charging, CC, CV and Cut-off
Portable 36V 5A Smart Lithium Battery Charger High Efficiency For Li Battery
36V 5Amps intelligent battery charger is designed for lithium or lead acid battery, input with worldwide 110 to 230Vac and rated output voltatge is 36 Volt 5 amps. Smart max charging voltage is 44.1V for lead acid type batteries and 42V for Li-ion batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.
Features:
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 88%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
| Output series: 240W Size: 170×90×50 mm Net weight: 1.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 85~264V
Frequency: 47~63HZ
|
VL1210L | 12V LiFePO4 Battery |
|
14.6V | 10A | CC5~8% |
| VL1210 | 12V Lead-acid Battery | 13.5V | 14.7V | 10A | CC20% | |
| VL2407LM | 24V Li-MnO2 Battery |
|
29.4V | 7A | CC5~8% | |
| VL2407L | 24V LiFePO4 Battery |
|
29.2V | 7A | CC5~8% | |
| VL2407 | 24V Lead-acid Battery | 27.6V | 29.4V | 7A | CC20% | |
| VL3605LM | 36V Li-MnO2 Battery |
|
42V | 5A | CC5~8% | |
| VL3605L | 36V LiFePO4 Battery |
|
43.8V | 5A | CC5~8% | |
| VL3605 | 36V Lead-acid Battery | 41.4V | 44.1V | 5A | CC20% | |
| VL4804LM | 48V Li-MnO2 Battery |
|
54.6V | 4A | CC5~8% | |
| VL4804L | 48V LiFePO4 Battery |
|
43.8V | 4A | CC5~8% | |
| VL4804 | 48V Lead-acid Battery | 55.2V | 58.8V | 4A | CC20% | |
| VL6003L | 60V LiFePO4 Battery |
|
73V | 3A | CC5~8% | |
| VL6003 | 60V Lead-acid Battery | 67.5V | 73.5V | 3A | CC20% | |
| VL72025L | 72V LiFePO4 Battery |
|
87.6V | 2.5A | CC5~8% | |
| VL72025 | 72V Lead-acid Battery | 81V | 88.2V | 2.5A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
