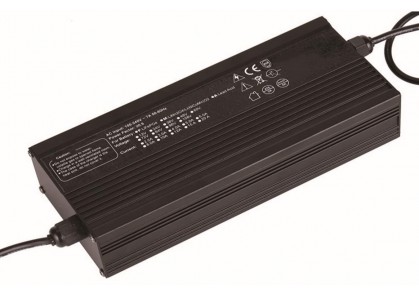

36V 6A Waterproof Battery Charger

36V 6A Waterproof / Marine Lithium Battery Charger

Brief Descriptions:

Waterpoof / Marine Battery Charger 36V 6A with IP65 / IP66 rate waterproof, is designed for lithium-ion, LiFePO4 battery powered electric vehicles or marine appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 36V 6A. Smart max charging voltage is 42V / 43.8V for Li-ion / LiFePO4 batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110-230Vac (90~264Vac) with PFC, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 92%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

1) Dimensions(LxWxH): 220 × 93 × 49 MM

2) Net weight: 1.5 KG

3) Max charging voltage(CV): 42 / 43.8 volt

4) Floating voltage: /

5) Max output current (CC): 6 amps

6) Charging method: automtaic Pre-charge, CC, CV, Floating

7) AC input voltage: 110-230 Vac universal

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, AU, UK, Euro

10) Output connector type: Clips, Anderson

11) Enclosure: Aluminum

12) Waterproof rate: IP65 / IP66

300W waterproof charger    Size: 220×93×49 mm          Net weight: 1.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
PFC AC Input: 110 - 230V Frequency: 47~63HZ	VL1215LWP	12V LiFePO4 Battery		14.6V	15A	CC5~8%
	VL1215WP	12V Lead-acid Battery	13.5V	14.7V	15A	CC20%
	VL1415WP	14V AGM Battery	13.5V	14.4V	15A	CC20%
	VL1615LWP	16V LiFePO4 Battery		18.2V	15A	CC5~8%
	VL2410LMWP	24V Li-MnO2 Battery		29.4V	10A	CC5~8%
	VL2410LWP	24V LiFePO4 Battery		29.2V	10A	CC5~8%
	VL2410WP	24V Lead-acid Battery	27.6V	29.4V	10A	CC20%
	VL3606LMWP	36V Li-MnO2 Battery		42V	6A	CC5~8%
	VL3606LWP	36V LiFePO4 Battery		43.8V	6A	CC5~8%
	VL3606WP	36V Lead-acid Battery	41.4V	44.1V	6A	CC20%
	VL4805LMWP	48V Li-MnO2 Battery		54.6V	5A	CC5~8%
	VL4805LWP	48V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL4805WP	48V Lead-acid Battery	55.2V	58.8V	5A	CC20%
	VL6004LWP	60V LiFePO4 Battery		73V	4A	CC5~8%
	VL6004WP	60V Lead-acid Battery	67.5V	73.5V	4A	CC20%
	VL7203LWP	72V Lithium Battery		87.6V	4A	CC 5-8%
	VL7203WP	72V Lead-acid Battery	82.8V	88.2V	4A	CC 20%
