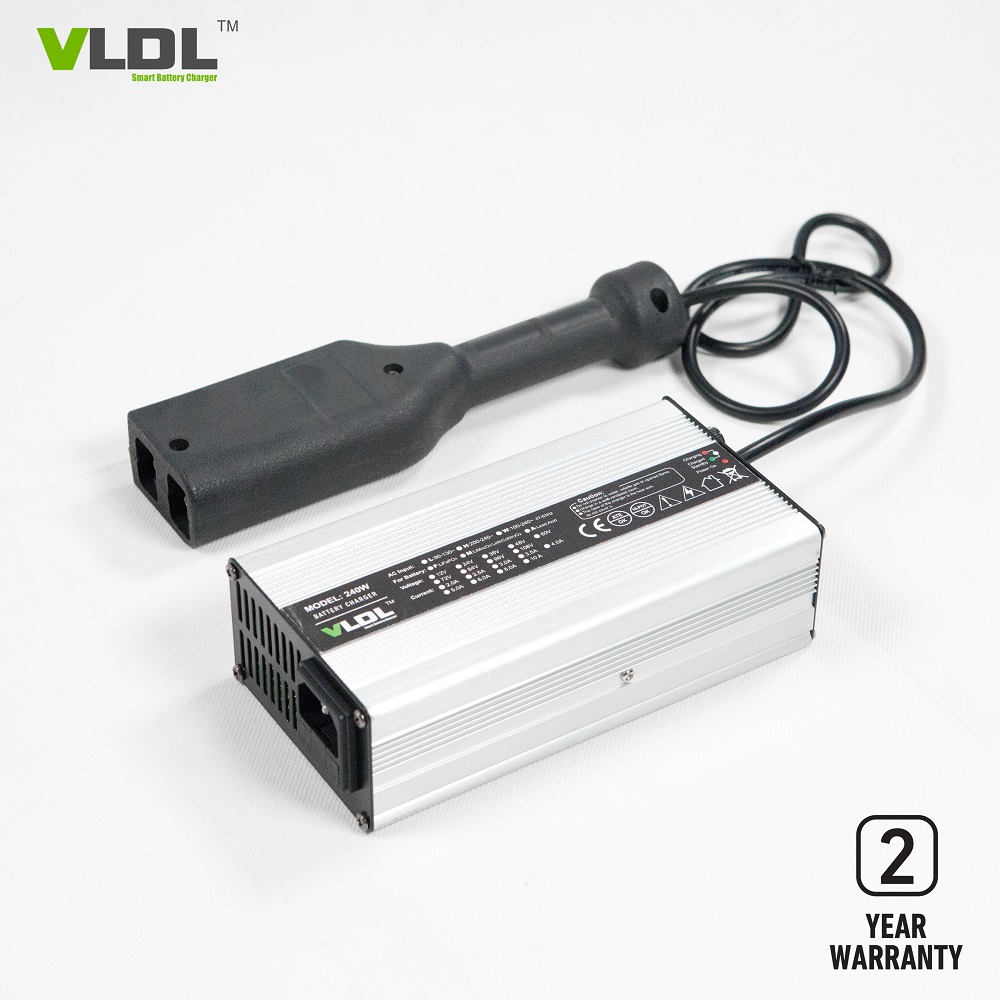

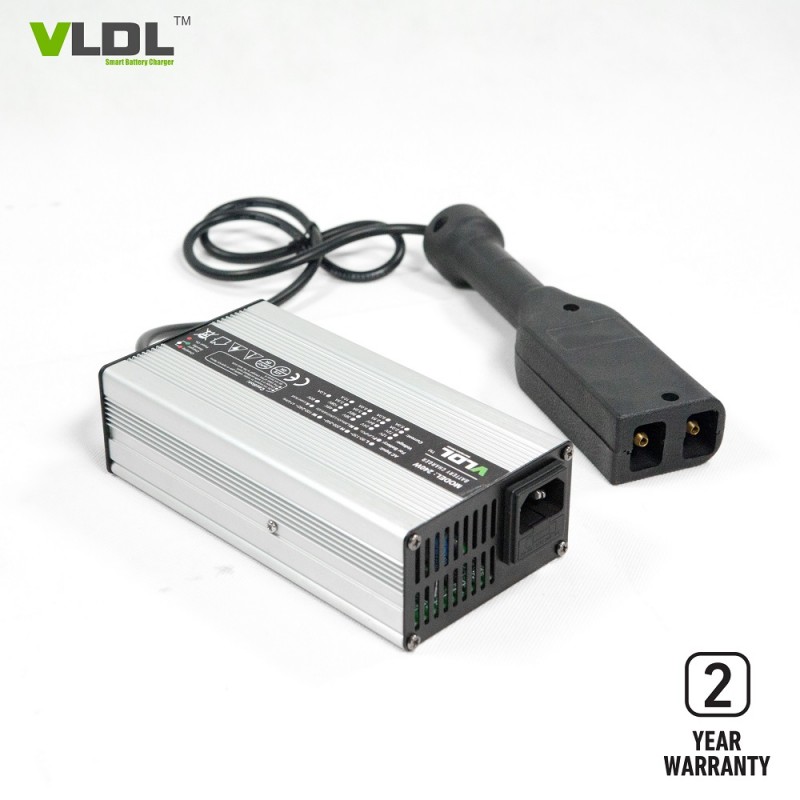

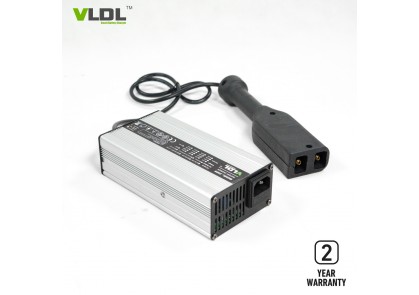

36V 5A EZGO Golfcart Battery Charger
Item number: VL3605L
Dimensions(LxWxH): 170 x 90 x 50 mm
Net weight: 1.2 KG
Max charging voltage(CV): 42Vdc
Max output current (CC): 5 amps
Charging method: Pre-charge, CC, CV
AC input voltage: single 110V or 230V
AC input freq.: 50 / 60 Hz
AC plug: US, UK, EU, India, AU etc.
Output connector type: XLR, Anderson, Clips, RCA etc.
Enclosure: Aluminum, black or silver
Warranty: 2 Years
- Product Details
36V 5A EZGO Golfcart Battery Charger, Max 42V CC CV Charging, 2 Years Warranty
Brief Descriptions:
This 36V 5A smart battery charger is designed for 36V lithium battery powered electric EZGO golfcarts. It can charge 36V LiFePO4, Li-ion, LiMnO2 types batteries. Smart charging with Pre-charge, CC, CV and floating or automatic cut-off method. With max 42Volt 4 Amps fast charging and multi-protections.
Technical Specs.:
1) Dimensions(LxWxH): 170 x 90 x 50 mm
2) Net weight: 1.2 KG
3) Max charging voltage(CV): 42 Vdc
4) Floating voltage: /
5) Max output current (CC): 5 amps
6) Charging method: Pre-charge, CC, CV
7) AC input voltage: 110 or 240Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: US, UK, EU, India, AU etc.
10) Output connector type: XLR, Anderson, Clips, RCA etc.
11) Enclosure: Aluminum
Features
1) Optional charging methods: LiFePO4, Li-ion, LiMo2, AGM, GEL, Flooded.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
| Output series: 240W Size: 170×90×50 mm Net weight: 1.2 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 85~264V
Frequency: 47~63HZ
|
VL1210L | 12V LiFePO4 Battery | 14.6V | 10A | CC5~8% | |
| VL1210 | 12V Lead-acid Battery | 13.5V | 14.7V | 10A | CC20% | |
| VL2407LM | 24V Li-MnO2 Battery | 29.4V | 7A | CC5~8% | ||
| VL2407L | 24V LiFePO4 Battery | 29.2V | 7A | CC5~8% | ||
| VL2407 | 24V Lead-acid Battery | 27.6V | 29.4V | 7A | CC20% | |
| VL3605LM | 36V Li-MnO2 Battery | 42V | 5A | CC5~8% | ||
| VL3605L | 36V LiFePO4 Battery | 43.8V | 5A | CC5~8% | ||
| VL3605 | 36V Lead-acid Battery | 41.4V | 44.1V | 5A | CC20% | |
| VL4804LM | 48V Li-MnO2 Battery | 54.6V | 4A | CC5~8% | ||
| VL4804L | 48V LiFePO4 Battery | 43.8V | 4A | CC5~8% | ||
| VL4804 | 48V Lead-acid Battery | 55.2V | 58.8V | 4A | CC20% | |
| VL6003L | 60V LiFePO4 Battery | 73V | 3A | CC5~8% | ||
| VL6003 | 60V Lead-acid Battery | 67.5V | 73.5V | 3A | CC20% | |
| VL72025L | 72V LiFePO4 Battery | 87.6V | 2.5A | CC5~8% | ||
| VL72025 | 72V Lead-acid Battery | 81V | 88.2V | 2.5A | CC20% | |
|
Note: customized input / output / plug type / connectors are available. |
||||||
