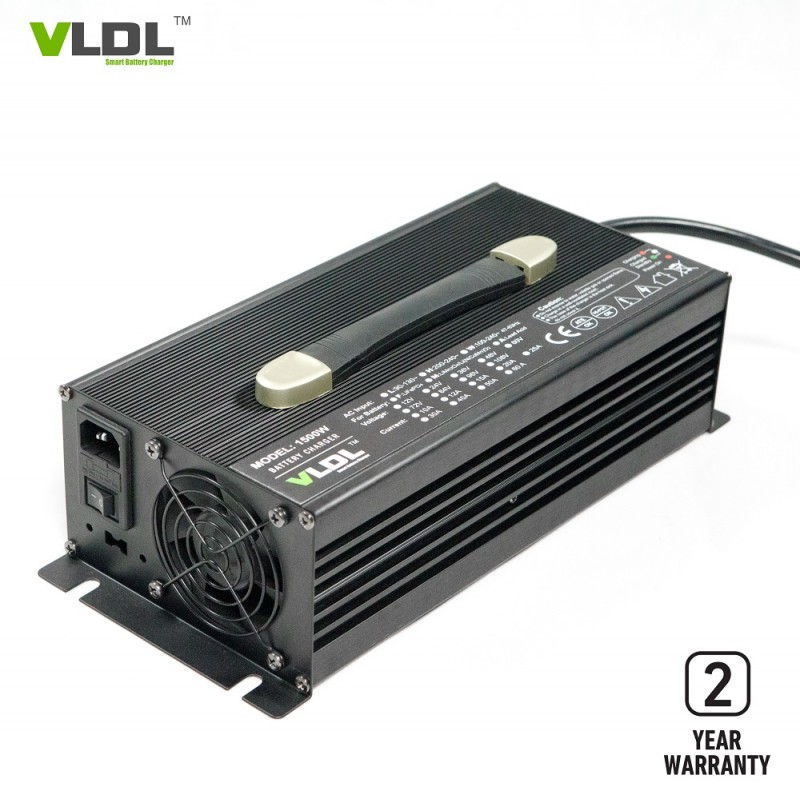

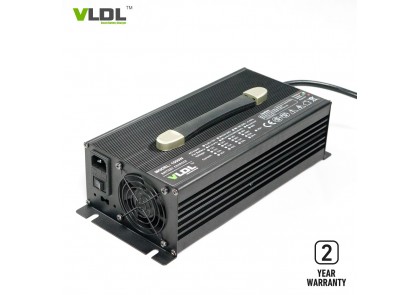

36V 42V 40A Li Battery Charger

36V 40A Smart Battery Charger For Lithium Battery

Brief Description:

36V 40Amps intelligent lithium battery charger is designed for LiFePO4, Li-ion, LiMnO2 battery, input with single 110V or 230Vac and rated output voltatge is 36 Volt 40 amps. Smart max charging voltage is 44.1V for lead acid type batteries and 42V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110V or 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 90%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 330 x 150 x 90 mm

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 42 or 43.8 volts

4) Floating voltage: /

5) Max output current (CC): 40 amps

6) Charging method: CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum
