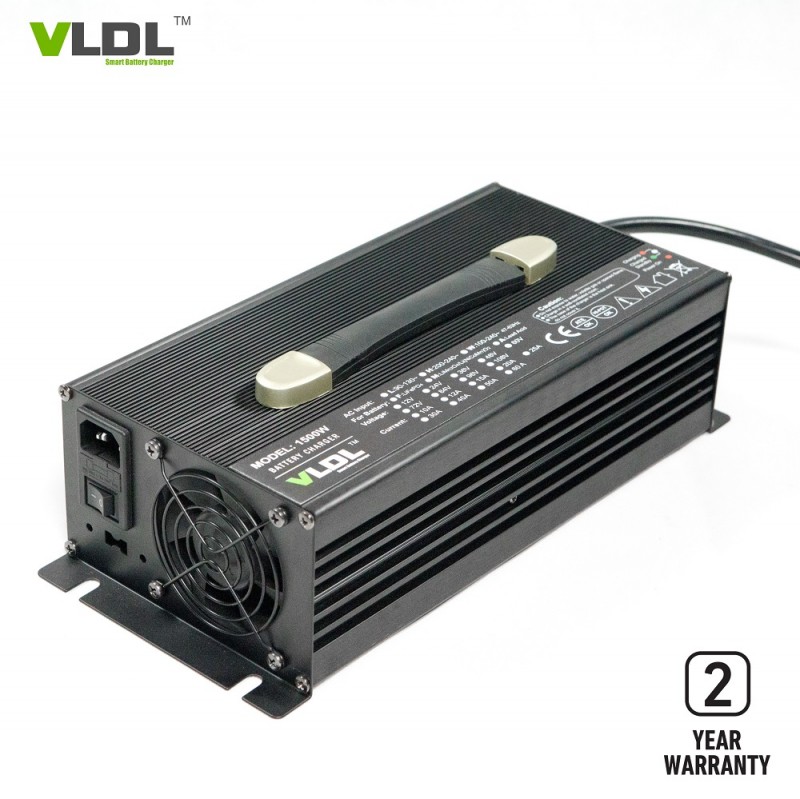

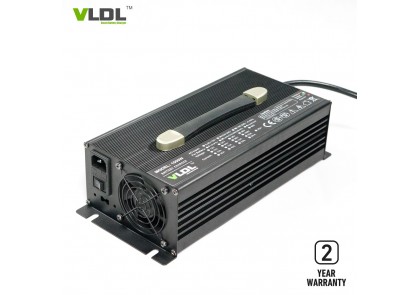

36V 40A Lead Acid Battery Charger

36V 40A Smart Battery Charger For Lead-acid Battery

Brief Description:

36V 40Amps intelligent lead acid battery charger is designed for SLA, AGM, GEL battery, input with single 110V or 230Vac and rated output voltatge is 36 Volt 40 amps. Smart max charging voltage is 44.1V for lead acid type batteries and 42V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110V or 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 90%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 330 x 150 x 90 mm

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 44.1 volts

4) Floating voltage: 41.4V

5) Max output current (CC): 40 amps

6) Charging method: CC, CV, floatin

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Output series: 2,000W      Size: 330×150×90 mm      Net weight: 6.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V   Frequency: 47~63HZ	VL12100L	12V LiFePO4 Battery		14.6V	100A	CC5~8%
	VL12100	12V Lead-acid Battery	13.5V	14.7V	100A	CC20%
	VL14100	14V AGM Battery	13.5V	14.4V	100A	CC20%
	VL16100L	16V LiFePO4 Battery		18.2V	100A	CC5~8%
	VL2460LM	24V Li-MnO2 Battery		29.4V	60A	CC5~8%
	VL2460L	24V LiFePO4 Battery		29.2V	60A	CC5~8%
	VL2460	24V Lead-acid Battery	27.6V	29.4V	60A	CC20%
	VL3640LM	36V Li-MnO2 Battery		42V	40A	CC5~8%
	VL3640L	36V LiFePO4 Battery		43.8V	40A	CC5~8%
	VL3640	36V Lead-acid Battery	41.4V	44.1V	40A	CC20%
	VL4830LM	48V Li-MnO2 Battery		54.6V	30A	CC5~8%
	VL4830L	48V LiFePO4 Battery		43.8V	30A	CC5~8%
	VL4830	48V Lead-acid Battery	55.2V	58.8V	30A	CC20%
	VL6025L	60V LiFePO4 Battery		73V	25A	CC5~8%
	VL6025	60V Lead-acid Battery	67.5V	73.5V	25A	CC20%
	VL7220L	72V LiFePO4 Battery		87.6V	20A	CC5~8%
	VL7220	72V Lead-acid Battery	81V	88.2V	20A	CC20%
	VL8418L	84V LiFePO4 Battery		102.2V	18A	CC5~8%
	VL8418	84V Lead-acid Battery	94.5V	102.9V	18A	CC20%
	VL9616L	96V LiFePO4 Battery		116.8V	16A	CC5~8%
	VL9616	96V Lead-acid Battery	108V	117.6V	16A	CC20%
Note: customized input / output / plug type / connectors are available.
