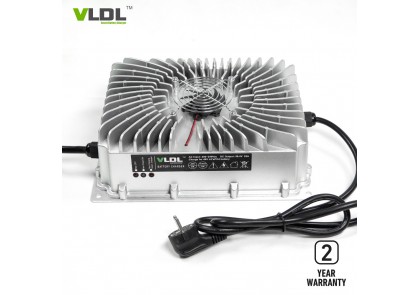

36V 30A Waterproof Battery Charger
Item No.: VL3630LWP
Dimension: 310*230*101 mm
N.W: 8.0 KG
Input voltage: wide 90~264Vac
Case material: sealed aluminum
WaterProof rate: IP65
Output rated: 36V 30A
Max charging: 42V / 43.8 / 44.1V customized
Applied to battery Types: 36V Lead acid or Lithium Battery
Smart Charging: Auto. Pre-charge, CC and CV
- Product Details
Marine / Waterproof Battery Charger 36V 30A
Brief Descriptions:
Marine Battery Charger 36V 30A with IP65 rate waterproof, is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or boat appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 36V 30A. Max customized 42 / 43.8V for Li-ion batteries or 44.1V for lead-acid batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.
2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 95%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable, on-board.
Technical Specs.:
Dimensions(LxWxH): 310 × 230 × 101 MM
Net weight: 8.0 KG
Max charging voltage(CV): 42 / 43.8 / 44.1volt (customized)
Max output current (CC): 30 amps
Charging method: Pre-charge, CC, CV
AC input voltage: 90-264 Vac universal
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum
Waterproof rate: IP65
| 1,500W waterproof charger Size: 310×230×101 mm Net weight: 8.0 KG | |||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching | |
|
PFC AC Input: 90 - 264V
Frequency: 47~63HZ
|
VL1260LWP | 12V LiFePO4 Battery |
|
14.6V | 60A | CC5~8% | |
| VL1260WP | 12V Lead-acid Battery | 13.5V | 14.7V | 60A | CC20% | ||
| VL1460WP | 14V AGM Battery | 13.5V | 14.4V | 60A | CC20% | ||
| VL1660WPL | 16V LiFePO4 Battery |
|
18.2V | 60A | CC5~8% | ||
| VL2445LMWP | 24V Li-MnO2 Battery |
|
29.4V | 45A | CC5~8% | ||
| VL2445LWP | 24V LiFePO4 Battery |
|
29.2V | 45A | CC5~8% | ||
| VL2445WP | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% | ||
| VL3630LMWP | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | ||
| VL3630LWP | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | ||
| VL3630WP | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | ||
| VL4825LMWP | 48V Li-MnO2 Battery |
|
54.6V | 25A | CC5~8% | ||
| VL4825LWP | 48V LiFePO4 Battery |
|
43.8V | 25A | CC5~8% | ||
| VL4825WP | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | ||
| VL6018LWP | 60V LiFePO4 Battery |
|
73V | 20A | CC5~8% | ||
| VL6018WP | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | ||
| VL7215LWP | 72V LiFePO4 Battery |
|
87.6V | 15A | CC5~8% | ||
| VL7215WP | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | ||
| VL8413LWP | 84V LiFePO4 Battery |
|
102.2V | 13A | CC5~8% | ||
| VL8413WP | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% | ||
| VL9612LWP | 96V LiFePO4 Battery |
|
116.8V | 12A | CC5~8% | ||
| VL9612WP | 96V Lead-acid Battery | 108V | 117.6V | 12A | CC20% | ||
|
Note: customized input / output / plug type / connectors are available. |
|||||||
This 36volts 30 amps Waterproof Battery Charger is designed for charging electric vehicles which powered by 36V lithium batteries. With water-resit rate IP65 and fully sealed designed without fan cooling. Aluminum casing, light weight, dust-resit and portable. Net weigth: 8 KG, dimensions (L*W*H): 310*230*101 mm.
Input voltage is worldwide 110-230 Vac, PFC circuit, frequency 50/60 Hz. You can plug it anywhere in the world with no worry for connecting to the wrong grid voltage.
Rated output is 36 Vdc and 30 Amps, max charging voltage is 42 volts or 43.8 volts by your lithium battery types, say 48V LiMOn2, LiFePO4, Li-ion batteries.
Intelligent 4-stage charging method will protect your expensive Li batteries. Our advanced SMPS (Switching Mode Power Supply) technology and MCU controlled makes this charger having automatic smart 4 steps charging: Pre-charge, CC (constant current), CV (constant voltage), Auto cut-off. It can detect battery status then begin to charging accordingly. User just connect our charger to their battery, whatever the battery discharging state is, it can charge the 48V lithium batteries fully with the fastest speed. Fast, safe, on-board, portable and smart.
Welcome you to be one of our wholesale agent at your local. We will provide you our factory price, high quality and best and fast after-service. If you can't found suitable chargers on our web, please contact and we will give you our fully charging solution for your applications or projects.
