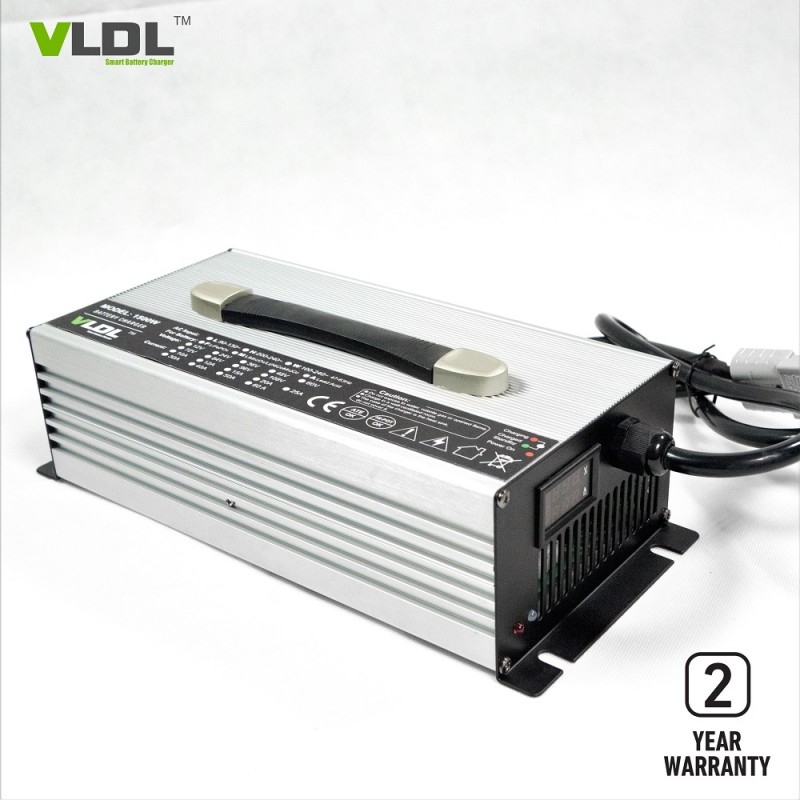

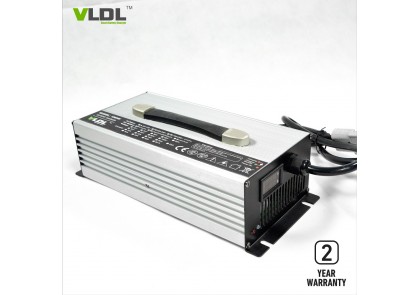

36V 30A Li Battery Charger

36V 30A Lithium Battery Charger, Automatic CC CV Charging, Aluminum Case

Brief Description:

36V 30Amps intelligent lithium battery charger is designed for LiFePO4, Li-ion, LiMnO2 battery, input with single 110V or 230Vac and rated output voltatge is 36 Volt 30 amps. Smart max charging voltage is 44.1V for lead acid type batteries and 42V / 43.8V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 88%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 300 x 150 x 90 mm

2) Net weight: 5.5 KG

3) Max charging voltage(CV): 42 / 43.8 volts

4) Floating voltage: /

5) Max output current (CC): 30 amps

6) Charging method: Pre-charge, CC, CV

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Output series: 1,500W      Size: 300×150×90 mm       Net weight: 5.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL1280L	12V LiFePO4 Battery		14.6V	80A	CC5~8%
	VL1280	12V Lead-acid Battery	13.5V	14.7V	80A	CC20%
	VL1480	14V AGM Battery	13.5V	14.4V	80A	CC20%
	VL1680L	16V LiFePO4 Battery		18.2V	80A	CC5~8%
	VL2445LM	24V Li-MnO2 Battery		29.4V	45A	CC5~8%
	VL2445L	24V LiFePO4 Battery		29.2V	45A	CC5~8%
	VL2445	24V Lead-acid Battery	27.6V	29.4V	45A	CC20%
	VL3630LM	36V Li-MnO2 Battery		42V	30A	CC5~8%
	VL3630L	36V LiFePO4 Battery		43.8V	30A	CC5~8%
	VL3630	36V Lead-acid Battery	41.4V	44.1V	30A	CC20%
	VL4825LM	48V Li-MnO2 Battery		54.6V	25A	CC5~8%
	VL4825L	48V LiFePO4 Battery		43.8V	25A	CC5~8%
	VL4825	48V Lead-acid Battery	55.2V	58.8V	25A	CC20%
	VL6020L	60V LiFePO4 Battery		73V	20A	CC5~8%
	VL6020	60V Lead-acid Battery	67.5V	73.5V	20A	CC20%
	VL7215L	72V LiFePO4 Battery		87.6V	15A	CC5~8%
	VL7215	72V Lead-acid Battery	81V	88.2V	15A	CC20%
	VL8413L	84V LiFePO4 Battery		102.2V	13A	CC5~8%
	VL8413	84V Lead-acid Battery	94.5V	102.9V	13A	CC20%
	VL9612L	96V LiFePO4 Battery		116.8V	12A	CC5~8%
	VL9612	96V Lead-acid Battery	108V	117.6V	12A	CC20%
Note: customized input / output / plug type / connectors are available.
