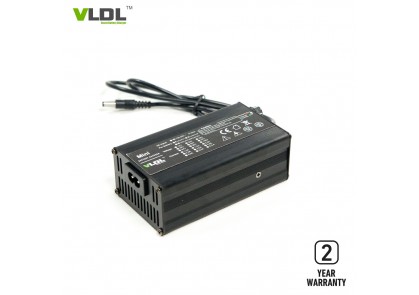

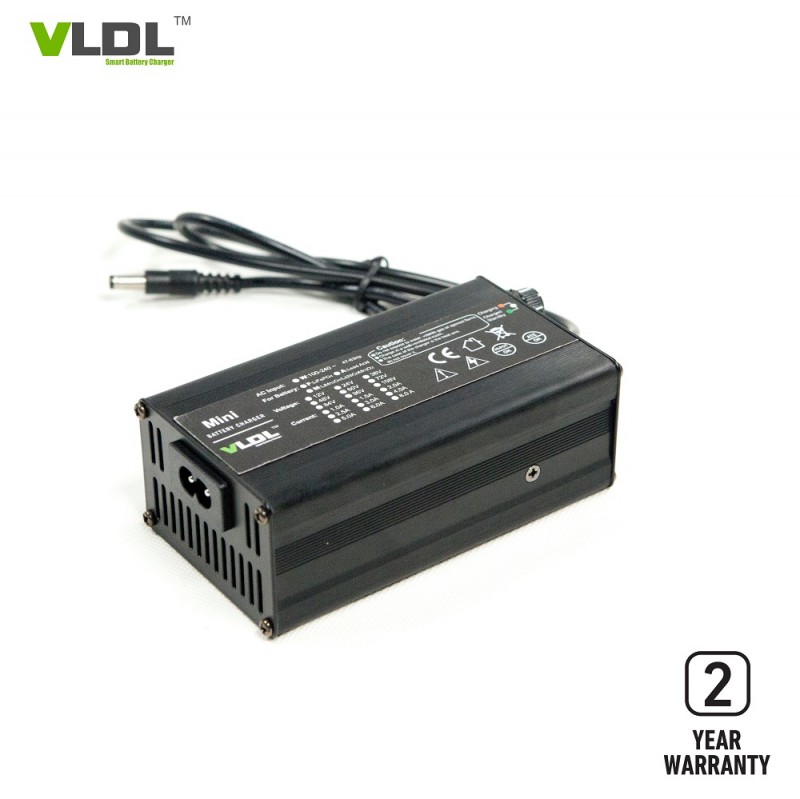

36V 2A SLA Battery Charger
Color Option: Silver / Black
Applied to battery types: 36V Lead-acid Battery
Charging Method: Pre-charge, CC, CV and Floating
Output power series: 120W
Size: 120 x 69 x 45 mm
Input voltaeg: 90~264Vac
Max charging: 44.1V 2amps
Warranty: 2 Years
- Product Details
36V 2A Smart Battery Charger, Electric Scooter Charger
Descriptions:
Lead-acid battery charger 36V 2A was designed for Electric Mobility / Scooters. Totally micro-processor controlled and automatic charging by battery's state. Max charging voltage can be set at 43.8V for LIthium battery types. As a 15 years battery charger factory, Danl gurrantees 2 years warranty for all of our chargers, high quality and in 24 hours response after-service. Bring safty and best service to our customers.
Specifications:
AC input voltage: worldwide 110-230Vac
AC input freq.: 50 / 60 Hz
Rated output: 36V 2Amps
Max charging voltage: 44.1V
Dimensions(LxWxH): 120 x 69 x 45 mm
Net weight: 0.6 KG
Housing: Aluminum
Color: Silver or Black
Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.
Smart and Automatic 4 Steps Charging.
Aluminum Casing, Light Weight, Portable.
High Quality, Factory Price.
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Applications:
Automatic Charging For 36V Lead-acid, AGM, GEL Batteries.
Suit for E-bikes, E-mobility, E-scooters.
Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
Related Models of 120W Charger:
| Output series: 120W Mini Size: 120×69×45 mm Net weight: 0.6 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 85~264V
Frequency: 47~63HZ
|
VL1206L | 12V LiFePO4 Battery |
|
14.6V | 6A | CC5~8% |
| VL1206 | 12V Lead-acid Battery | 13.5V | 14.7V | 6A | CC20% | |
| VL2404LM | 24V Li-MnO2 Battery |
|
29.4V | 4A | CC5~8% | |
| VL2404 | 24V Lead-acid Battery | 27.6V | 29.4V | 4A | CC20% | |
| VL3603L | 36V Li-MnO2 Battery |
|
42V | 3A | CC5~8% | |
| VL3602 | 36V Lead-acid Battery | 41.4V | 44.1V | 2A | CC20% | |
| VL4802LM | 48V Li-MnO2 Battery |
|
54.6V | 2A | CC5~8% | |
| VL4802 | 48V Lead-acid Battery | 55.2V | 58.8V | 2A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
