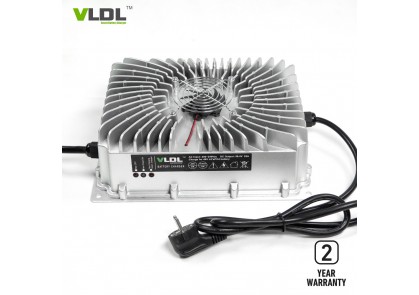

36V 25A Marine Battery Charger

Marine Battery Charger 36V 25A, wide 90~264V input, IP65

Brief Descriptions:

Marine Battery Charger 36V 25A with IP65 rate waterproof, is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or boat appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 36V 25A. Smart max charging voltage is 44.1V for lead acid (sealed, AGM) type batteries and 42V / 43.8V for Li-ion / LiFePO4 batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

1) Dimensions(LxWxH): 310 × 230 × 101 MM

2) Net weight: 8.2 KG

3) Max charging voltage(CV): 42 / 43.8 volt

4) Floating voltage: /

5) Max output current (CC): 25 amps

6) Charging method: Pre-charge, CC, CV

7) AC input voltage: 90-264 Vac universal

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum

12) Waterproof rate: IP65

1,500W waterproof charger        Size: 310×230×101 mm        Net weight: 6.0 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
PFC AC Input: 90 - 264V Frequency: 47~63HZ	VL1280WPL	12V LiFePO4 Battery		14.6V	80A	CC5~8%
	VL1280WP	12V Lead-acid Battery	13.5V	14.7V	80A	CC20%
	VL1480WP	14V AGM Battery	13.5V	14.4V	80A	CC20%
	VL1680WPL	16V LiFePO4 Battery		18.2V	80A	CC5~8%
	VL2445WPLM	24V Li-MnO2 Battery		29.4V	45A	CC5~8%
	VL2445L	24V LiFePO4 Battery		29.2V	45A	CC5~8%
	VL2445	24V Lead-acid Battery	27.6V	29.4V	45A	CC20%
	VL3630WPLM	36V Li-MnO2 Battery		42V	30A	CC5~8%
	VL3630WPL	36V LiFePO4 Battery		43.8V	30A	CC5~8%
	VL3630WP	36V Lead-acid Battery	41.4V	44.1V	30A	CC20%
	VL4825WPLM	48V Li-MnO2 Battery		54.6V	25A	CC5~8%
	VL4825WPL	48V LiFePO4 Battery		43.8V	25A	CC5~8%
	VL4825WP	48V Lead-acid Battery	55.2V	58.8V	25A	CC20%
	VL6020WPL	60V LiFePO4 Battery		73V	20A	CC5~8%
	VL6020WP	60V Lead-acid Battery	67.5V	73.5V	20A	CC20%
	VL7215WPL	72V LiFePO4 Battery		87.6V	15A	CC5~8%
	VL7215WP	72V Lead-acid Battery	81V	88.2V	15A	CC20%
	VL8413WPL	84V LiFePO4 Battery		102.2V	13A	CC5~8%
	VL8413WP	84V Lead-acid Battery	94.5V	102.9V	13A	CC20%
	VL9612WPL	96V LiFePO4 Battery		116.8V	12A	CC5~8%
	VL9612WP	96V Lead-acid Battery	108V	117.6V	12A	CC20%
Note: customized input / output / plug type / connectors are available.

Why VLDL 36V 25A Marine/Waterproof Battery Charger are worth to buy?

There are four reasons:

1.      High Quality.

We say our battery chargers have good quality; you may think that every manufacturer claims that their charger is the best. OK, you are thinking totally right! Bad manufacturers will 100% guarantee their chargers is the best in the world and with the cheapest price! But actually, you can’t buy a best product with the cheapest price, the old saying is that “You get what you pay”!

For VLDL Marine / Waterproof Battery Charger, please take a look at inside of it. Comparing some cheap charger manufacturers, in order to save cost, they use send-hand components (we call electronic waste) and no EMC circuit design, no 100% burn-in test before packing.

But we use high quality components, latest circuit technology design (meet EMC standards), fully cover for all components and PCB by waterproof glue, 100% burn-ion test for 4 hours for every charger. From the appearance, it looks the same but much different from the inside. We control our failure rate under 1%, but some manufacturers’ failure rate more than 40%. After you buy from them, then you will be struggling for after-service, no warranty no free replacing, it will hurt your customers and wasting time.

Please see point 2 below, Danl promise full 2 years warranty with free replacing, no worry no struggling for failed problem, just replace it, easy and fast.





2.      Full 2 Years Warranty with Free Replacing

Danl guarantee that we provide full 2 years warranty with free replacing. That means we will replace with free new chargers for your faulty chargers, no repair, no wasting to send back and check, no passing the buck. Why do we have confidence to provide that a great warranty policy? Because we only produce high quality battery chargers, lowest failure rate gives us that confidence.

3.      Factory Price

Based on high quality and full 2 years warranty policy, we supply battery charger with factory price, not the cheapest as some bad manufacturers but reasonable price. We only earn some small part of profit because we know that “Win-Win” situation will help our customers and then help ourselves at the same time. If our customers can’t earn more, how can they buy from us? That is our business philosophy.

4.      Best After-service

Trust us that we asked all of our salesman to reply in 12 hours, not 24 hours.
