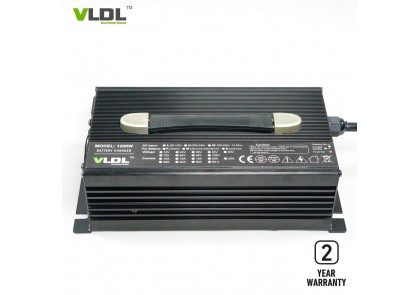

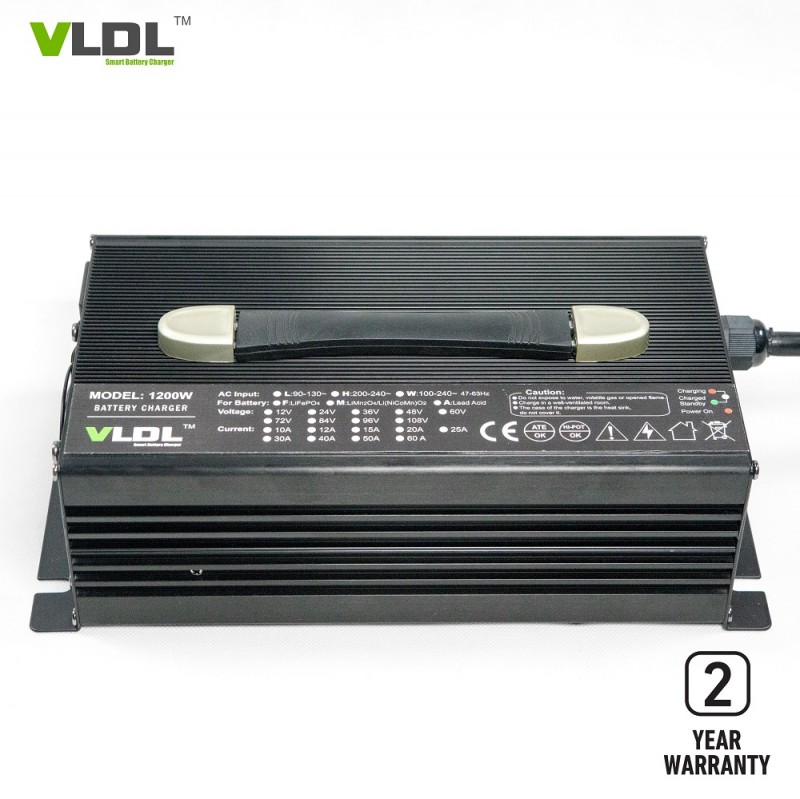

36V 25A LFP Battery Charger

Smart 36V 25A LFP(LiFePO4) Battery Charger

Brief Description:

Designed for 36V LiFePO4 battery, input with 110 or 230Vac and rated output voltatge is 36V 25A. Smart max charging voltage is 36V 42V 43.8V for Li-ion, LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Input 110/230Vac, 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

Dimensions(LxWxH): 260 x 150 x 90 mm

Net weight: 5.0 KG

Max charging voltage(CV): 42V or 43.8V customized

Floating voltage: /

Max output current (CC): 25 amps

Charging method: Automatic CC, CV, Floating

AC input voltage: 110 / 230Vac

AC input freq.: 50 / 60 Hz

AC plug: custom-made

Output connector type: customized by applications

Enclosure: Aluminum
