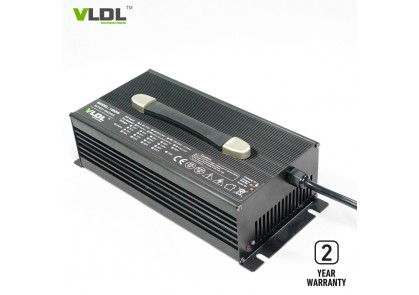

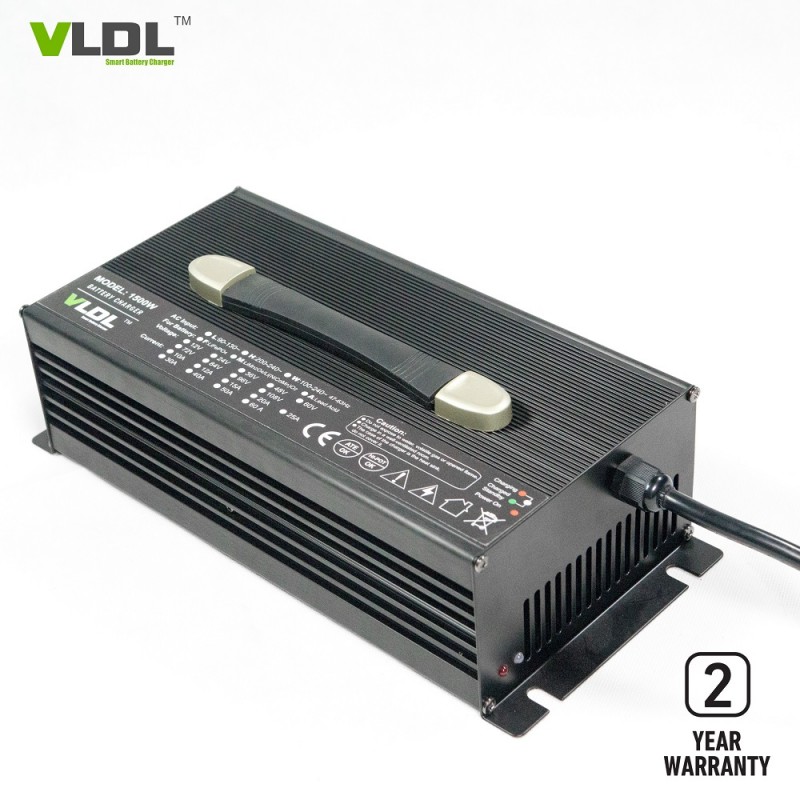

36V 18A Marine Battery Charger

36V 18A Waterproof / Marine Lithium Battery Charger

Brief Description:

Waterproof / Marine Lithium battery charger 36 volts 18 amps, input with AC 110-230Vac with PFC and rated output voltage is DC 36V 18A. Smart max charging voltage is 28V 42V or 43.8V for li-ion, LiFePO4, LiMnO2 type batteries. Intelligent 4 stages charging with CC, CV steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and protect your battery life maximum. High quality, factory price and 2 years warranty.

Features

Optional charging methods: Li-ion / LiFePO4 / LiMnO2 batteries.

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Wide AC input 110-230Vac, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic 4 steps charge: pre-charge, CC, CV, floating / trickle or shut-off.

Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

100% full load burn-in test.

2 years warranty.

Technical Specs.:

Dimensions(LxWxH): 263 x 150 x 90 mm

Net weight: 6.5 KG

Max charging voltage(CV): 42 / 43.8 volts

Max output current (CC): 18 amps

Charging method: Pre-charge, CC, CV

AC input voltage: wide 110-230Vac with PFC

AC input freq.: 50 / 60 Hz

AC plug: US, UK, AU, Euro, etc

Output connector type: Clips, Anderson, bare leads, etc

Waterproof rate: IP65

Enclosure: Sealed Aluminum
