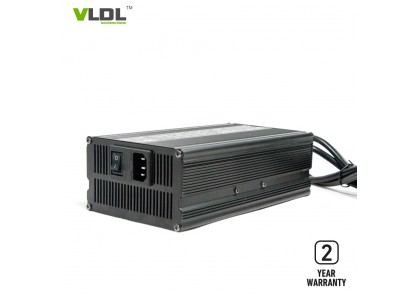

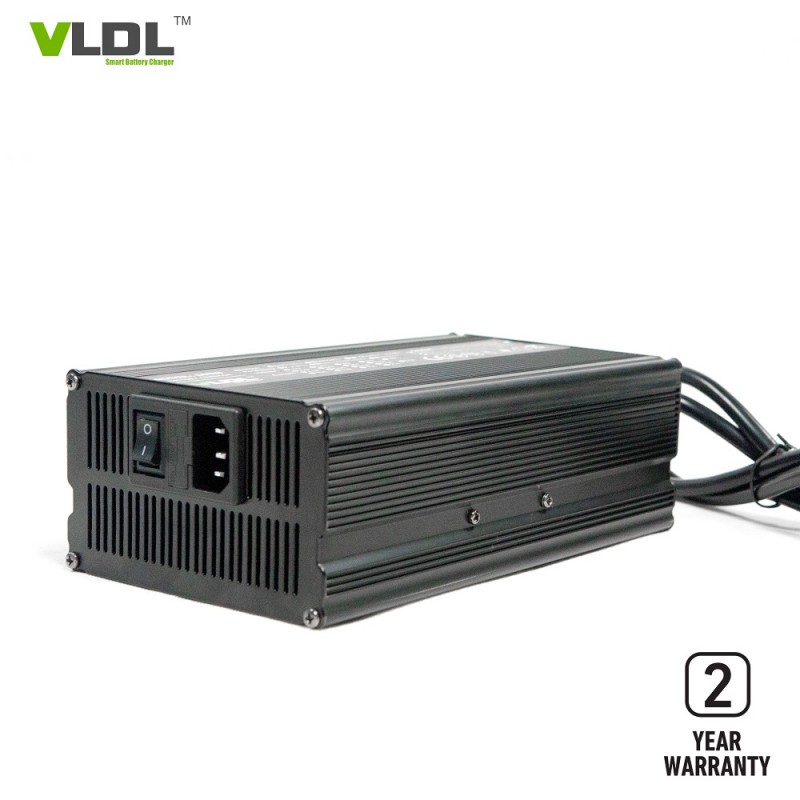

36V 15A Lithium Battery Charger

Smart 36V 15A Lithium Battery Charger

Brief Description:

Designed for 36V lithium battery, input with 110V or 230Vac and rated output voltatge is 60V 6A. Smart max charging voltage is 42V / 43.8V or customized for Li-ion / LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 220 x 120 x 70 mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 42V / 43.8V

4) Floating voltage:

5) Max output current (CC): 15 amps

6) Charging method: automatic CC, CV

7) AC input voltage: 110 or 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user's country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Input 110 or 230Vac, 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Rlated models of 700W charger:

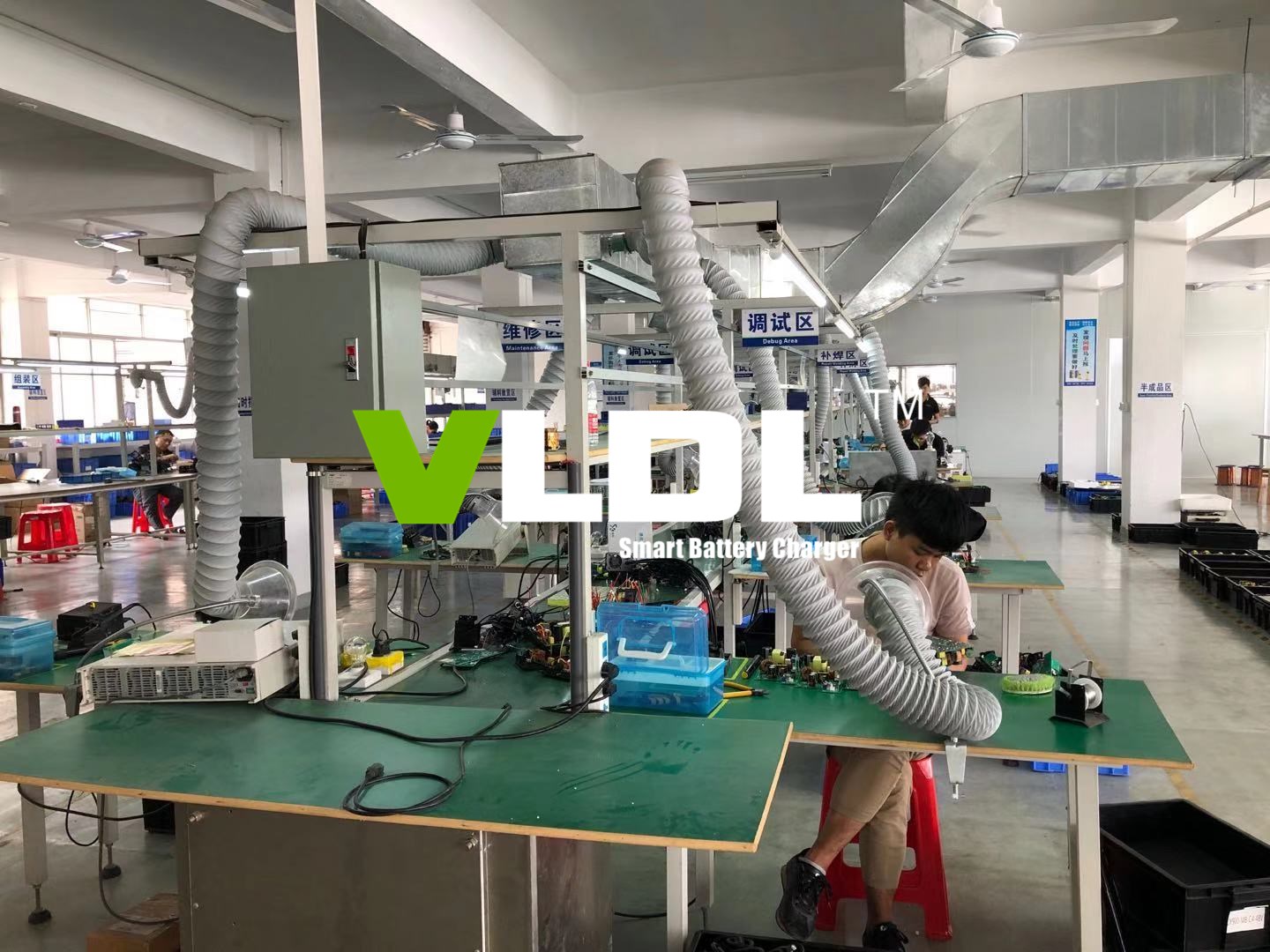

Factory Picture:
