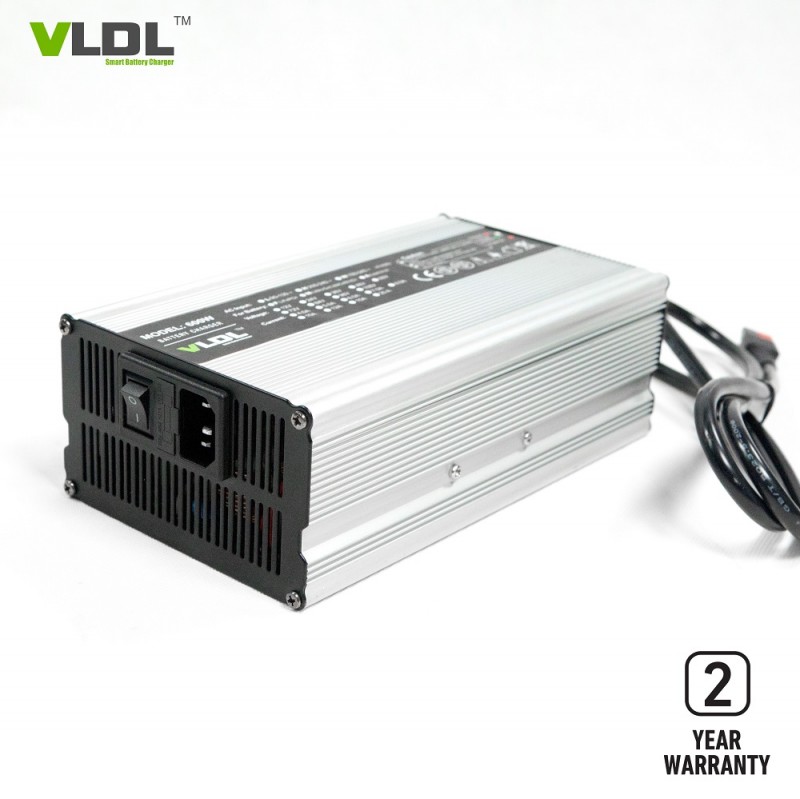

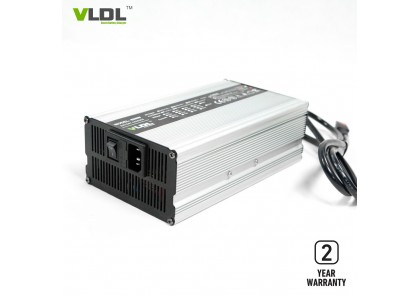

36V 12A LiFePO4 Battery Charger

Smart 36V 12A LiFePO4 Battery Charger with PFC

Brief Descriptions:

This 36V 12A smart battery charger is designed for 36V lithium / lead acid battery power electric mobility scooters. It can charge 36V lead acid, AGM, sealed deepcycle and lithium types batteries. Smart charging with pre-charge, CC, CV and floating or automatic cut-off method. With max 42V / 43.8V 12A fast charging and multi-protections.

Features

1) Optional charging methods: LiFePO4, Li-ion, LiMo2, AGM, GEL, Flooded.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Additional information

DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.

Technical Specs.:

1) Dimensions(LxWxH): 220 x 120 x 70 mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 42 / 43.8Vdc

4) Floating voltage: /

5) Max output current (CC): 12 amps

6) Charging method: pre-charge, CC, CV

7) AC input voltage: wide 110-240Vac with PFC

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Output series: 600W      Size: 220×120×70 mm      Net weight: 2.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
PFC AC Input: 110 - 230V Frequency: 47~63HZ	VL1225L	12V LiFePO4 Battery		14.6V	25A	CC5~8%
	VL1225	12V Lead-acid Battery	13.5V	14.7V	25A	CC20%
	VL1425	14V AGM Battery	13.5V	14.4V	25A	CC20%
	VL1625L	16V LiFePO4 Battery		18.2V	25A	CC5~8%
	VL2418LM	24V Li-MnO2 Battery		29.4V	18A	CC5~8%
	VL2418L	24V LiFePO4 Battery		29.2V	18A	CC5~8%
	VL2418	24V Lead-acid Battery	27.6V	29.4V	18A	CC20%
	VL3612LM	36V Li-MnO2 Battery		42V	12A	CC5~8%
	VL3612L	36V LiFePO4 Battery		43.8V	12A	CC5~8%
	VL3612	36V Lead-acid Battery	41.4V	44.1V	12A	CC20%
	VL4810LM	48V Li-MnO2 Battery		54.6V	10A	CC5~8%
	VL4810L	48V LiFePO4 Battery		43.8V	10A	CC5~8%
	VL4810	48V Lead-acid Battery	55.2V	58.8V	10A	CC20%
	VL6008L	60V LiFePO4 Battery		73V	8A	CC5~8%
	VL6008	60V Lead-acid Battery	67.5V	73.5V	8A	CC20%
	VL7206L	72V LiFePO4 Battery		87.6V	6A	CC5~8%
	VL7206	72V Lead-acid Battery	81V	88.2V	6A	CC20%
	VL8405L	84V LiFePO4 Battery		102.2V	5A	CC5~8%
	VL8405	84V Lead-acid Battery	94.5V	102.9V	5A	CC20%
Note: customized input / output / plug type / connectors are available.

Product Information

Overview

VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.

VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.

VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.
