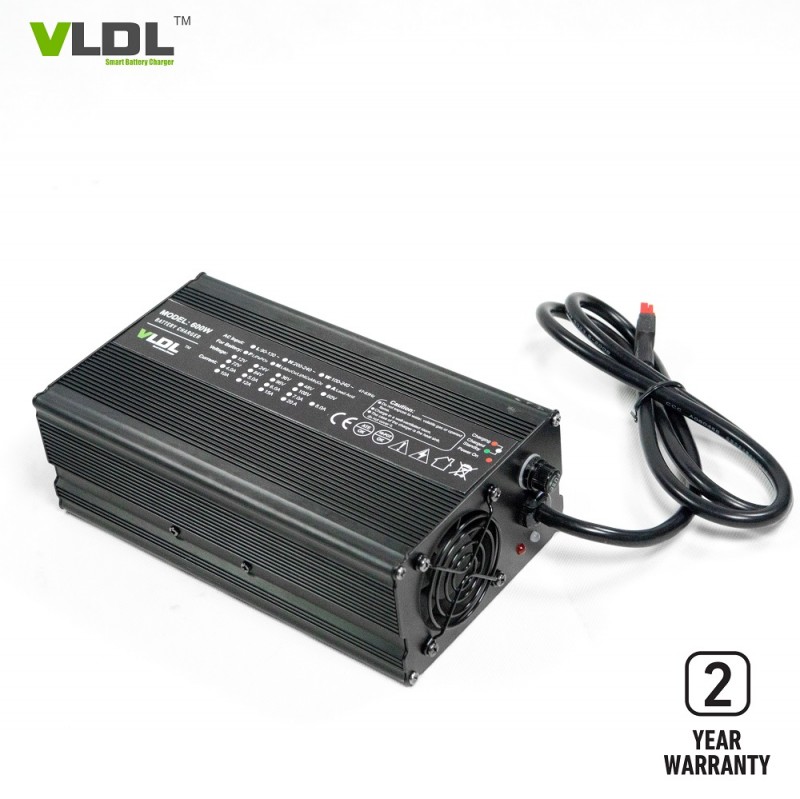

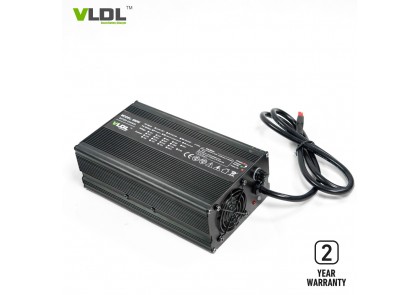

36V 12A Lead-acid Battery Charger

Smart 36V 12A Lead-acid Battery Charger

Brief Descriptions:

Designed for 36V Lead acid battery powered electric motorcycles, input with 110 or 230Vac and rated output voltatge is 36V 12A. Smart max charging voltage is 44.1V for lead acid type batteries and 42V / 43.8V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency and pretect your battery life maximumly.

Technical Specs.:

1) Dimensions(LxWxH): 220 x 120 x 90mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 44.1V

4) Floating voltage: 41.4V

5) Max output current (CC): 12 amps

6) Charging method: Auto. CC, CV, floating / trickle or shut off

7) AC input voltage: 110 or 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110/230Vac(90~264Vac) with PFC, 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 88%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.
