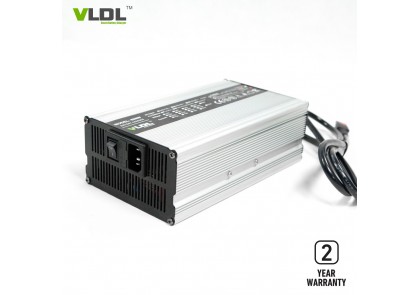

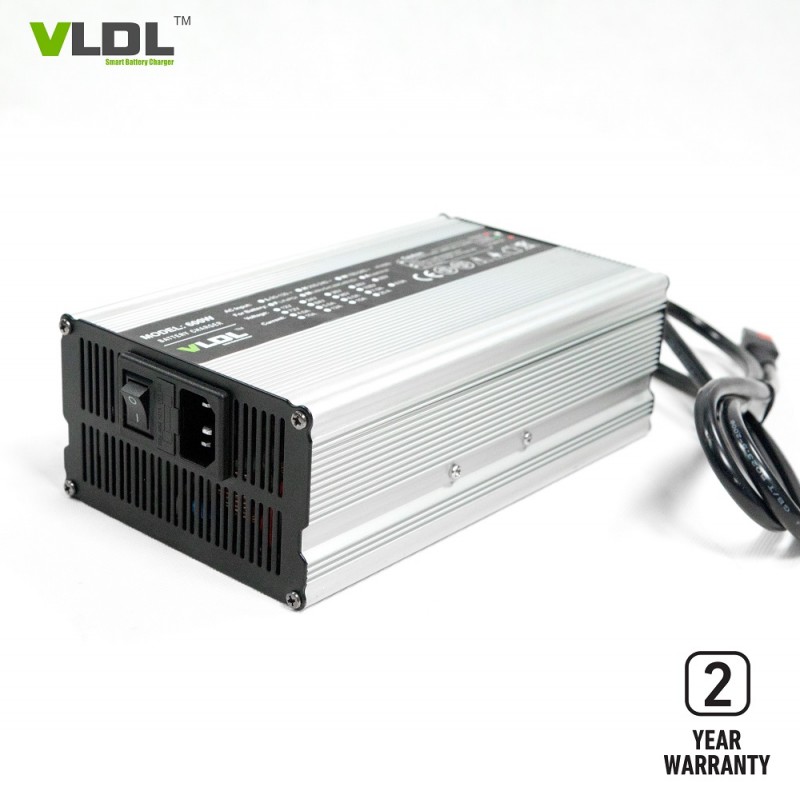

36V 10A Lead Acid Battery Charger

36V 10A Lead-acid Battery Charger

Descriptions:

Designed for 36V lead-acid battery pack. AC input voltage is worldwide 110 to 230Vac and rated output voltage is 48V 10A. Smart max charging voltage is 44.1Vdc for lead acid, AGM, GEL type batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.

Specifications:

AC input voltage: 110/230Vac

AC input freq.: 50 / 60 Hz

Rated output: 36V 10Amps

Max charging voltage: 44.1Vdc

Dimensions(LxWxH): 220 x 120 x 70 mm

Net weight: 2.5 KG

Housing: Aluminum

Color: silver or black

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU contolled

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 36V Lithium Battery Powered Electric Motorcycles / Scooters.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connector by customer's applications.

Output series: 600W     Size: 220×120×70 mm     Net weight: 2.3 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL1225L	12V LiFePO4 Battery		14.6V	25A	CC5~8%
	VL1225	12V Lead-acid Battery	13.5V	14.7V	25A	CC20%
	VL1425	14V AGM Battery	13.5V	14.4V	25A	CC20%
	VL1625L	16V LiFePO4 Battery		18.2V	25A	CC5~8%
	VL2418LM	24V Li-MnO2 Battery		29.4V	18A	CC5~8%
	VL2418L	24V LiFePO4 Battery		29.2V	18A	CC5~8%
	VL2418	24V Lead-acid Battery	27.6V	29.4V	18A	CC20%
	VL3612LM	36V Li-MnO2 Battery		42V	12A	CC5~8%
	VL3612L	36V LiFePO4 Battery		43.8V	12A	CC5~8%
	VL3612	36V Lead-acid Battery	41.4V	44.1V	12A	CC20%
	VL4810LM	48V Li-MnO2 Battery		54.6V	10A	CC5~8%
	VL4810L	48V LiFePO4 Battery		43.8V	10A	CC5~8%
	VL4810	48V Lead-acid Battery	55.2V	58.8V	10A	CC20%
	VL6008L	60V LiFePO4 Battery		73V	8A	CC5~8%
	VL6008	60V Lead-acid Battery	67.5V	73.5V	8A	CC20%
	VL7206L	72V LiFePO4 Battery		87.6V	6A	CC5~8%
	VL7206	72V Lead-acid Battery	81V	88.2V	6A	CC20%
	VL8405L	84V LiFePO4 Battery		102.2V	5A	CC5~8%
	VL8405	84V Lead-acid Battery	94.5V	102.9V	5A	CC20%
Note: customized input / output / plug type / connectors are available.
