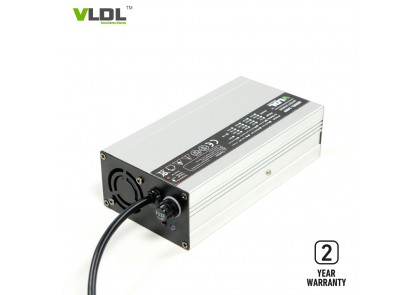

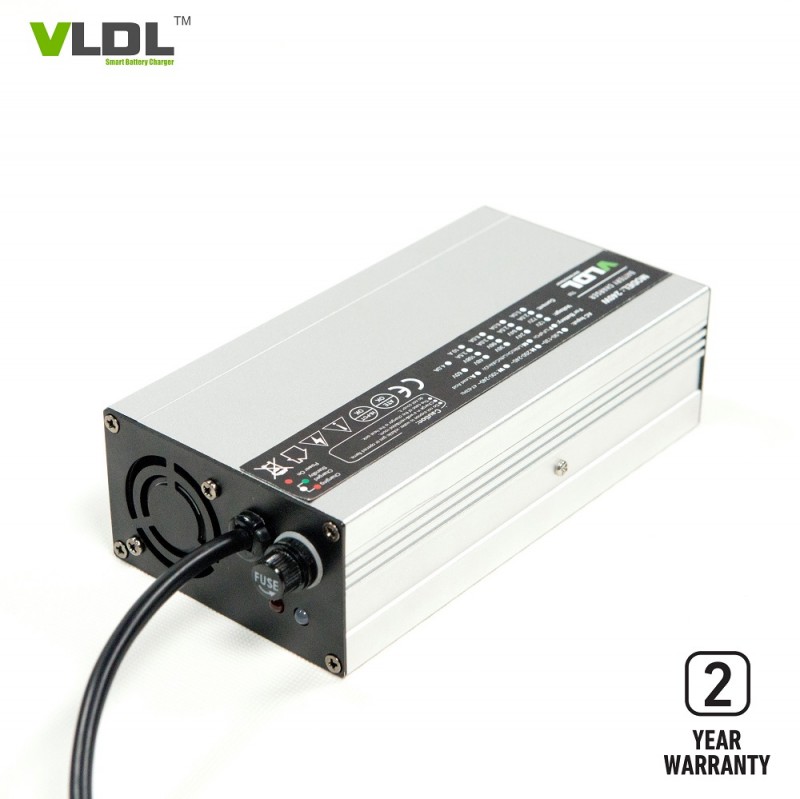

3.65V 15A Lithium Battery Charger
Item number: VL0415L
Dimensions: 170 x 90 x 50 mm
Net weight: 1.0 KG
Max charging voltage(CV): 3.65 Vdc
Max output current (CC):15 amps
Charging method: CC, CV
AC input voltage: 110 / 230Vac
AC input freq.: 50 / 60 Hz
AC plug: US, UK, EU, India, AU etc.
Output connector type: XLR, Anderson, Clips, RCA etc.
Enclosure: Aluminum, black or silver
- Product Details
3.65V 15A Lithium Battery Charger for single cell
Brief Description:
3.65V 15Amps intelligent battery charger is designed for single lithium battery, input with worldwide 110 to 230Vac. Smart max charging voltage is 3.65V and 4.2V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.
Technical Specs.:
1) Dimensions(LxWxH): 170 x 90 x 50 mm
2) Net weight: 1.0 KG
3) Max charging voltage(CV): 3.65 volt
4) Floating voltage: /
5) Max output current (CC): 15 amps
6) Charging method: CC, CV
7) AC input voltage: 110 / 230Vac
8) AC input freq.: 50 / 60 Hz
9) Enclosure: Aluminum
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110 / 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 95%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Output series: 240W Size: 170×90×50 mm Net weight: 1.0 KG | ||||||
Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
AC Input:
85~264V
Frequency: 47~63HZ
|
VL1210L | 12V LiFePO4 Battery |
|
14.6V | 10A | CC5~8% |
VL1210 | 12V Lead-acid Battery | 13.5V | 14.7V | 10A | CC20% | |
VL2407LM | 24V Li-MnO2 Battery |
|
29.4V | 7A | CC5~8% | |
VL2407L | 24V LiFePO4 Battery |
|
29.2V | 7A | CC5~8% | |
VL2407 | 24V Lead-acid Battery | 27.6V | 29.4V | 7A | CC20% | |
VL3605LM | 36V Li-MnO2 Battery |
|
42V | 5A | CC5~8% | |
VL3605L | 36V LiFePO4 Battery |
|
43.8V | 5A | CC5~8% | |
VL3605 | 36V Lead-acid Battery | 41.4V | 44.1V | 5A | CC20% | |
VL4804LM | 48V Li-MnO2 Battery |
|
54.6V | 4A | CC5~8% | |
VL4804L | 48V LiFePO4 Battery |
|
43.8V | 4A | CC5~8% | |
VL4804 | 48V Lead-acid Battery | 55.2V | 58.8V | 4A | CC20% | |
VL6003L | 60V LiFePO4 Battery |
|
73V | 3A | CC5~8% | |
VL6003 | 60V Lead-acid Battery | 67.5V | 73.5V | 3A | CC20% | |
VL72025L | 72V LiFePO4 Battery |
|
87.6V | 2.5A | CC5~8% | |
VL72025 | 72V Lead-acid Battery | 81V | 88.2V | 2.5A | CC20% | |
Note: customized input / output / plug type / connectors are available. |
