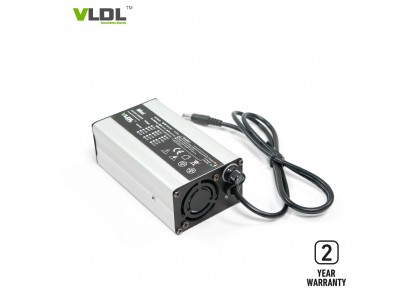

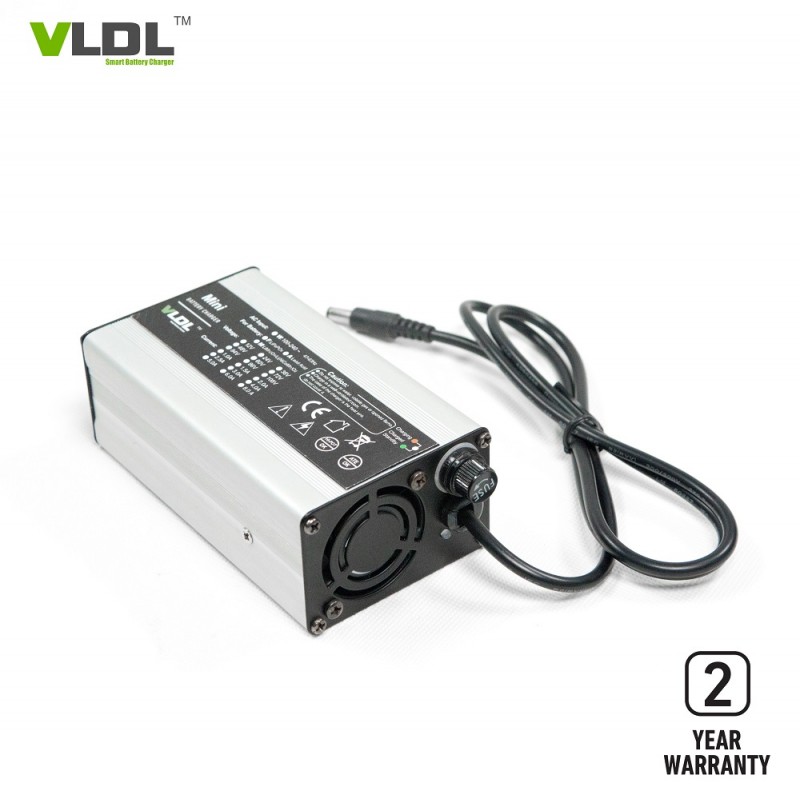

30V 4A Lithium Battery Charger

24V 30V 4A Lithium Battery Charger

Automatic Charging, 90 to 264Vac wide input voltage

Brief Description:
Li-ion/LiFePO4 battery charger 24 volt 4 amps with universal 110 - 230 vac input. Black or silver aluminum casing. Rated ouput 24V 4A and max charging voltage is 29.2 or 29.4V or 30V. As a swtiching mode technology battery charger, it has small size and light weight, much portable for user. This charger has intelligent 4 steps charging method and charge your Lithium types inclduing Li-ion, LiFePO4, Li-polymer batteries with fast speed and high efficiency. It is a fully automatic charging charger, just power on and connect it to your battery and then leave it alone.

Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
1 LED: LED Red-Charging, LED Green-Fully Charged or Stand by
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 95%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.

Technical Specs.:
1) Dimensions(LxWxH): 120 x 69 x 45 MM
2) Net weight: 0.6 KG
3) Max charging voltage(CV): 29.2 / 29.4 / 30 volts
4) Floating voltage: /
5) Max output current (CC): 4 amps
6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110-230Vac universal
8) AC input freq.: 50/60 Hz
9) AC plug: custom-made
10) Output connector type: customized by applications
11) Enclosure: Aluminum

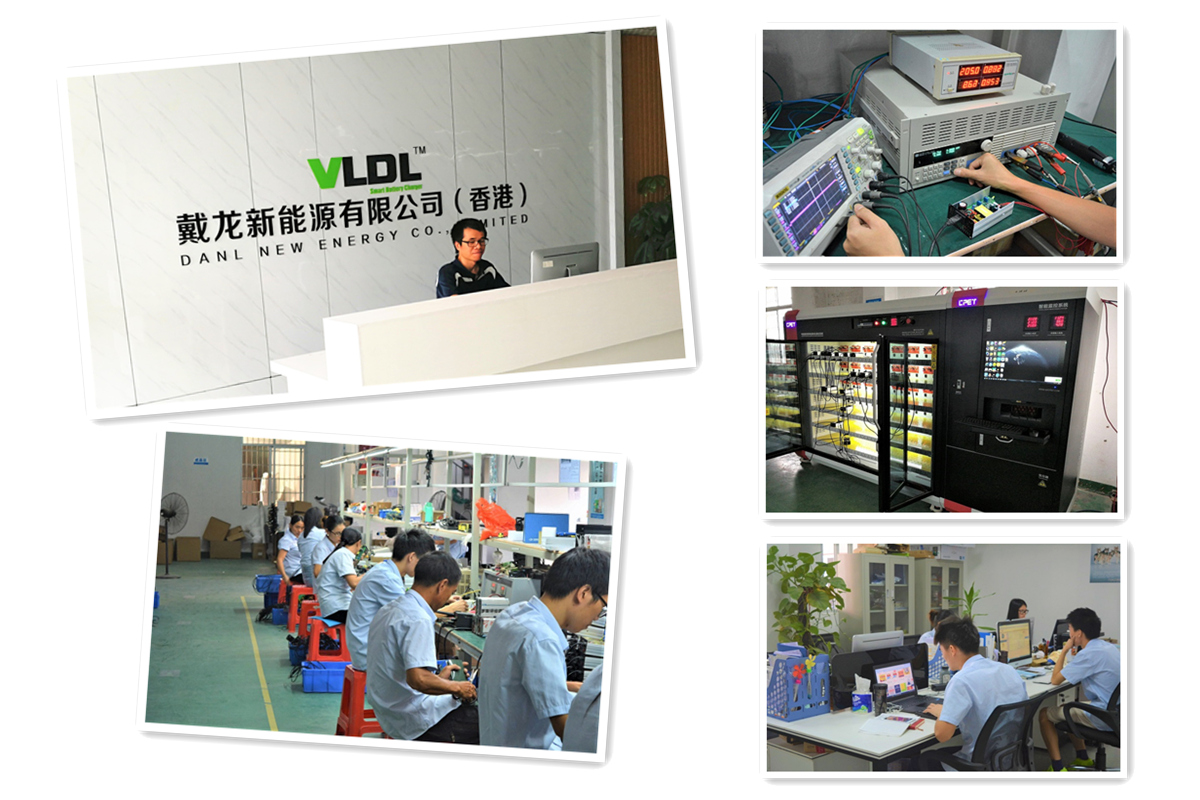

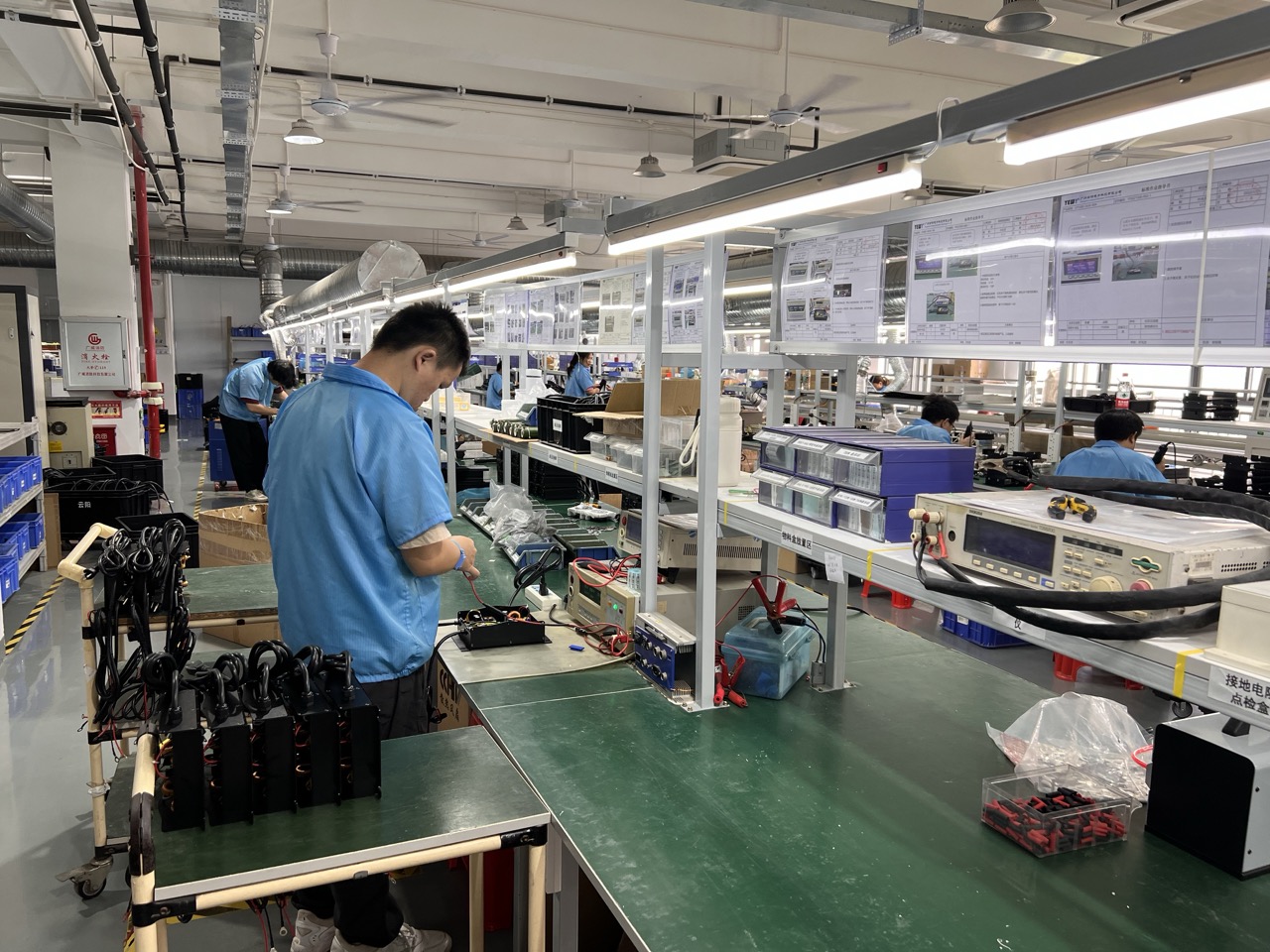

Factory Pictures:

Quality Control:

We have passed Quality Management ISO 9001:2015 and Environmental Management ISO 14001:2015. We control our quality as following 6 steps:

Step 1 Using Famous Brand Components: Only use famous brand and high quality components and choose suppliers with certifications. Guarantee no low quality components get into our warehouse.

Step 2 Inspecting Components: Inspect every batch of incoming components.

Step 3 Qualified Workers Assembling: 2 year qualified workers assemble the battery chargers, high efficiency and low failure rate.

Step 4 Smart Aging System: Using smart aging system to do burn-in test with full load for at least two hours. This system will age battery chargers automatically after setting in computer and record every aging information. Guarantee every battery charger's components under the good condition.

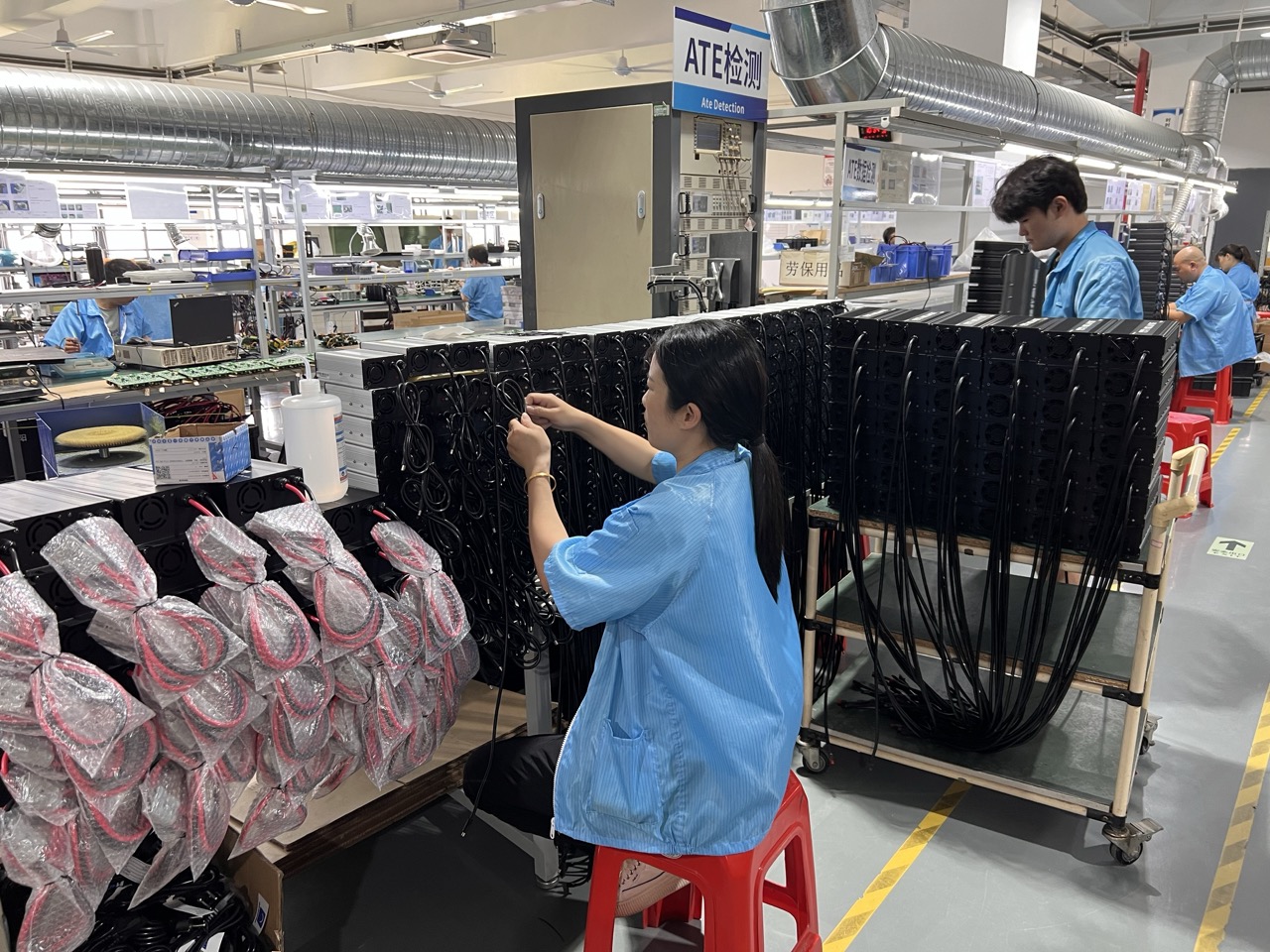

Step 5 Latest ATE Battery Charger Test System: At last, we do final test by our latest ATE Battery Charger Test System before packing. This system will do more than 10 performances automatic testing and check all functions automatically, recording test data with very fast and precise way, tracking test result, reading, comparing and filing all data, easy to control. Every battery charger has an unique tracking code, when there is a fault on battery charger, we just scan the code and track its manufacturing information.

Step 6 Random Test Before Shipping: Before shipping, we will choose two chargers randomly and test again. This shipment can be released for shipping if there is no problem at random test.

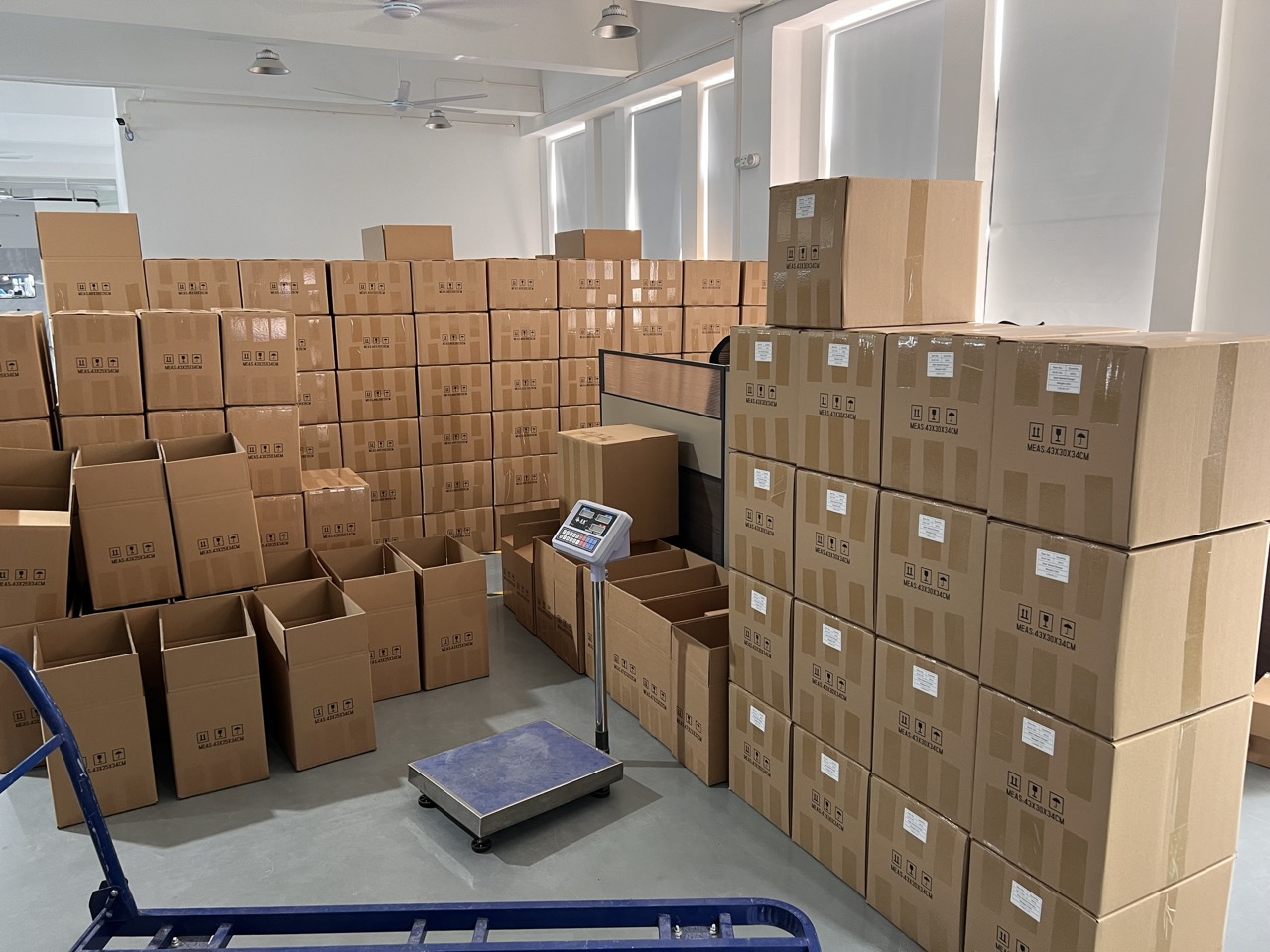

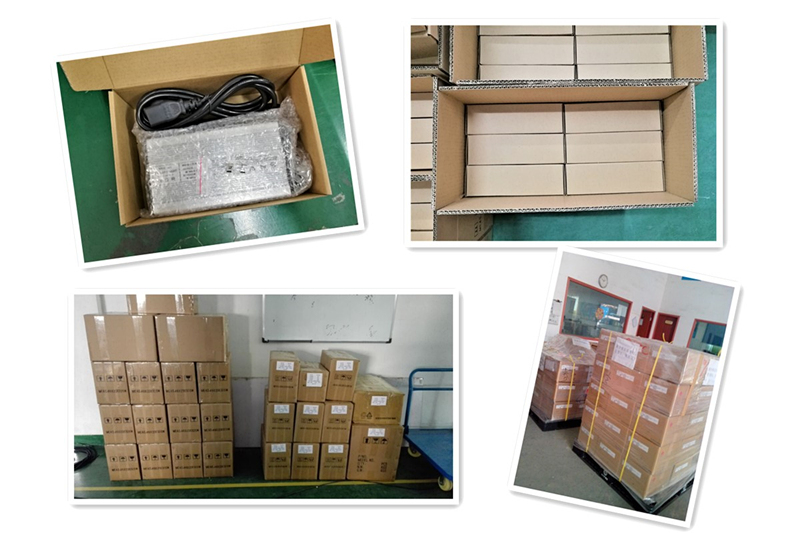

Packing:
