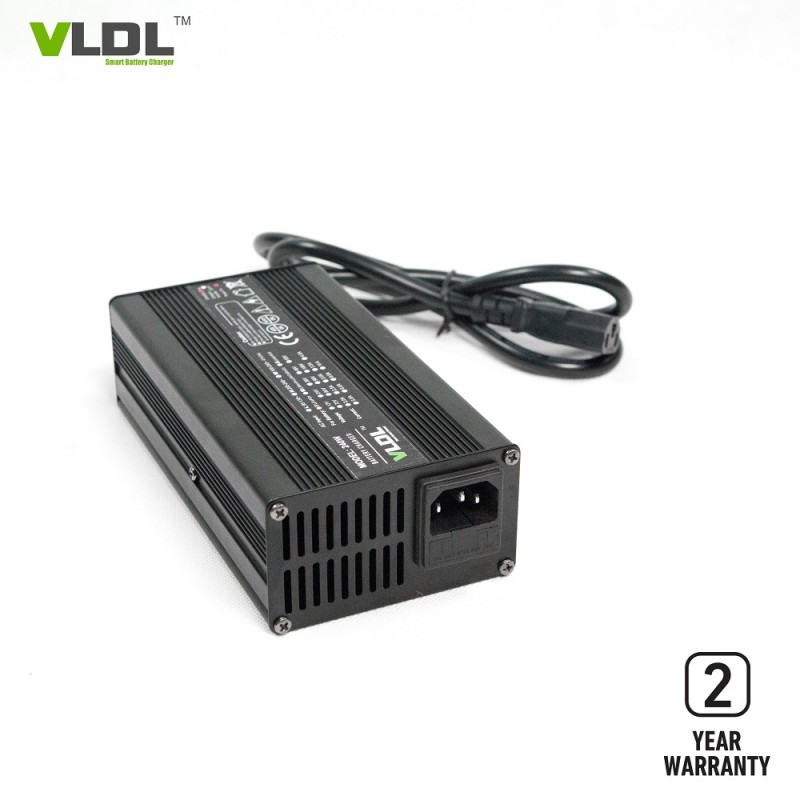

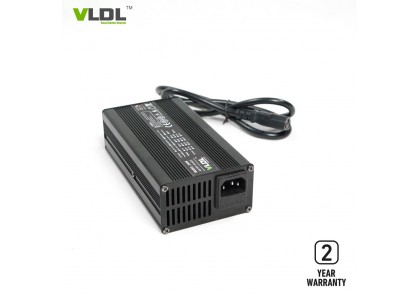

29.4V 5A Automatic Battery Charger
Item No.: VL2405
Case material: Aluminum
Size: 155*90*50 mm
Net weight: 0.9 kg
AC input: 110-230Vac, 50-60Hz
Output-rated: 24Vdc, 5A
Output-max: 29.4Vdc
Applied battery: 24V Lead-acid, AGM, GEL battery
Charging method: Automatic CC, CV, Floating
Warranty: 3 Years
- Product Details
29.4V (24V) 5A Automatic Battery Charger
Descriptions:
SLA battery charger 24V 5A was designed for electic bikes or scooters. Totally micro-processor controlled and automatic charging by battery's state. Max charging voltage can be set at 29.4V or customized for SLA, GEL, AGM battery types. As a 15 years battery charger factory, Danl guarantees 3 years warranty for all of our chargers, high quality and in 24 hours response after-service. Bring safty and best service to our customers.
Specifications:
AC input voltage: 110 or 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 24V 5Amps
Max charging voltage: customized 29.4V
Dimensions(LxWxH): 155 x 90 x 50 mm
Net weight: 1.0 KG
Housing: Aluminum
Color: Silver or Black
Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.
Smart and Automatic 4 Steps Charging.
Aluminum Casing, Light Weight, Portable.
High Quality, Factory Price.
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Applications:
Automatic Charging For 24V Lead-acid Batteries.
Suit for E-bikes, E-scooters.
Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
Related Models of 180W Charger:
| Output series: 180W Size: 155×90×50 mm Net weight: 0.9 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110/230V
Frequency: 47~63HZ
|
VL1208L | 12V LiFePO4 Battery |
|
14.6V | 8A | CC5~8% |
| VL1208 | 12V Lead-acid Battery | 13.5V | 14.7V | 8A | CC20% | |
| VL2405LM | 24V Li-MnO2 Battery |
|
29.4V | 5A | CC5~8% | |
| VL2405 | 24V Lead-acid Battery | 27.6V | 29.4V | 5A | CC20% | |
| VL3604L | 36V Li-MnO2 Battery |
|
42V | 4A | CC5~8% | |
| VL3604 | 36V Lead-acid Battery | 41.4V | 44.1V | 4A | CC20% | |
| VL4803LM | 48V Li-MnO2 Battery |
|
54.6V | 3A | CC5~8% | |
| VL4803 | 48V Lead-acid Battery | 55.2V | 58.8V | 3A | CC20% | |
|
Note: customized input / output / plug type / connectors are available. |
||||||
