29.2V 30A Waterproof Battery Charger
Item No.: VL2430LWP
Dimension: 310*230*101mm
Net weight: 8.0kg
Input voltage: wide 90~264Vac with PFC
Case material: sealed aluminum
Certificate: CE
WaterProof rate: IP65 / IP66
Output rated: 24V 30A
Max charging: 29.2V / 29.4V customized
Applied to battery Types: 24V Lithium Battery
Smart Charging: Auto. Pre-charge, CC and CV
- Product Details

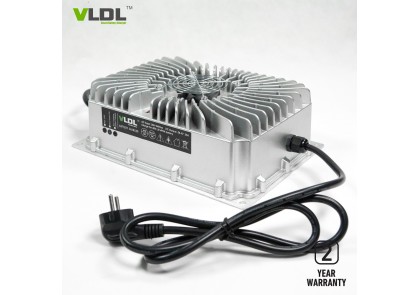

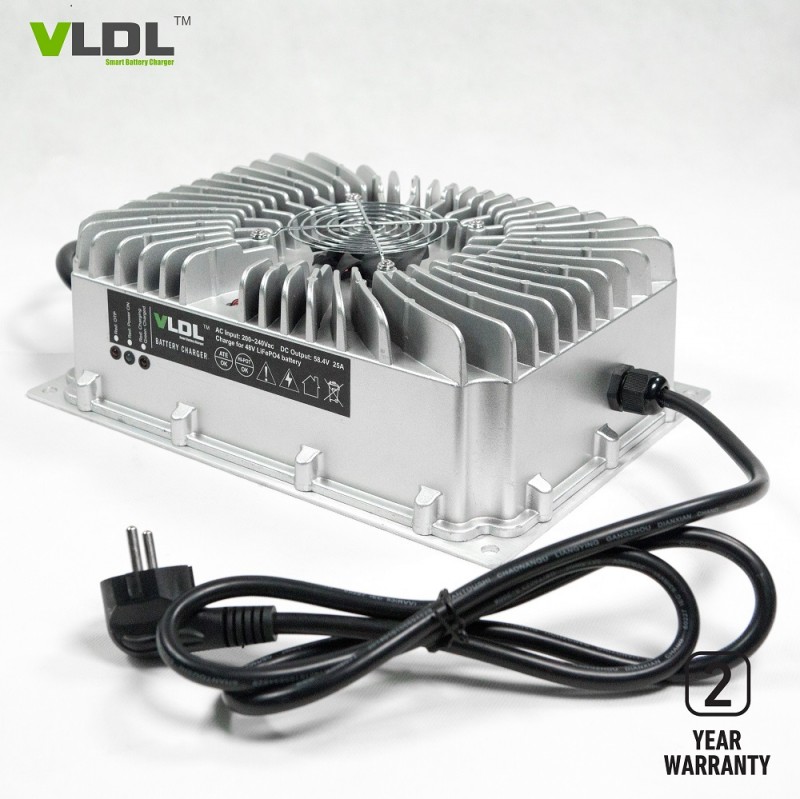

24V 29.2V 30A Waterproof Lithium Battery Charger
Brief Descriptions:
24V 30A rated output Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 90~264Vac input voltage with PFC circuit.
29.2V / 29.4V customized max charging voltage for Lithium batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
CE certification from TUV.
2 years warranty, high quality.
Technical Specs.:
Dimensions: 310 × 230 × 101 MM
Net weight: 8.0 KG
Max charging voltage(CV): 29.2V / 29.4V (customized)
Max output current (CC): 30 amps
Charging method: Pre-charge, CC, CV
AC input voltage: 90-264 Vac universal with PFC
AC input frequency.: 50 / 60 Hz
AC plug types: UK, Euro, US, AU, India
Output connector types: supply free Clips, Anderson 50A.
Enclosure: Aluminum
Waterproof rate: IP65 / IP66
LED RED flashing: FAULT.
What is the PFC circuit?
This 24V 30A Smart Waterproof Battery Charger has PFC circuit, you may ask What is the PFC circuit? Let explain:
"A power factor correction (PFC) circuit is added to a power supply circuit to bring its power factor close to 1.0 or reduce harmonics. ... To reduce the size and improve the efficiency of power supplies, switching PFC circuits in various topologies have appeared, including interleaved and bridgeless PFC."
The battery charger manufacturing cost will rise about 20% it has PFC circuit. We add PFC to all of our waterproof smart battery chargers. You can check if there is PFC circuit when you are choosing a waterproof charger, not only compare the price because you will find that the PFC chargers will much expensive the non-PFC chargers.

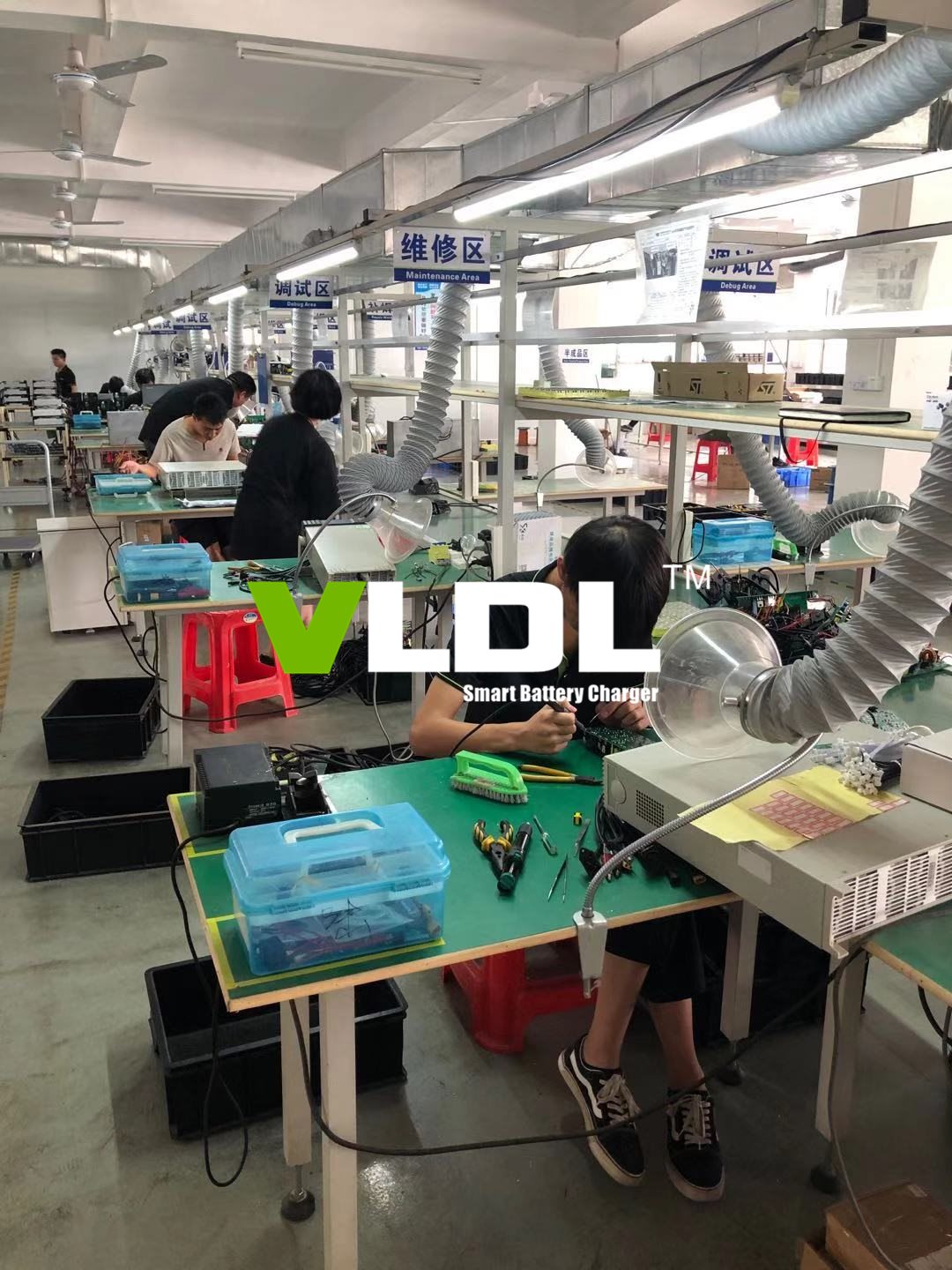

Factory:
