25.6V 22A LiFePO4 Battery Charger

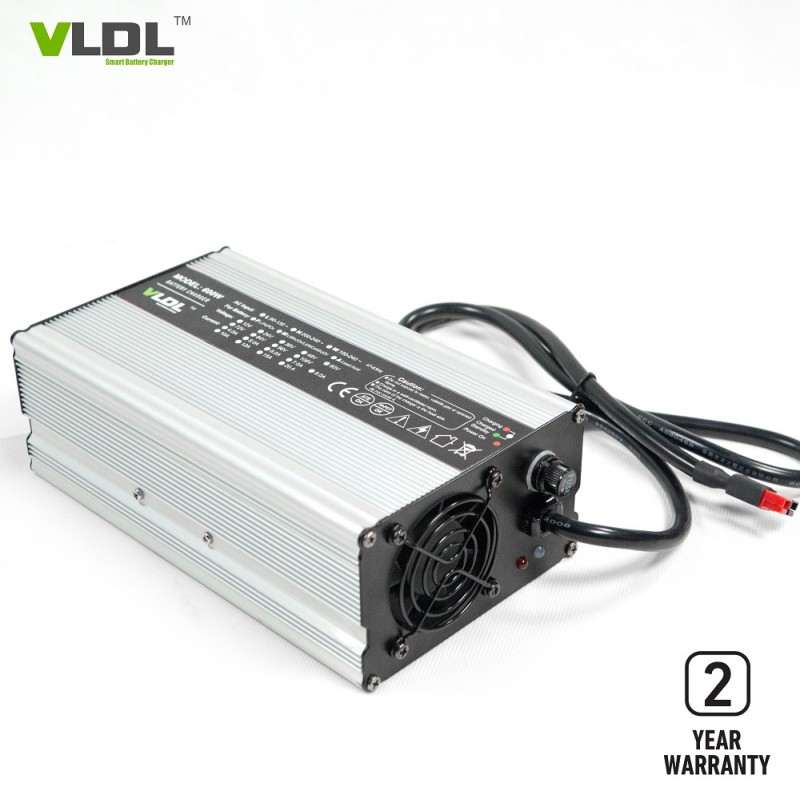

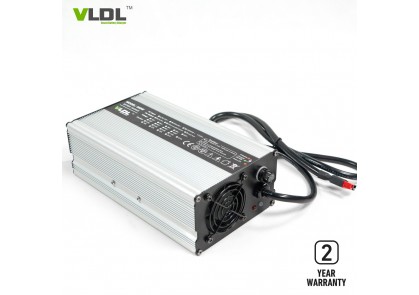

Smart 25.6V 22A LiFePO4 Battery Charger

Brief Descriptions:

This 25.6V 22A smart LiFePO4 battery charger is designed for 24V LiFePO4 / lead acid battery. It can charge 24V lead acid, AGM, sealed deepcycle and lithium types batteries. Smart charging with pre-charge, CC, CV and floating or automatic cut-off method. With max 25.6 Volt 22 Amps fast charging and multi-protections.

Technical Specs.:

1) Dimensions(LxWxH): 220 x 120 x 70 mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 25.6Vdc

4) Floating voltage: /

5) Max output current (CC): 22 amps

6) Charging method: pre-charge, CC, CV

7) AC input voltage: 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Features

1) Optional charging methods: Li-ion, LiFePO4 battery.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Single input 110/230Vac, 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Additional information

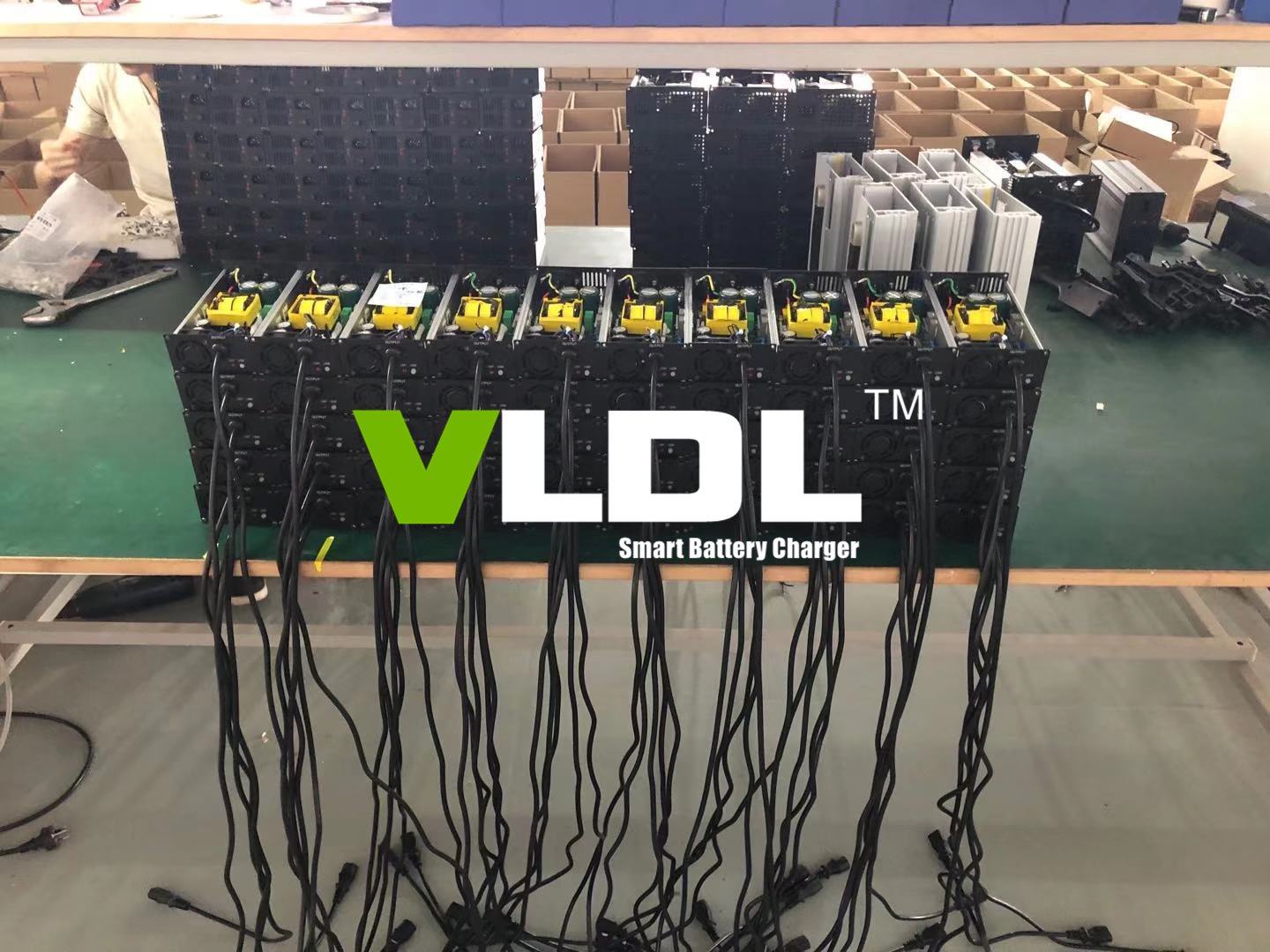

DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
