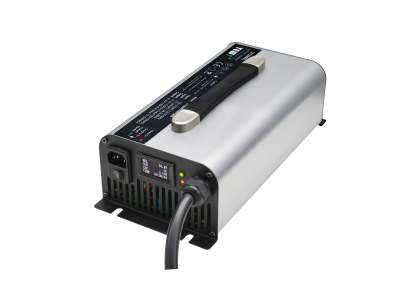

24V 60A Universal Battery Charger
Item No.: UY2000L-2460
Input voltage: universal 110-230Vac
Rated output: 24V 60A
Max charging: 29.4V customized
Applied to battery types: 24V lead-acid battery
Smart Charging: Soft start, CC, CV and Float
Case material: Aluminum
Size: 316×150×103 mm
Net weight: 3.6 kg
Warranty: 2 years
- Product Details

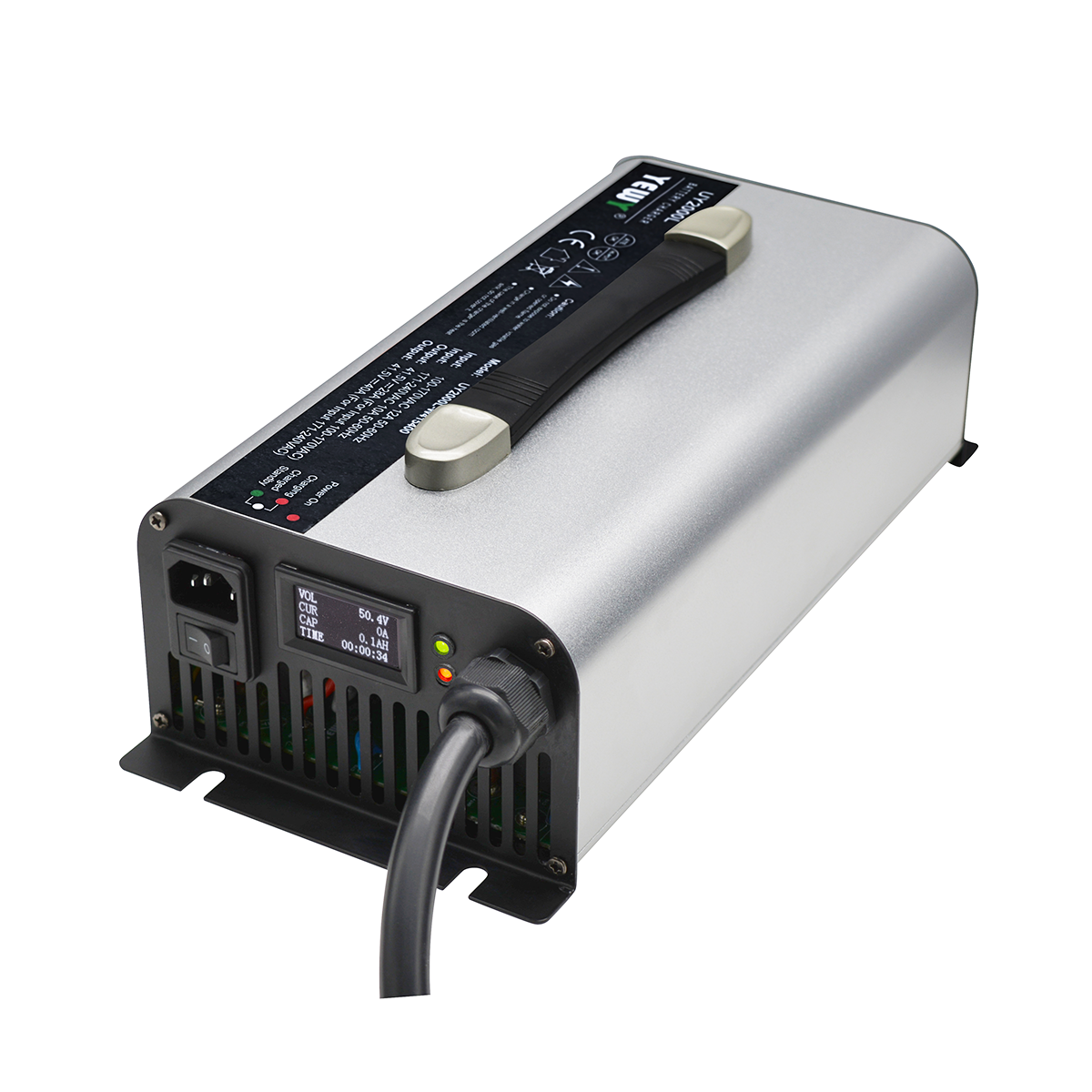

24V 60A Universal Lead-acid Battery Charger
Brief Descriptions:
24V 60A output PFC Battery Charger.
Universal 110~230Vac input voltage with PFC.
29.4V customized max charging voltage for lead acid batteries.
LCD display of charging status.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
Power Factor: >0.95
2 years warranty, high quality.
Specifications:
AC input voltage: universal 90 to 264Vac with PFC
AC input freq.: 50 / 60 Hz
Rated output: 24V 60A
Max charging voltage: 29.4V
Dimensions(LxWxH): 316 x 150 x 103 mm
Net weight: 3.6 KG
Housing: Aluminum
Color: silver
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU controlled
PFC circuit with high efficiency
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Applications:
Charging 24V AGM, GEL, SLA batteries.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
