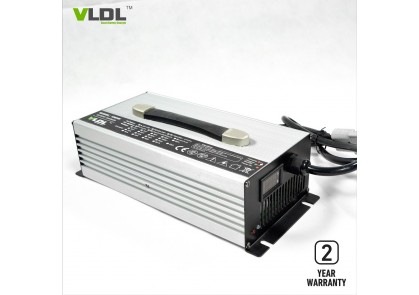

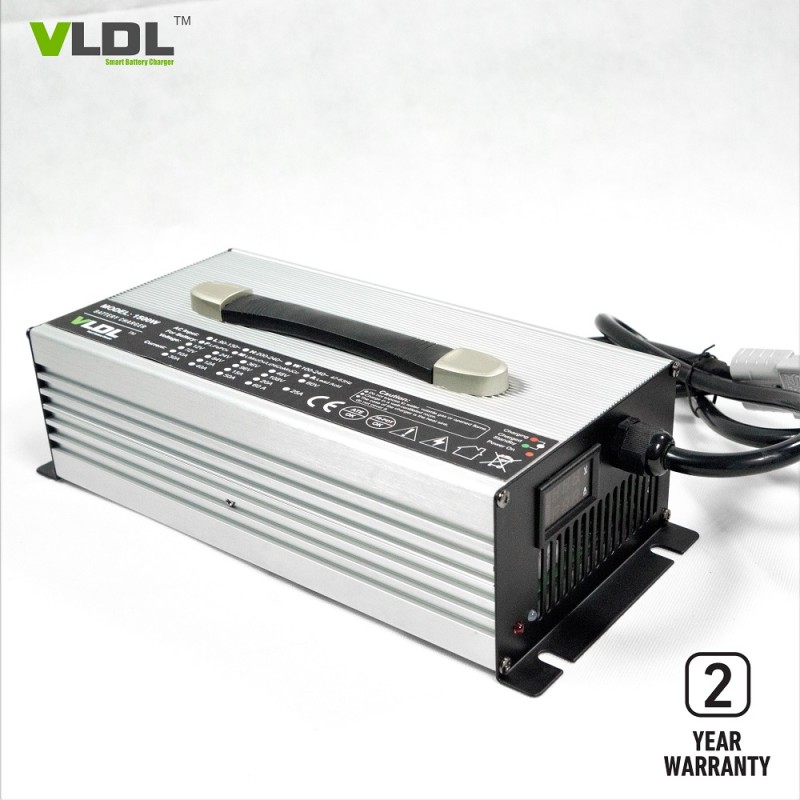

24V 60A Lithium Battery Charger

24V 60A Battery Charger For Lithium Battery

Brief Description:

24V 60Amps intelligent lithium battery charger is designed for LiFePO4, Li-ion, LiMnO2 battery, input with single 110V or 230Vac and rated output voltatge is 24 Volt 60 amps. Smart max charging voltage is 29.4V for lead acid type batteries and 28V / 29.2V / 29.4V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110V or 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 88%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 330 x 150 x 90 mm

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 28 / 29.2 / 29.4 volts

4) Max output current (CC): 60 amps

5) Charging method: Automatic Pre-charge, CC, CV

6) AC input voltage: 110 / 230Vac

7) AC input freq.: 50 / 60 Hz

8) AC plug: UK, US, AU, EU, etc

9) Output connector type: Clips, Anderson, etc.

10) Enclosure: Aluminum
