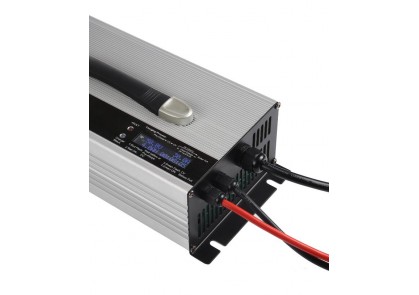

24V 60A Lead-acid Battery Charger
Dimension: 330 x 150 x 90 mm
Net weight: 6.5 kg
Case material: Aluminum
Input voltage: 110 or 230Vac
Max output: 29.2 / 29.4Vdc, 60Amps
Applied to battery types: 24V Lead-acid Batteries
Charging method: Automatic CC, CV, Floating
Warranty: 2 Years
- Product Details

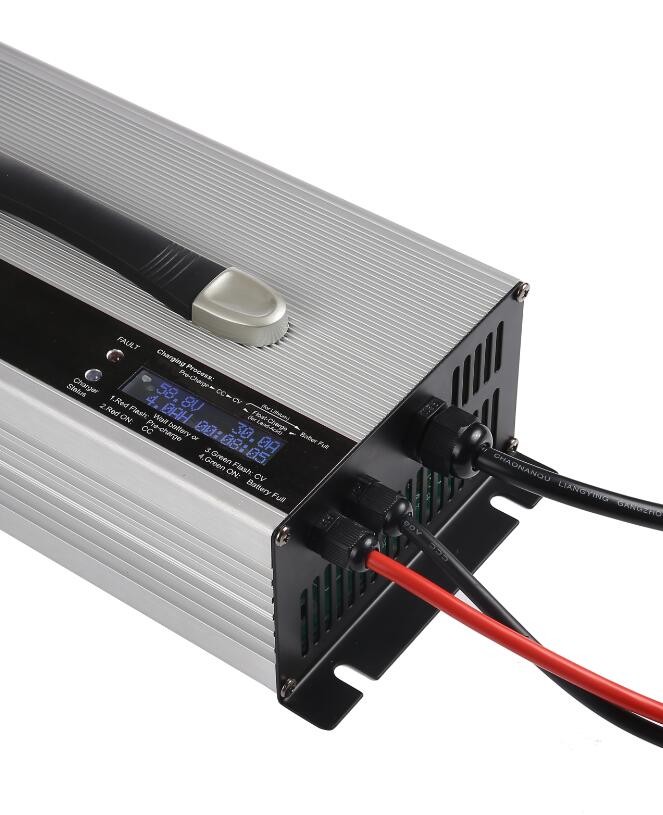

24V 60A Battery Charger For Lead-acid Battery
Brief Description:
24V 60Amps intelligent lead-acid battery charger is designed for SLA, AGM, GEL battery, input with single 110V or 230Vac and rated output voltatge is 24 Volt 60 amps. Smart max charging voltage is 29.4V for lead acid type batteries and 28V / 29.2V / 29.4V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input 110V or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 88%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
1) Dimensions(LxWxH): 330 x 150 x 90 mm
2) Net weight: 6.5 KG
3) Max charging voltage(CV): 28 / 29.2 / 29.4 volts
4) Max output current (CC): 60 amps
5) Charging method: Automatic CC, CV, Floating
6) AC input voltage: 110 / 230Vac
7) AC input freq.: 50 / 60 Hz
8) AC plug: UK, US, AU, EU, etc
9) Output connector type: Clips, Anderson, etc.
10) Enclosure: Aluminum
Output series: 2,000W Size: 330×150×90 mm Net weight: 6.5 KG | ||||||
Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL12100L | 12V LiFePO4 Battery | 14.6V | 100A | CC5~8% | |
VL12100 | 12V Lead-acid Battery | 13.5V | 14.7V | 100A | CC20% | |
VL14100 | 14V AGM Battery | 13.5V | 14.4V | 100A | CC20% | |
VL16100L | 16V LiFePO4 Battery | 18.2V | 100A | CC5~8% | ||
VL2460LM | 24V Li-MnO2 Battery | 29.4V | 60A | CC5~8% | ||
VL2460L | 24V LiFePO4 Battery | 29.2V | 60A | CC5~8% | ||
VL2460 | 24V Lead-acid Battery | 27.6V | 29.4V | 60A | CC20% | |
VL3640LM | 36V Li-MnO2 Battery | 42V | 40A | CC5~8% | ||
VL3640L | 36V LiFePO4 Battery | 43.8V | 40A | CC5~8% | ||
VL3640 | 36V Lead-acid Battery | 41.4V | 44.1V | 40A | CC20% | |
VL4830LM | 48V Li-MnO2 Battery | 54.6V | 30A | CC5~8% | ||
VL4830L | 48V LiFePO4 Battery | 43.8V | 30A | CC5~8% | ||
VL4830 | 48V Lead-acid Battery | 55.2V | 58.8V | 30A | CC20% | |
VL6025L | 60V LiFePO4 Battery | 73V | 25A | CC5~8% | ||
VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
VL7220L | 72V LiFePO4 Battery | 87.6V | 20A | CC5~8% | ||
VL7220 | 72V Lead-acid Battery | 81V | 88.2V | 20A | CC20% | |
VL8418L | 84V LiFePO4 Battery | 102.2V | 18A | CC5~8% | ||
VL8418 | 84V Lead-acid Battery | 94.5V | 102.9V | 18A | CC20% | |
VL9616L | 96V LiFePO4 Battery | 116.8V | 16A | CC5~8% | ||
VL9616 | 96V Lead-acid Battery | 108V | 117.6V | 16A | CC20% | |
Note: customized input / output / plug type / connectors are available. |
