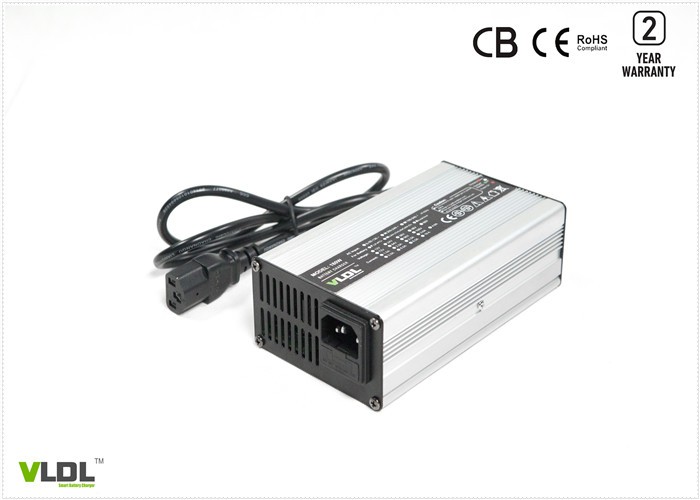

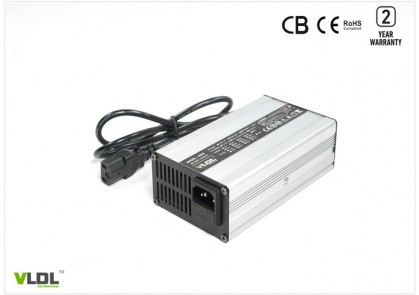

24V 5A E-Scooter Smart Charger
Item No.: VL2405
Size: 155 x 90 x 50 mm
Net weight: 0.9 KG
Max charging voltage(CV): 29.4 volt
Floating voltage: 27.6V
Max output current (CC): 5 amps
Charging method: CC, CV, floating
AC input voltage: 110 / 230Vac
AC input freq.: 50 / 60 Hz
Case: Aluminum
- Product Details
24V 5A E-Scooter Smart Charger for Lead-acid Battery
Brief Description:
Automatic smart battery charger 24V 5A for e-mobility scooters and wheelchairs. Max 29.2V or 29.4V charging voltage for 24V SLA, AGM, GEL, LiFePO4, Li-ion battery packs. Automatic 4 steps transition of pre-charge, CC, CV and floating or shut off. Worldwide input with 110 - 240Vac, use it anywhere. Aluminum housing, light weight and portable.
Features:
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
Technical Specs.:
1) Dimensions(LxWxH): 155 x 90 x 50mm
2) Net weight: 0.9 KG
3) Max charging voltage(CV): 29.4 volt
4) Floating voltage: customized
5) Max output current (CC): 5 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 240Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
Output series: 180W Size: 155×90×50 mm Net weight: 0.9 KG | ||||||
Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
AC Input: 85~264V
Frequency: 47~63HZ
|
VL1208L | 12V LiFePO4 Battery | 14.6V | 8A | CC5~8% | |
VL1208 | 12V Lead-acid Battery | 13.5V | 14.7V | 8A | CC20% | |
VL2405LM | 24V Li-MnO2 Battery | 29.4V | 5A | CC5~8% | ||
VL2405 | 24V Lead-acid Battery | 27.6V | 29.4V | 5A | CC20% | |
VL3604L | 36V Li-MnO2 Battery | 42V | 4A | CC5~8% | ||
VL3604 | 36V Lead-acid Battery | 41.4V | 44.1V | 4A | CC20% | |
VL4803LM | 48V Li-MnO2 Battery | 54.6V | 3A | CC5~8% | ||
VL4803 | 48V Lead-acid Battery | 55.2V | 58.8V | 3A | CC20% | |
Note: customized input / output / plug type / connectors are available. |
Packing:
