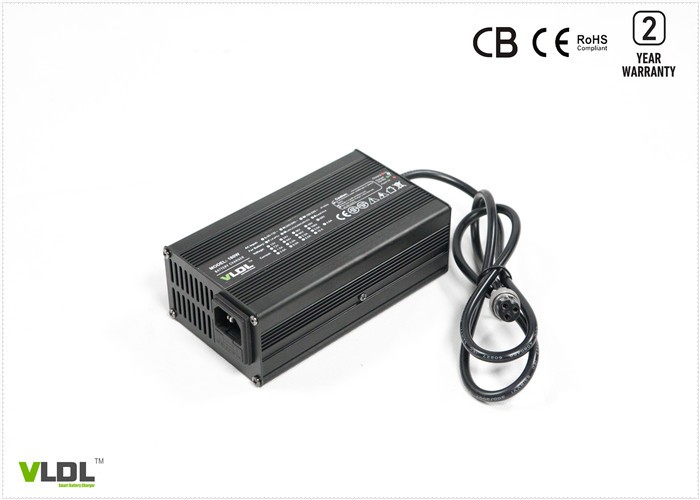

24V 5A E-Bike Automatic Charger

Automatic Smart Charger 24V 5A For E - Mobility Scooters Wheelchairs Max 29.2V

Brief Description:

Automatic smart battery charger 24V 5A for e-mobility scooters and wheelchairs. Max 29.2V or 29.4V charging voltage for 24V SLA, AGM, GEL, LiFePO4, Li-ion battery packs. Automatic 4 steps transition of pre-charge, CC, CV and floating or shut off. Worldwide input with 110 - 240Vac, use it anywhere. Aluminum housing, light weight and portable.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 155 x 90 x 50mm

2) Net weight: 0.9 KG

3) Max charging voltage(CV): 29.4 volt

4) Floating voltage: customized

5) Max output current (CC): 5 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum
