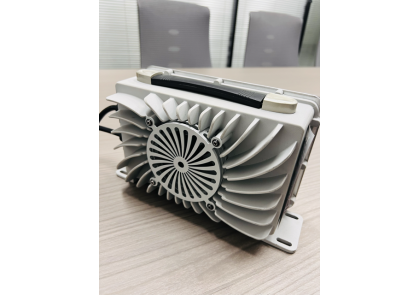

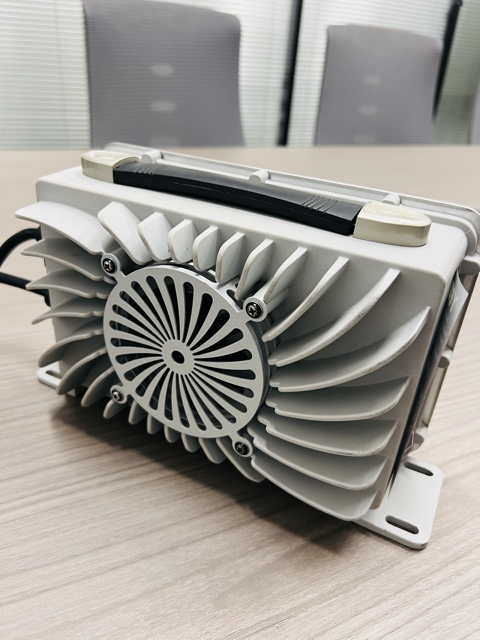

24V 50A Waterproof LiFePO4 Battery Charger
Item No.: UY1200S-2450
Dimension: 283×164×93mm
Net weight: 3.8kg
Input voltage: wide 90~264Vac with PFC
Case material: sealed aluminum
WaterProof rate: IP65 / IP66
Output rated: 24V 50A
Finish charging: 29.2V / 29.4V customized
Charge to battery: 24V LiFePO4 or Li-ion Battery
Smart Charging: Auto. Pre-charge, CC and CV
- Product Details
24V 50A Waterproof LiFePO4 Battery Charger
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110-230Vac (90~264Vac) with PFC, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 95%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable, on-board.
Introducing the 24V 50A Waterproof LiFePO4 Battery Charger (UY1200S-2450): The Ultimate Solution for Reliable Charging
Experience seamless and efficient charging with our state-of-the-art 24V 50A Waterproof LiFePO4 Battery Charger. Designed with advanced high-frequency switching mode power supply technology, this charger ensures optimal performance and safety for your 24V LiFePO4 or Li-ion batteries. Its compact and lightweight aluminum casing makes it highly portable and durable, perfect for on-board applications and outdoor use.
The UY1200S-2450 is equipped with smart charging capabilities, including automatic pre-charge, constant current (CC), constant voltage (CV), absorption, float, and cut-off modes. With customizable charging curves and a waterproof rating of IP65/IP66, this charger is ideal for demanding environments. It supports worldwide input voltages from 90 to 264Vac with power factor correction (PFC) and features two clear LEDs for easy monitoring.
The charger guarantees efficiency over 95% and offers robust protection against short circuits, over-voltage, over-temperature, and reverse polarity. Enjoy peace of mind with its 100% full-load burn-in test and forced ventilation system, ensuring consistent performance and longevity. Upgrade your charging setup today with this reliable and versatile 24V 50A Waterproof LiFePO4 Battery Charger!
