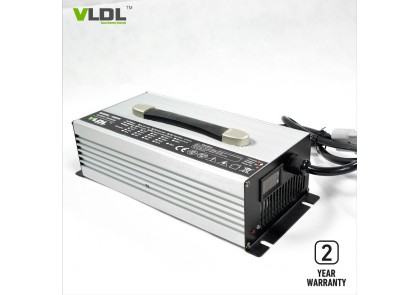

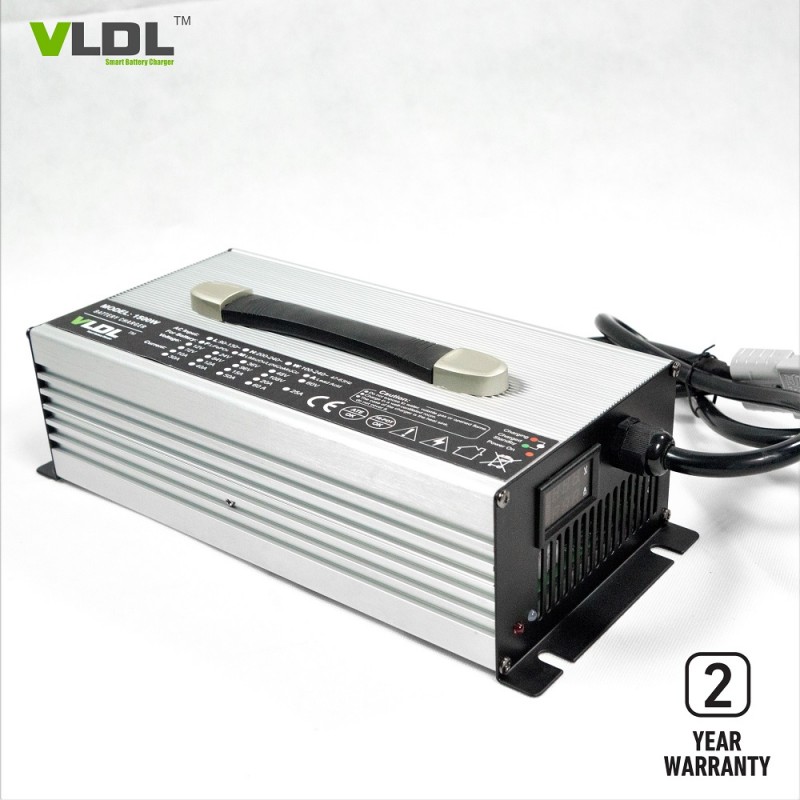

24V 50A LiFePO4 (LFP) Battery Charger
Dimensions: 300 x 150 x 90 mm
Net weight: 4.5 KG
Max charging voltage(CV): 29.2Vdc full charge
Max output current (CC): 50 amps
Charging method: Automatic CC, CV, Floating
AC input voltage: 110V or 230V
AC input freq.: 50 / 60 Hz
Enclosure: Aluminum
Warranty: 3 years
- Product Details
24V 50A LiFePO4 (LFP) Battery Charger
Brief Description:
Designed for 24V lithium battery, input with 110 or 230Vac and rated output voltage is 24V 50A. Smart max charging voltage is 28.8V 29.2V or 29.4V for li-ion, LiFePO4, NCM batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Features
1) Optional charging methods: Lithium or SLA batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Input 110/230Vac, 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
Technical Specs.:
1) Dimensions(LxWxH): 300 x 135 x 70 mm
2) Net weight: 4.5 KG
3) Max charging voltage(CV): 29.2Vdc full charge
4) Floating voltage: /
5) Max output current (CC): 50 amps
6) Charging method: Automatic CC, CV
7) AC input voltage: 110 / 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: custom-made
10) Output connector type: customized by applications
11) Enclosure: Aluminum
Automatic LiFePO4 battery charger 24V 50A is designed for 24V LPF battery pack. Totally micro-processor controlled and automatic charging by battery's state.
Max charging voltage can be set at 29.2V or customized for li-ion, LPF, NCM battery types.
As a 18 years battery charger factory, Danl New Energy guarantees 3 years warranty for all of our chargers, high quality and in 24 hours response after-service.
Bring reliable, competitive and smart charging solution to our customers all over the world is DANL's goal.
Output series: 1,500W Size: 300×150×90 mm Net weight: 4.5 KG | ||||||
Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1260L | 12V LiFePO4 Battery |
|
14.6V | 60A | CC5~8% |
VL1260 | 12V Lead-acid Battery | 13.5V | 14.7V | 60A | CC20% | |
VL1460 | 14V AGM Battery | 13.5V | 14.4V | 60A | CC20% | |
VL1660L | 16V LiFePO4 Battery |
|
18.2V | 60A | CC5~8% | |
VL2450LM | 24V Li-MnO2 Battery |
|
29.4V | 50A | CC5~8% | |
VL2450L | 24V LiFePO4 Battery |
|
29.2V | 50A | CC5~8% | |
VL2450 | 24V Lead-acid Battery | 27.6V | 29.4V | 50A | CC20% | |
VL3630LM | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | |
VL3630L | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
VL3630 | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | |
VL4825LM | 48V Li-MnO2 Battery |
|
54.6V | 25A | CC5~8% | |
VL4825L | 48V LiFePO4 Battery |
|
43.8V | 25A | CC5~8% | |
VL4825 | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | |
VL6020L | 60V LiFePO4 Battery |
|
73V | 20A | CC5~8% | |
VL6020 | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | |
VL7215L | 72V LiFePO4 Battery |
|
87.6V | 15A | CC5~8% | |
VL7215 | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | |
VL8413L | 84V LiFePO4 Battery |
|
102.2V | 13A | CC5~8% | |
VL8413 | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% | |
VL9612L | 96V LiFePO4 Battery |
|
110V | 12A | CC5~8% | |
VL9612 | 96V Lead-acid Battery | 108V | 110V | 12A | CC20% | |
Note: customized input / output / plug type / connectors are available |
