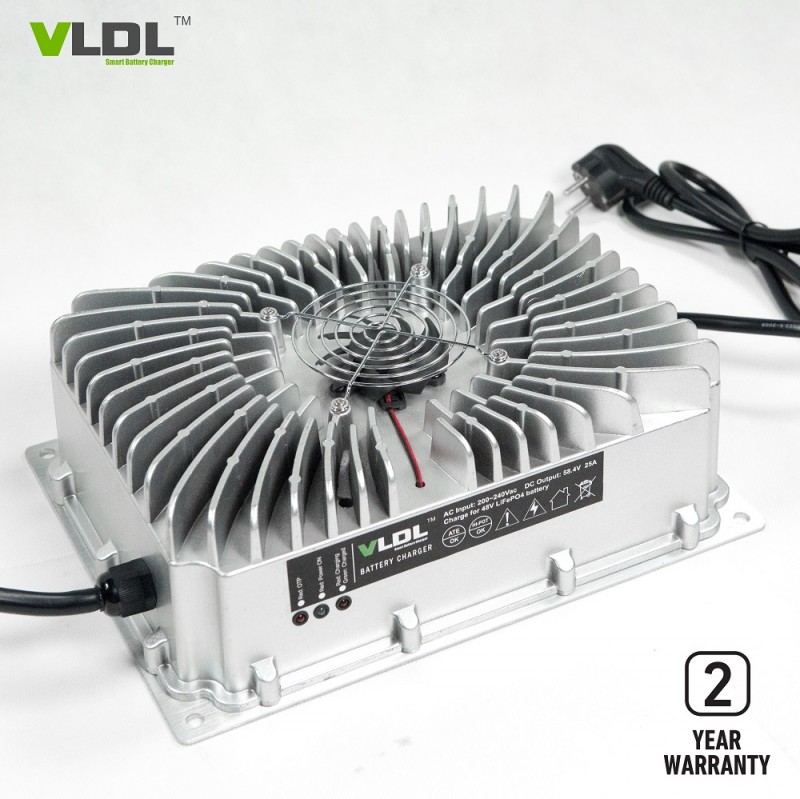

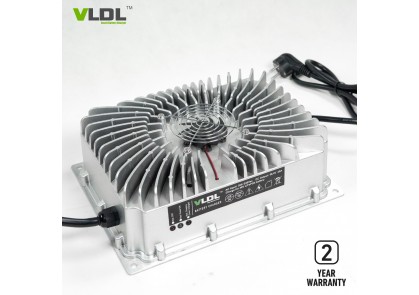

24V 45A Waterproof Battery Charger

24V 45A Waterproof Battery Charger High Power For AGM / GEL / Lead Acid Battery

Brief Descriptions:

Waterproof / water - resist 24V 45A on-board smart battery charger with IP65 rate is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or boat application, input with PFC worldwide 110 to 230Vac and rated output voltage is 12V 60A. Smart max charging voltage is 29.2/ 29.4V for lead acid (sealed, AGM) type batteries and 29.4V for LiFePO4 batteries. MCU controlled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycles very fast, with high efficiency and protect your battery life to max.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 240Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full).

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable, on-board.

Technical Specs.:

1) Dimensions(LxWxH): 310 × 230 × 101 MM

2) Net weight: 8.0 KG

3) Max charging voltage(CV): 29.2 / 29.4 volt

4) Floating voltage: customized

5) Max output current (CC): 45 amps

6) Charging method: pre-charge, CC, CV, floating

7) AC input voltage: wide 110 - 240Vac with PFC

8) AC input freq.: 50 / 60 Hz

9) AC plug: AU, US, Euro, India etc.

10) Output connector type: clips, Anderson, etc

11) Enclosure: Aluminum

12) Waterproof rate: IP65
