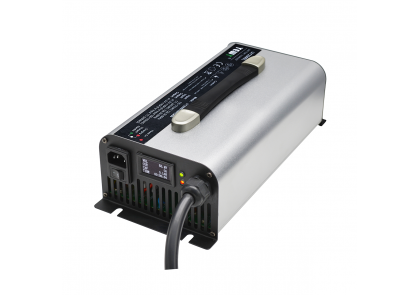

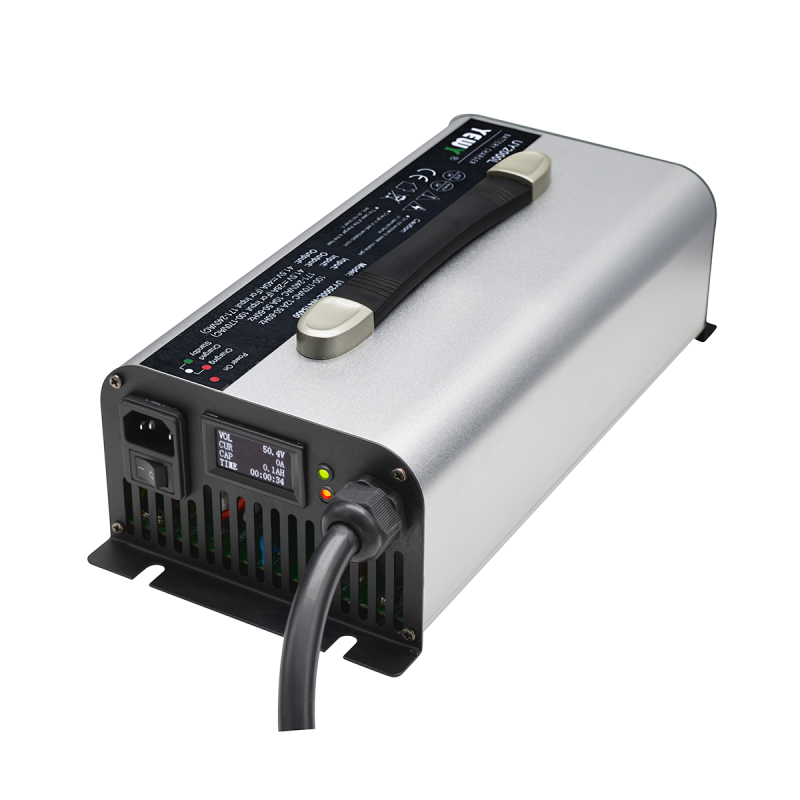

24V 40A PFC Lithium Battery Charger
Item No.: UY2000L-2440
Input voltage: universal 110-230Vac
Power factor: 0.99
Rated output: 24V 40A
Max charging: 28.8.V 29.2V customized
Applied to battery types: 24V lithium battery
Smart Charging: Pre-charge, CC, CV, Cut-off
Case material: Aluminum
Size: 316×150×103 mm
Net weight: 3.6 kg
Warranty: 2 years
- Product Details
24V 40A PFC Lithium Battery Charger with Universal 110-230Vac Input
Brief Descriptions:
24V 40A output PFC Battery Charger.
Universal 110~230Vac input voltage with PFC.
28.8V / 29.2 / 29.4V customized max charging voltage for lithium batteries.
LCD display of charging status.
Micro-processor controlled and intelligent 4 steps charging.
92% high efficiency.
Power Factor: >0.95
2 years warranty, high quality.
Specifications:
AC input voltage: universal 90 to 264Vac with PFC
AC input freq.: 50 / 60 Hz
Rated output: 24V 40A
Max charging voltage: 28.8V / 29.2V / 29.4V
Dimensions(LxWxH): 316 x 150 x 103 mm
Net weight: 3.6 KG
Housing: Aluminum
Color: silver
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU controlled
PFC circuit with high efficiency
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Applications:
Charging 24V NMC, LPF lithium ion batteries.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
The 24V 40A PFC Lithium Battery Charger is a high-quality product manufactured by Danl New Energy Co., Limited. It is designed to charge 24V NCM, LPF lithium batteries with smart pre-charge, CC, CV and Cut off charging. The charger features a universal input voltage of 110-230Vac with PFC (power factor correction) of 0.99 and advanced power switching mode technology.
Danl New Energy Co., Limited is a leading smart battery charger manufacturer in China that specializes in manufacturing smart lithium battery chargers and lead-acid battery chargers with output ranging from 48V4A to 84V20A. The company offers factory prices and a 2-year warranty for their products.
The 24V 40A PFC Lithium Battery Charger is an ideal choice for those who are looking for a reliable and efficient battery charger. With its advanced technology and high-quality components, this charger ensures that your batteries are charged quickly and safely.
In addition to its technical features, the 24V 40A PFC Lithium Battery Charger is also designed with user convenience in mind. Its compact size makes it easy to store and transport, while its universal input voltage means that it can be used in different countries around the world.
Overall, the 24V 40A PFC Lithium Battery Charger is an excellent product that offers high-quality performance at an affordable price. Whether you are a professional or a hobbyist, this charger is sure to meet your needs and exceed your expectations.
