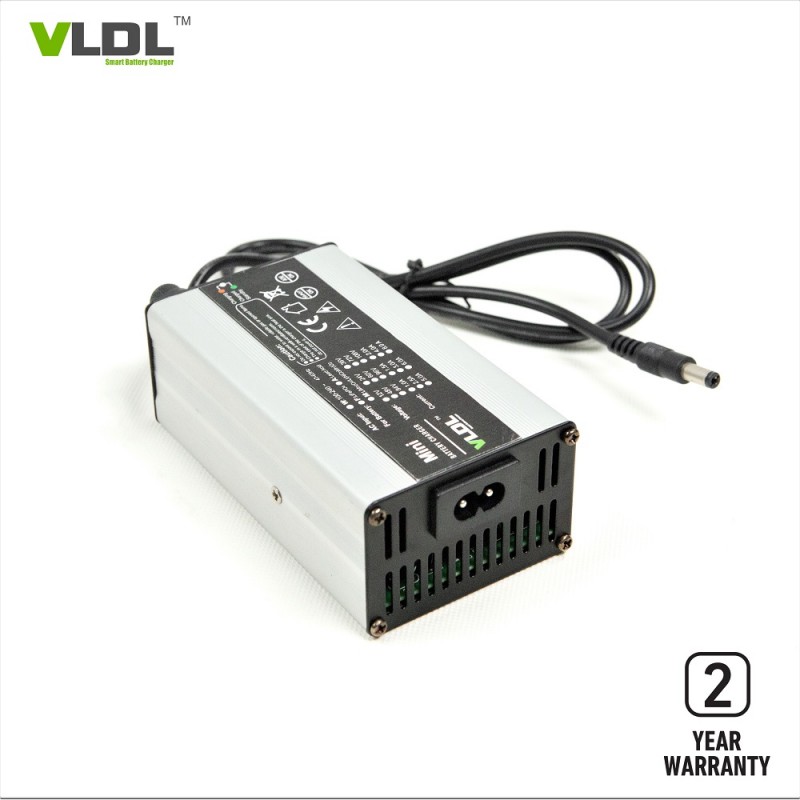

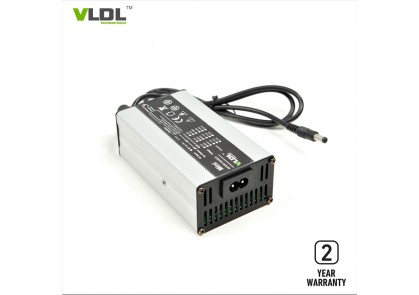

24V 3A SLA Battery Charger

24V 3A SLA Battery Charger

Brief Description:
Lead-acid battery charger 24V 3A with universal 110 - 230 vac input. Black or silver aluminum casing. Rated ouput 24V 4A and max charging voltage is 29.4V.
As a swtiching mode technology battery charger, it has small size and light weight, much portable for user. This charger has intelligent 4 steps charging method and charge your Lithium types inclduing Li-ion, LiFePO4, Li-polymer batteries with fast speed and high efficiency. It is a fully automatic charging charger, just power on and connect it to your battery and then leave it alone.

Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
1 LED: LED Red-Charging, LED Green-Fully Charged or Stand by
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 88%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.

Technical Specs.:
Dimensions(LxWxH): 120 x 69 x 45mm
Net weight: 0.6 KG
Max charging voltage(CV): 29.4V
Floating voltage: 27.6V
Max output current (CC): 3 amps
Charging method: Pre-charge, CC, CV, floating
AC input voltage: 110-230Vac universal
AC input freq.: 50/60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum

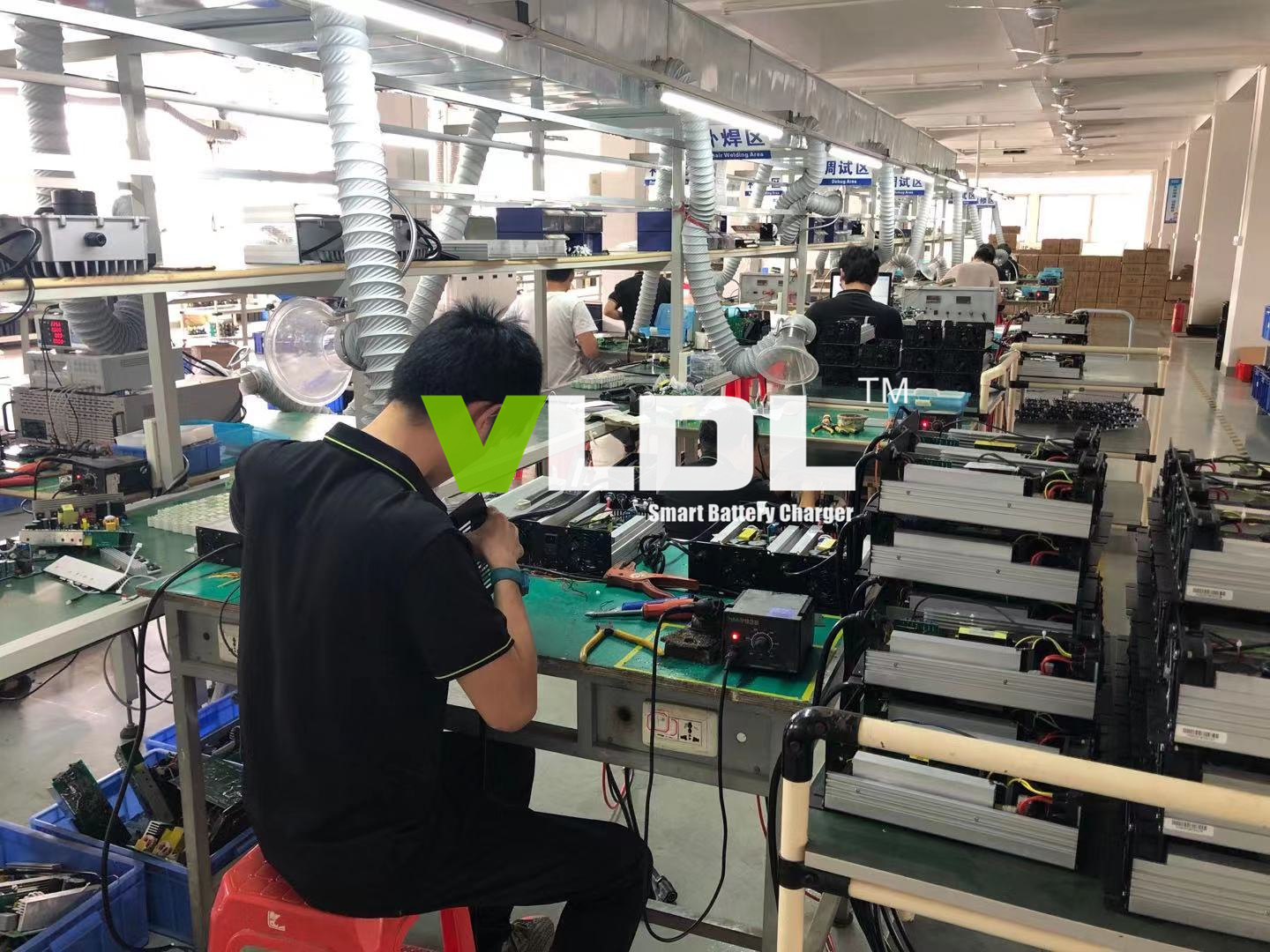

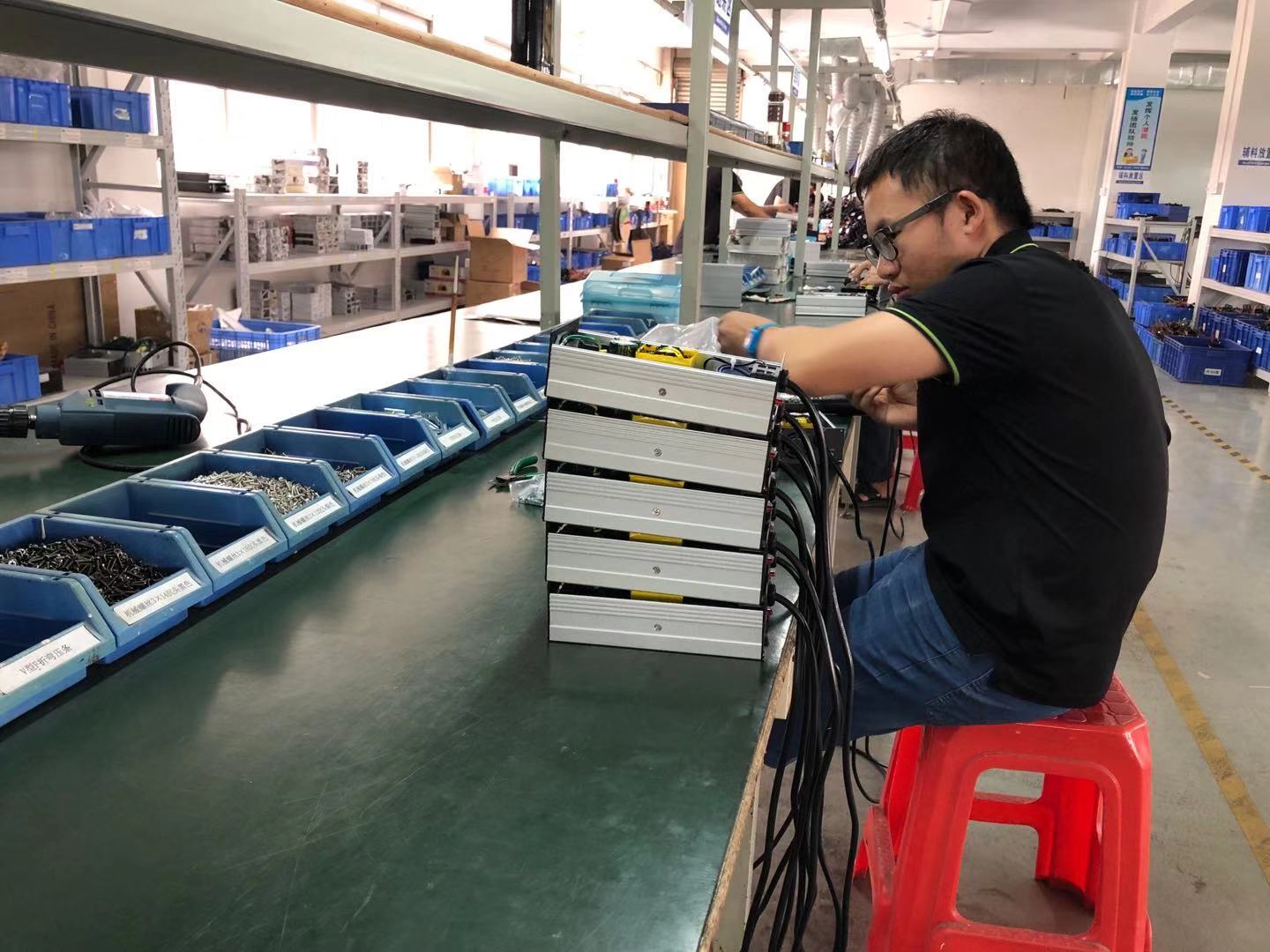

Factory Pictures:
