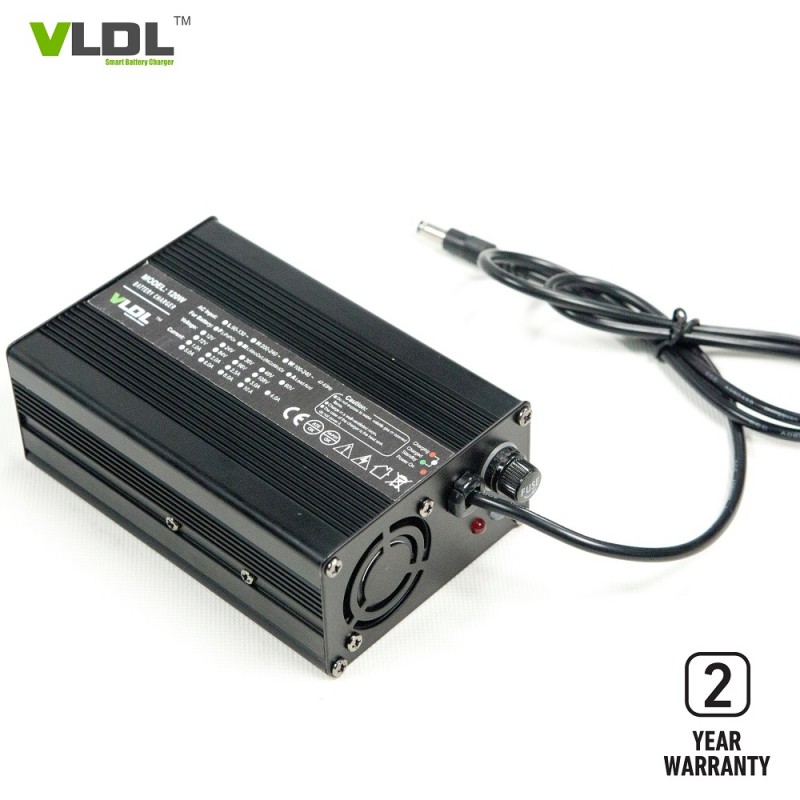

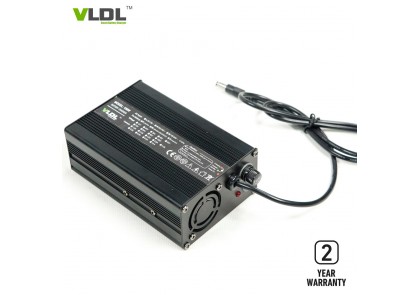

24V 3A E-Bike Automatic Charger

24V 3A E-Bike Automatic Charger

Brief Description:

Electric bike charger 24 volts 3 amps, smart four steps charging with floating / trickle step. Designed for 24V lithium or lead acid battery powered electric bikes / bicyles, input with worldwide 110 to 230Vac and rated output voltatge is 24V 3A. Smart max charging voltage is 29.2V for lead acid type batteries (AGM, GEL, Deep cycle) and 29.4V for lithium (LiFePO4, Li ion, Li MO2) batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating / trickle or automatic cut-off, this charger will charge your electric bikes/bicycles very fast, with high efficiency and pretect your battery life maximumly.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging / full).

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 85%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:
Dimensions(LxWxH): 135 x 90 x 50 mm
Net weight: 0.8 KG
Max charging voltage(CV): 29.2 / 29.4 volts
Floating voltage: customized
Max output current (CC): 3 amps
Charging method: pre-charge, CC, CV, floating / trickle or shut off
AC input voltage: 110 - 240Vac worldwide
AC input freq.: 50 / 60 Hz
AC plug: customized by user’s country
Output connector type: customized by applications
Enclosure: Aluminum
