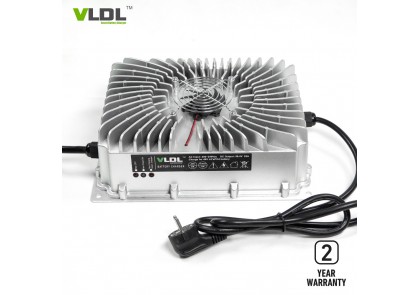

24V 35A Waterproof Battery Charger

EMC Certified 24V 35A Waterproof Battery Charger, wide 90~264V input, IP65

Brief Descriptions:

Waterproof/Marine Battery Charger 24V 35A with IP65 rate waterproof, is designed for lithium battery powered electric cars or boat appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 24V 35A. Smart max charging voltage is 29.2V or29.4V for Li-ion / LiFePO4 batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

1) Dimensions(LxWxH): 310 × 230 × 101 MM

2) Net weight: 8.0 KG

3) Max charging voltage(CV): 29.2 / 29.4 volt

4) Floating voltage: /

5) Max output current (CC): 35 amps

6) Charging method: Pre-charge, CC, CV

7) AC input voltage: 90-264 Vac universal

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum

12) Waterproof rate: IP65
