24V 35A PFC Lithium Battery Charger
Item No.: UY2000L-2435
AC input voltage: universal 110-230Vac
Rated DC output: 24V 35A
Max charging: 28.8.V 29.2V customized
Charge battery type: 24V lithium battery
Smart Charging: Pre-charge, CC, CV, Cut-off
Case material: Aluminum
Size: 316×150×103 mm
Net weight: 3.6 kg
Warranty: 3 years
- Product Details

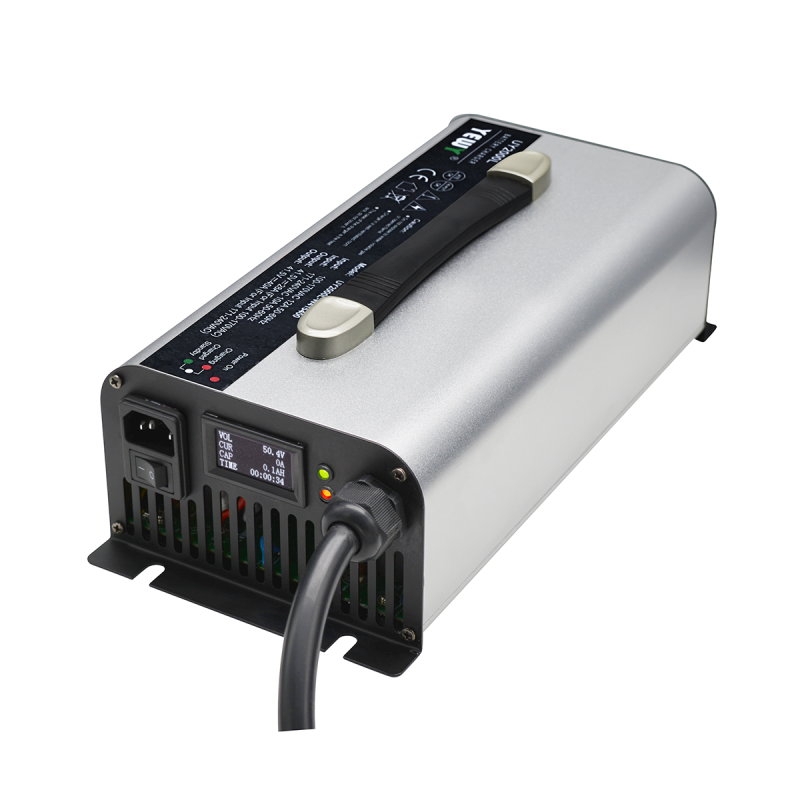

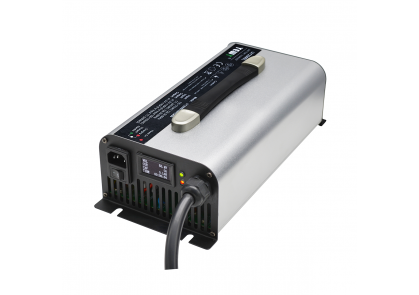

24V 35A PFC Lithium Battery Charger with Universal 110-230Vac Input
Brief Descriptions:
24V 35A output PFC Battery Charger.
Universal 110~230Vac input voltage with PFC.
28.8V / 29.2 / 29.4V customized max charging voltage for lithium batteries.
LCD display of charging status.
Micro-processor controlled and intelligent 4 steps charging.
92% high efficiency.
Power Factor: >0.95
3 years warranty, high quality.
Specifications:
AC input voltage: universal 90 to 264Vac with PFC
AC input freq.: 50 / 60 Hz
Rated output: 24V 35A
Max charging voltage: 28.8V / 29.2V / 29.4V
Dimensions(LxWxH): 316 x 150 x 103 mm
Net weight: 3.6 KG
Housing: Aluminum
Color: silver
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU controlled
PFC circuit with high efficiency
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 3-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Applications:
Charging 24V NMC, LPF lithium ion batteries.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
China leading 24V 35A lithium battery charger manufacturer and supplier.
Original Manufacturer with Factory Price
High Quality with 3 Years Warranty
