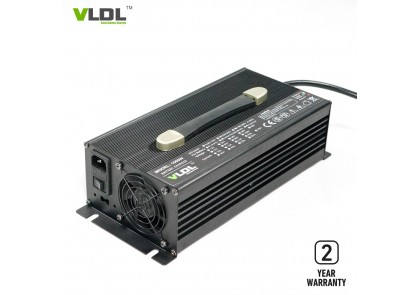

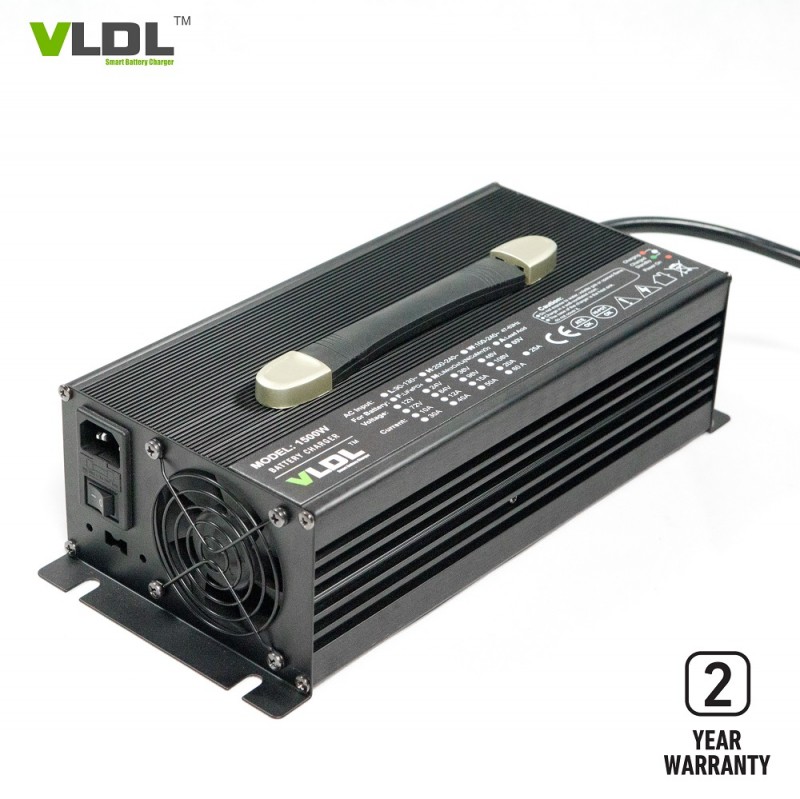

24V 33.6V 40A Li-ion Battery Charger

24V (Max 33.6V) 40A Li-ion Battery Charger

Brief Description:

Designed for 8S 4.2V/cell lithium ion battery, input with 110 or 230Vac and rated output voltage is 24V 40A. Smart max charging voltage is 33.6V Lithium-ion batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Input 110/230Vac, 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 260 x 150 x 90 mm

2) Net weight: 4.5 KG

3) Max charging voltage(CV): 33.6 volt

4) Floating voltage: /

5) Max output current (CC): 40 amps

6) Charging method: Automatic CC, CV

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum

24V 40A High-Efficiency Li-ion Battery Charger – Smart Charging for Racing & Industrial Applications

Danl’s 24V 40A Lithium-Ion Battery Charger is engineered for high-performance charging of 8S Li-ion batteries, delivering a maximum voltage of 33.6V to ensure rapid, safe, and efficient power delivery. Designed for demanding applications like racing batteries, industrial equipment, and energy storage systems, this charger combines cutting-edge technology with rugged durability.

Smart Charging Technology
Utilizing an advanced 4-step charging process (pre-charge, CC, CV, floating/auto cut-off), this charger maximizes battery lifespan while reducing charging time. Its intelligent microprocessor-controlled system adapts seamlessly to 110/230Vac inputs (50/60Hz) and maintains stable charging parameters regardless of line voltage fluctuations. The high-frequency switching mode power supply ensures 100% full-load efficiency and minimal energy loss, making it ideal for high-power applications.

Durable & Lightweight Design
Housed in a portable aluminum enclosure (260x150x90mm, 4.5kg), the charger is built for both mobility and resilience. The lightweight yet robust casing provides excellent heat dissipation, ensuring reliable operation even under heavy use. A 100% full-load burn-in test guarantees performance consistency and longevity.

Advanced Protections & Versatility
Equipped with comprehensive safeguards against short circuits, over-voltage, over-temperature, and reverse polarity, this charger prioritizes safety. It supports both Li-ion batteries (auto cut-off) and AGM batteries (floating mode), offering flexibility for diverse energy needs. Customizable AC plugs and output connectors allow seamless integration into specialized setups, from racing vehicles to solar storage systems.

Global Compatibility & Warranty
With universal voltage input and a 2-year warranty (including free replacement), Danl ensures unmatched reliability and customer support. The charger’s DC output is isolated from AC input, enhancing safety in sensitive environments.

24V 40A Li-ion battery charger, 33.6V max racing battery charger, high-frequency switching charger, industrial lithium charger, custom AGM/Li-ion charger, 8S battery charging solution.

Ideal for professionals and enthusiasts seeking speed, safety, and adaptability, this charger delivers premium performance at competitive factory pricing. Trust Danl for advanced charging solutions built to power tomorrow’s innovations.
