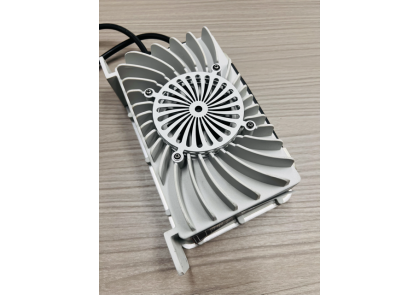

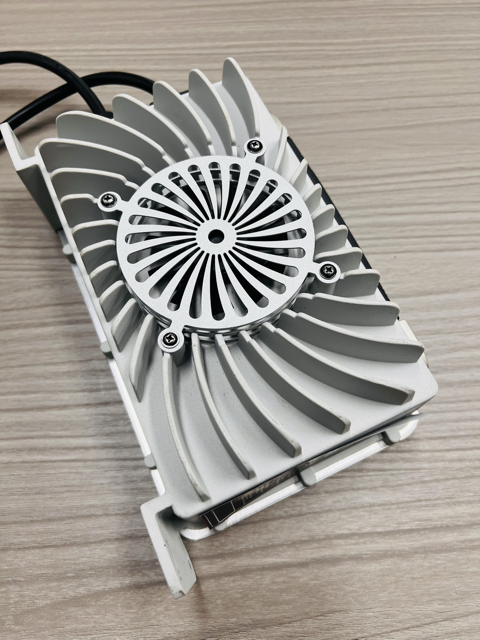

24V 30A Marine Lead Acid Battery Charger
Item No.: UY1200S-2430
Dimension: 283×164×93mm
Net weight: 3.8kg
Input voltage: wide 90~264Vac with PFC
Case material: sealed aluminum
Certificate: CE from TUV
WaterProof rate: IP65 / IP66
Output rated: 24V 30A
Max charging: 28.8V / 29.4V customized
Applied to battery Types: 24V Lead Acid Battery
Smart Charging: Soft start, CC, CV and Float
- Product Details
24V 30A Waterproof Lead Acid Battery Charger
Brief Descriptions:
24V 30A rated output Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 90~264Vac input voltage with PFC circuit.
28.8V / 29.4V customized max charging voltage for lead-acid batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
CE certification from TUV.
2 years warranty, high quality.
Technical Specs.:
Dimensions: 283 × 164 × 93 MM
Net weight: 3.8 KG
Max charging voltage(CV): 28.8V / 29.4V (customized)
Max output current (CC): 30 amps
Charging method: Soft start, CC, CV and Float
AC input voltage: 90-264 Vac universal with PFC
AC input frequency.: 50 / 60 Hz
AC plug types: UK, Euro, US, AU, India
Output connector types: supply free Clips, Anderson 50A.
Enclosure: Aluminum
Waterproof rate: IP65 / IP66
LED RED flashing: FAULT.
What is the PFC circuit?
This 24V 30A Smart Waterproof Battery Charger has PFC circuit, you may ask What is the PFC circuit? Let explain:
"Power factor correction (PFC) circuit is added to a power supply circuit to bring its power factor close to 1.0 or reduce harmonics. ... To reduce the size and improve the efficiency of power supplies, switching PFC circuits in various topologies have appeared, including interleaved and bridgeless PFC."
The battery charger manufacturing cost will rise about 20% it has PFC circuit. We add PFC to all of our waterproof smart battery chargers. You can check if there is PFC circuit when you are choosing a waterproof charger, not only compare the price because you will find that the PFC chargers will much expensive the non-PFC chargers.
Factory:
Newly made 1200S 24V 30A waterproof chargers, our QC staff are carefully doing appearance inspection and final test, ensuring there is no any tiny defects for these chargers.
