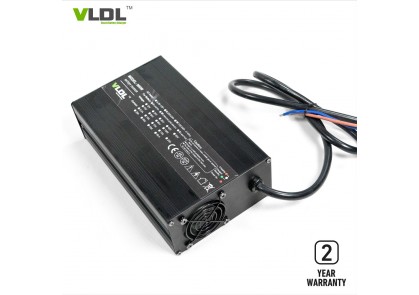

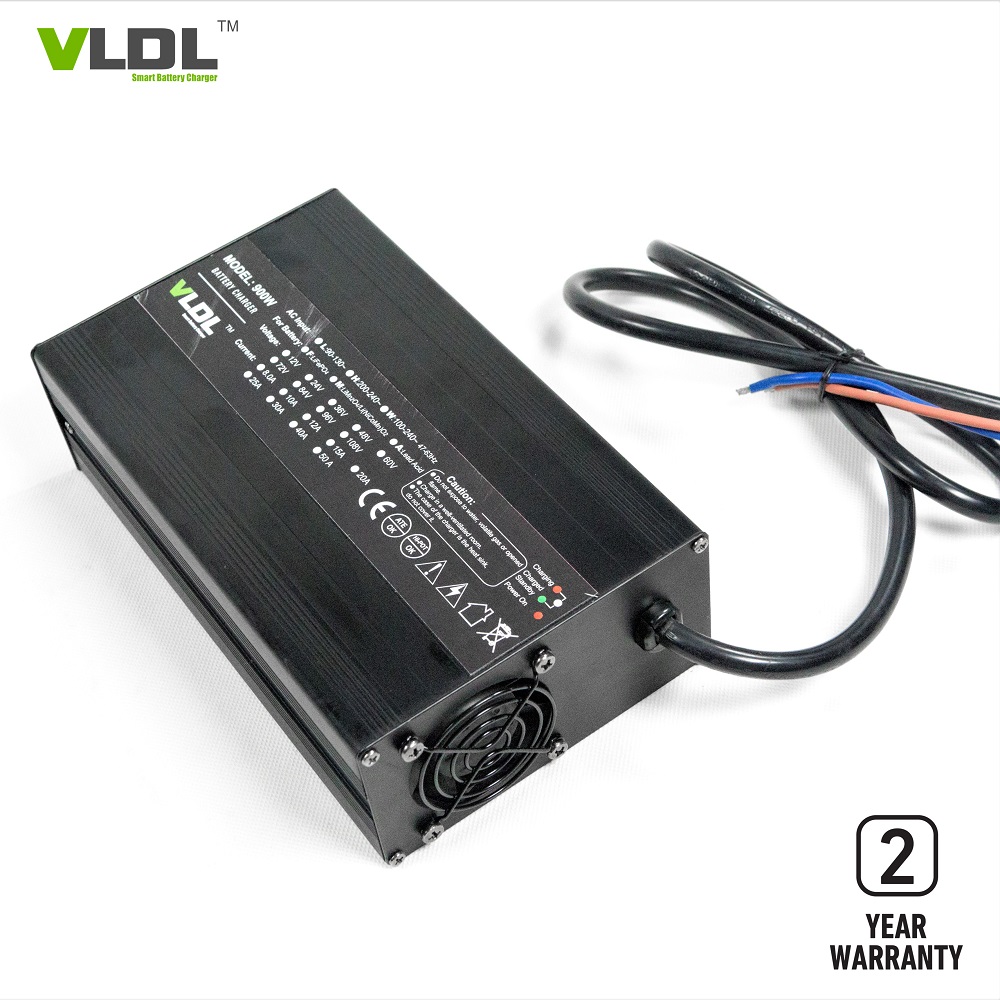

24V 30A Lithium-ion Battery Charger

24V 30A Lithium-ion Battery Charger
Factory price and 2 years warranty

Brief Description:
Designed for 24V lithium battery, input with single 110V or 230V and rated output voltage is 24V 30A. Smart max charging voltage is 28.8V or 29.2V or 29.4V for 24V NCM or LPF lithium ion batteries. Intelligent 4 steps charging with Pre-charge, CC, CV and Cut-off. This charger will charge your 24V lithium battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features:

Optional charging for: 24V NCM, LPF lithium batteries.

Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Single AC input 110 or 230V, 50Hz~60Hz
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.

Technical Specs.:
Dimensions(LxWxH): 230 x 135 x 70 mm
Net weight: 3.0 KG
Max charging voltage(CV): 29.2V 29.4V customized
Max output current (CC): 30 amps
Charging method: Pre-charge, CC, CV, cut off
AC input voltage: 110-230Vac (90~264Vdc)
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum
