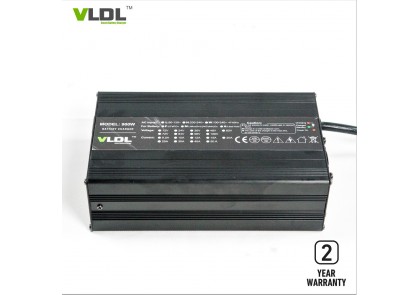

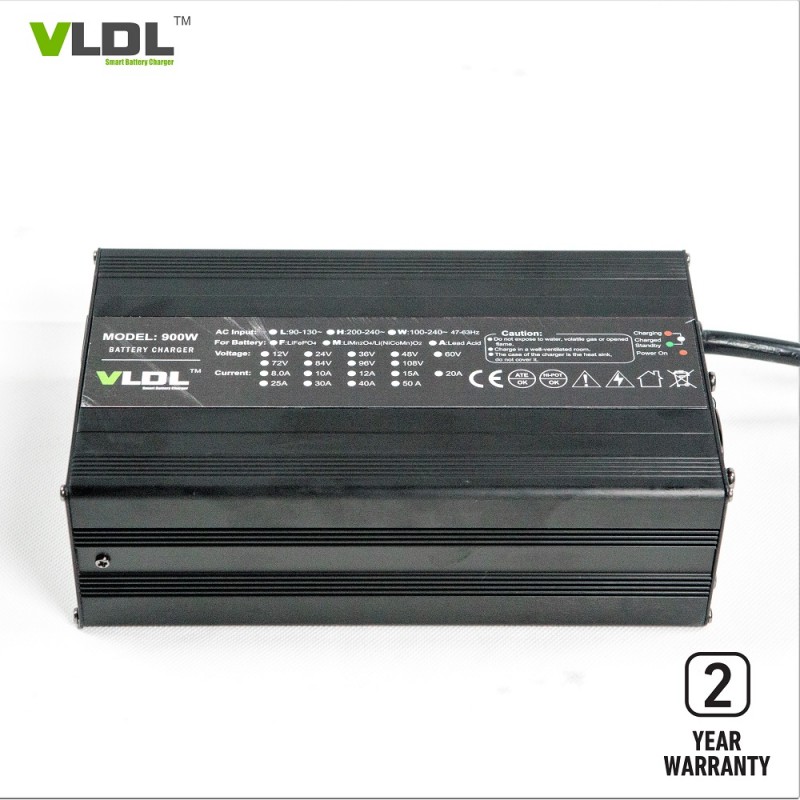

24V 25A AGM Battery Charger
Color Option: Silver or Black
Applied to battery types : 24V Sealed Lead-acid, AGM, GEL
Charging EV types: Electric AGV carts, E-tractors
Charging method: Automatic CC, CV and Floating
Size: 230 x 135 x 70mm
Input voltage: 110V or 230V
Rated output: 24Vdc, 25Amps
Max charging: 28.8V or 29.4V
- Product Details
24V 25A AGM Battery Charger, 28.8V 29.4V max charging
Brief Description:
Input voltage: 110 or 230Vac
Frequency: 50/60Hz
Rated output: 24V 25A
Max charging: 28.8V/ 29.2V 25A
Charging method: auto. CC, CV and Float
Case material: aluminum
Small size: 230*135*70mm
Efficiency: >85%
Warranty: 2 years
Features
1) Optional charging methods: Lithium or AGM batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Input 110/230Vac, 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.

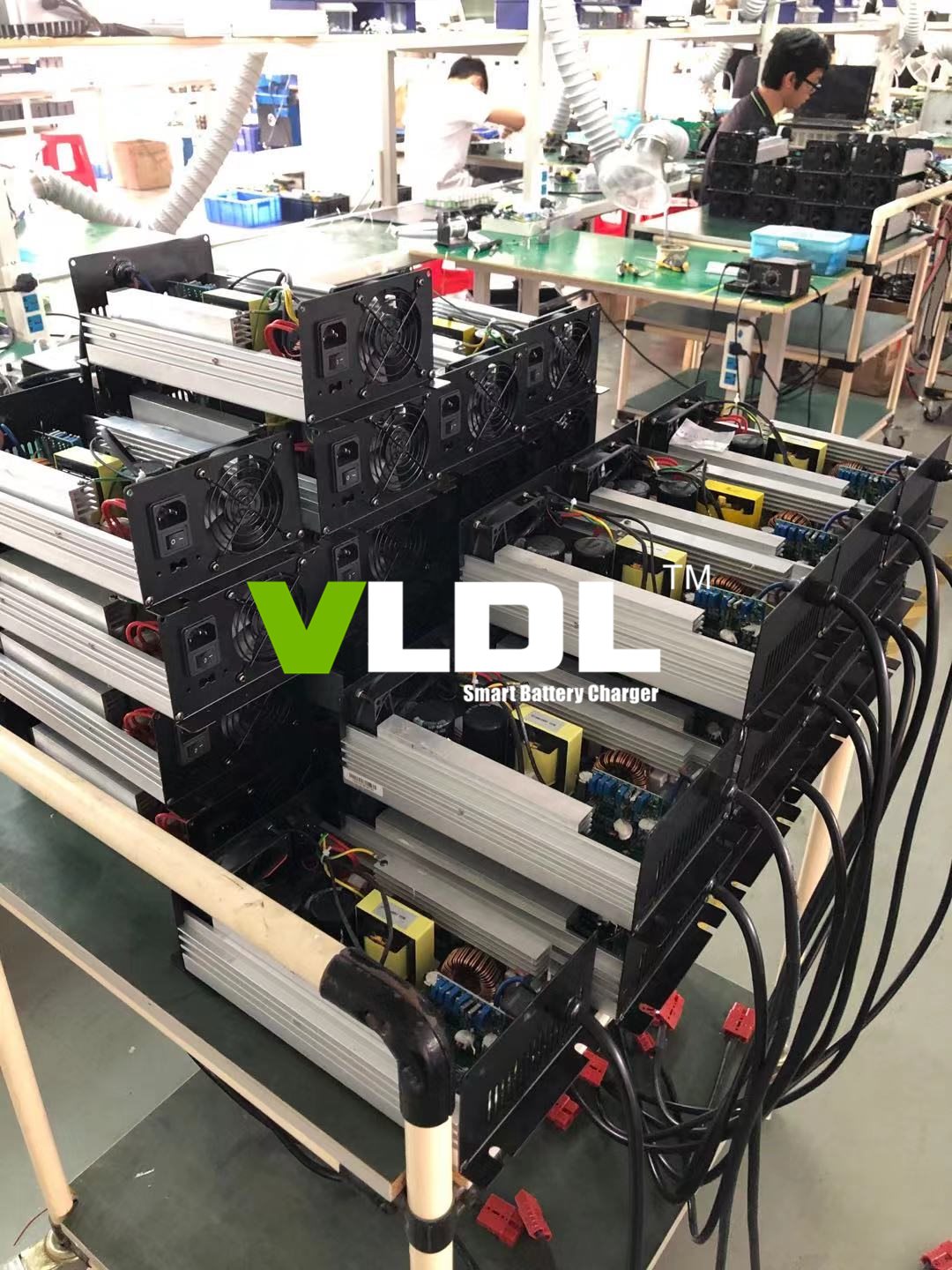

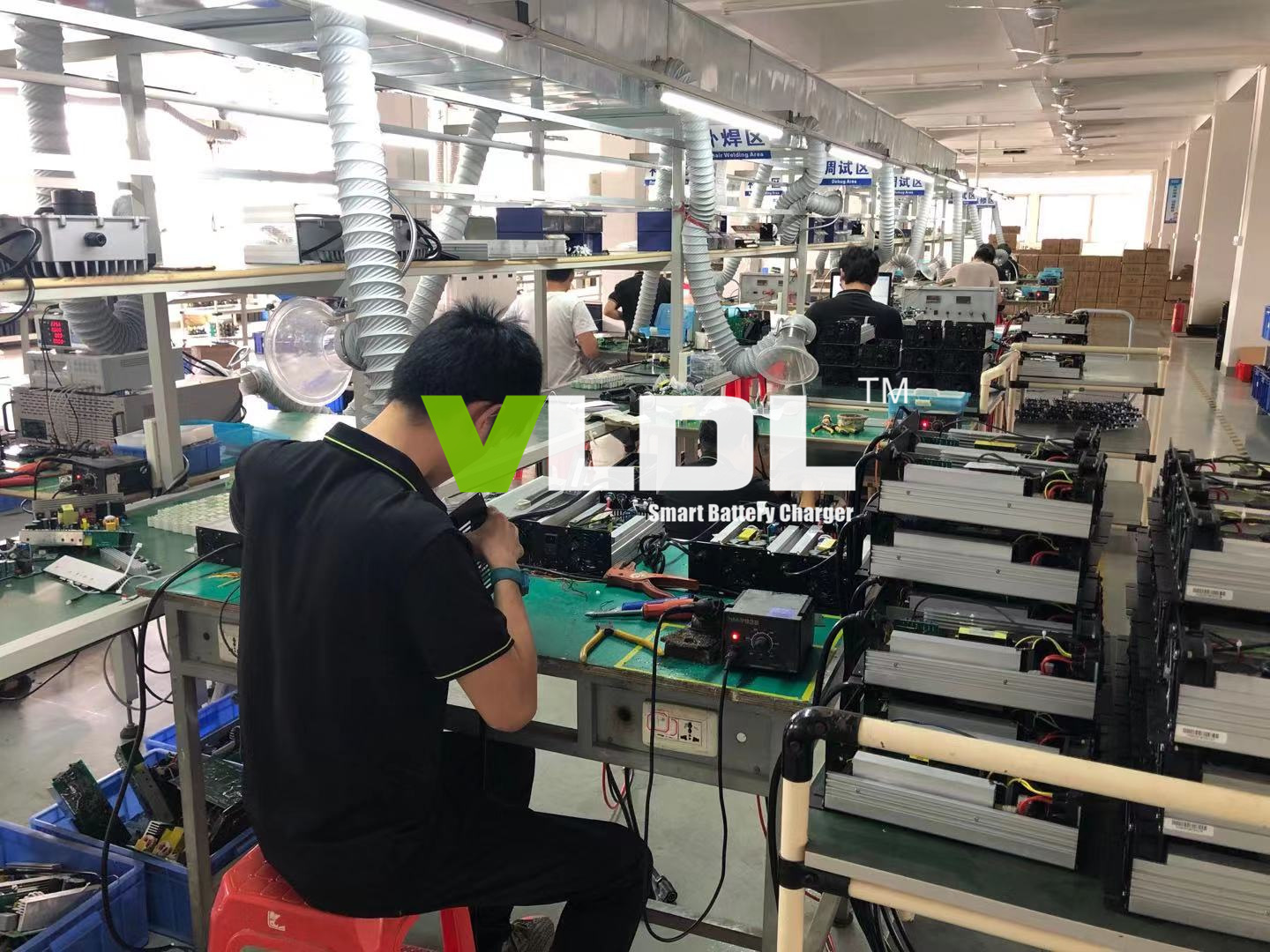

Factory pictures:
