24V 20A Lead acid Battery Charger

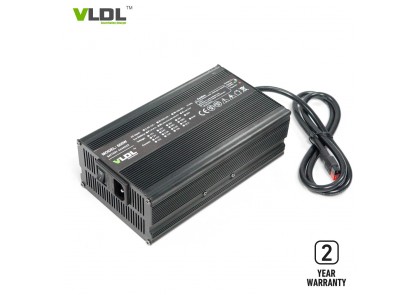

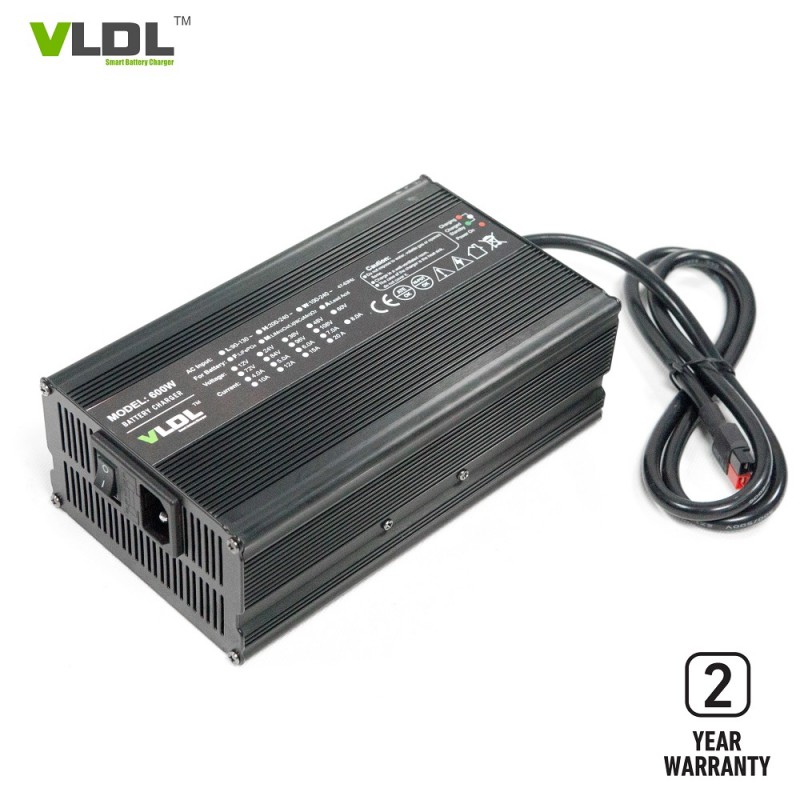

24V 28.8V 29.4V 20A Smart Lead Acid Battery Charger

Brief Descriptions:

This 24V 20A smart lead-acid battery charger is designed for 24V lithium / lead acid battery power electric mobility scooters. It can charge 24V lead acid, AGM, sealed deepcycle and lithium types batteries. Smart charging with pre-charge, CC, CV and floating or automatic cut-off method. With max 28.8V / 29.4V / 29.2 Volt 20 Amps fast charging and multi-protections.

Technical Specs.:

1) Dimensions(LxWxH): 220 x 120 x 70 mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 29.4 / 28.8 Vdc

4) Floating voltage: 27.6 Vdc

5) Max output current (CC): 20 amps

6) Charging method: pre-charge, CC, CV, floating

7) AC input voltage: 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Features

1) Optional charging methods: SLA, AGM, GEL, Flooded.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Additional information

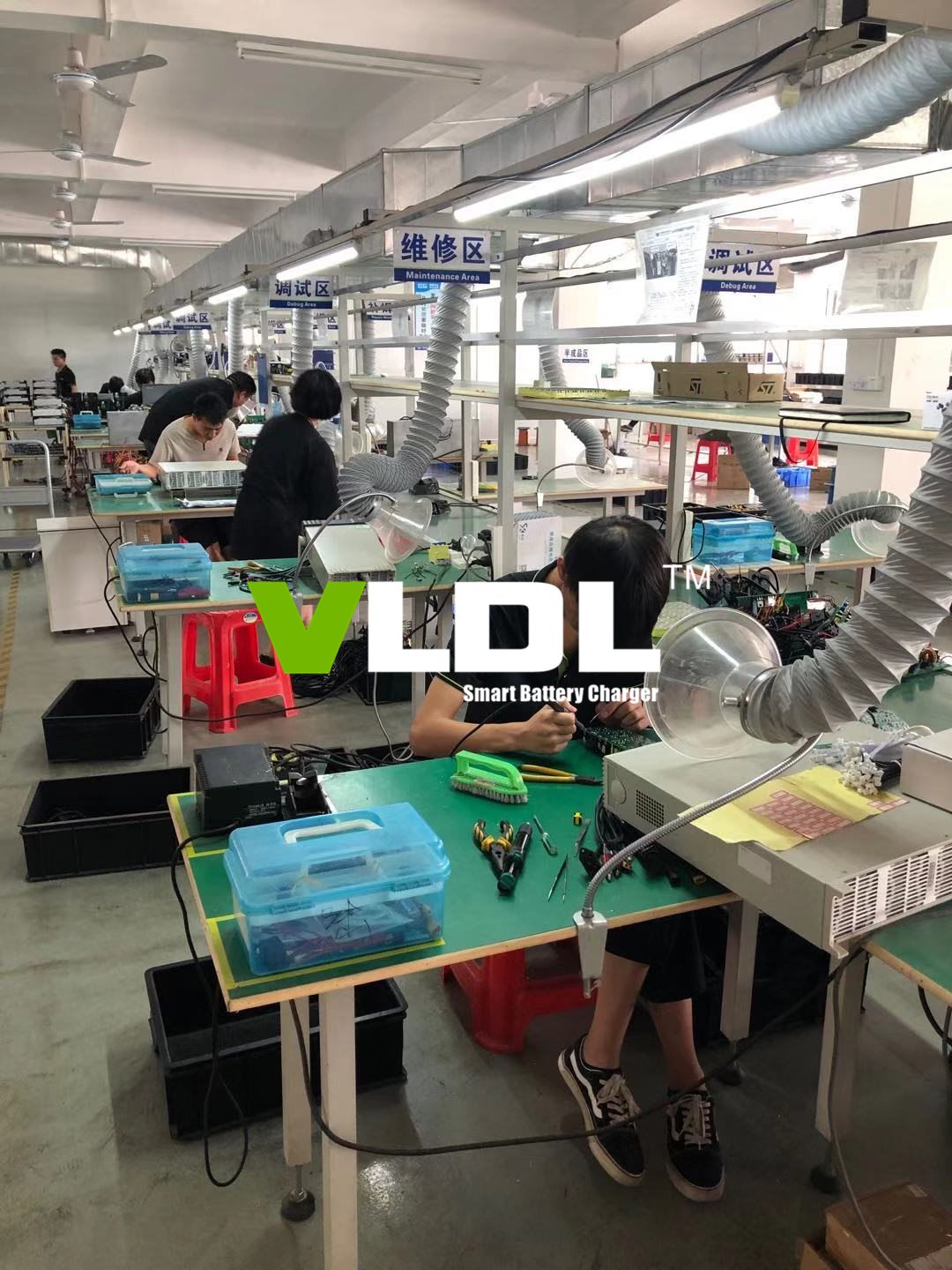

DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
