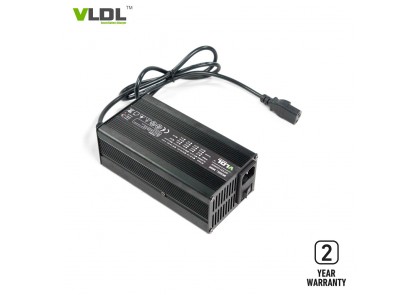

24V 12A LiFePO4 Battery Charger
Item No.: VL2412L
Size: 170 x 90 x 63 mm
Net weight: 1.5 KG
Max charging voltage(CV): 29.2 volts
Max output current (CC): 12 amps
Charging method: CC, CV, Float or Trickle
AC input voltage: 110Vac or 230Vac
Input socket: EU/AU/UK/US
Case material: Aluminum Shell
Warranty: 2 years
- Product Details

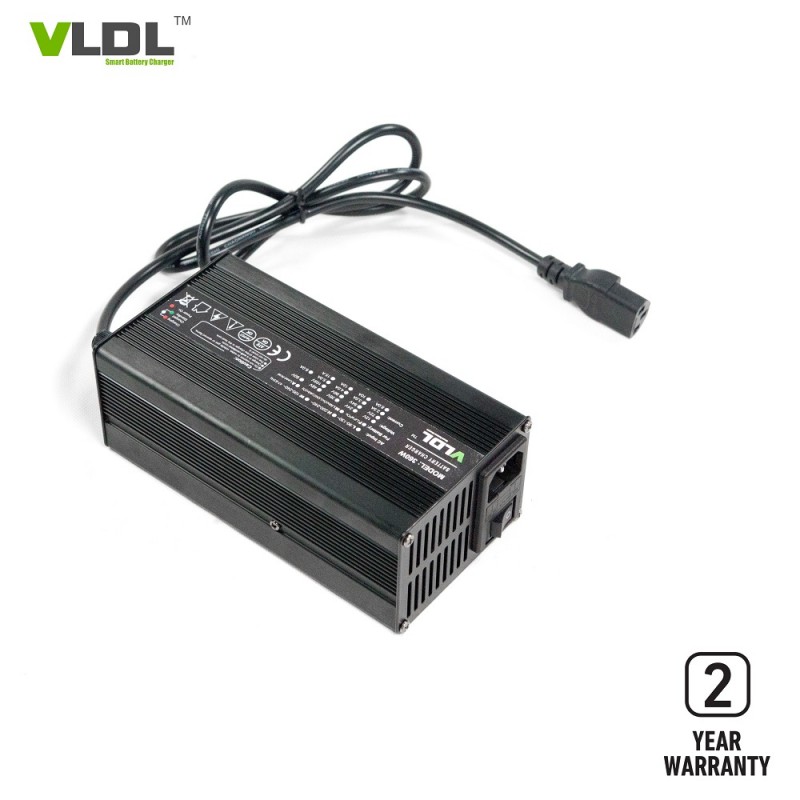

24V 12A Automatic LiFePO4 Battery Charger

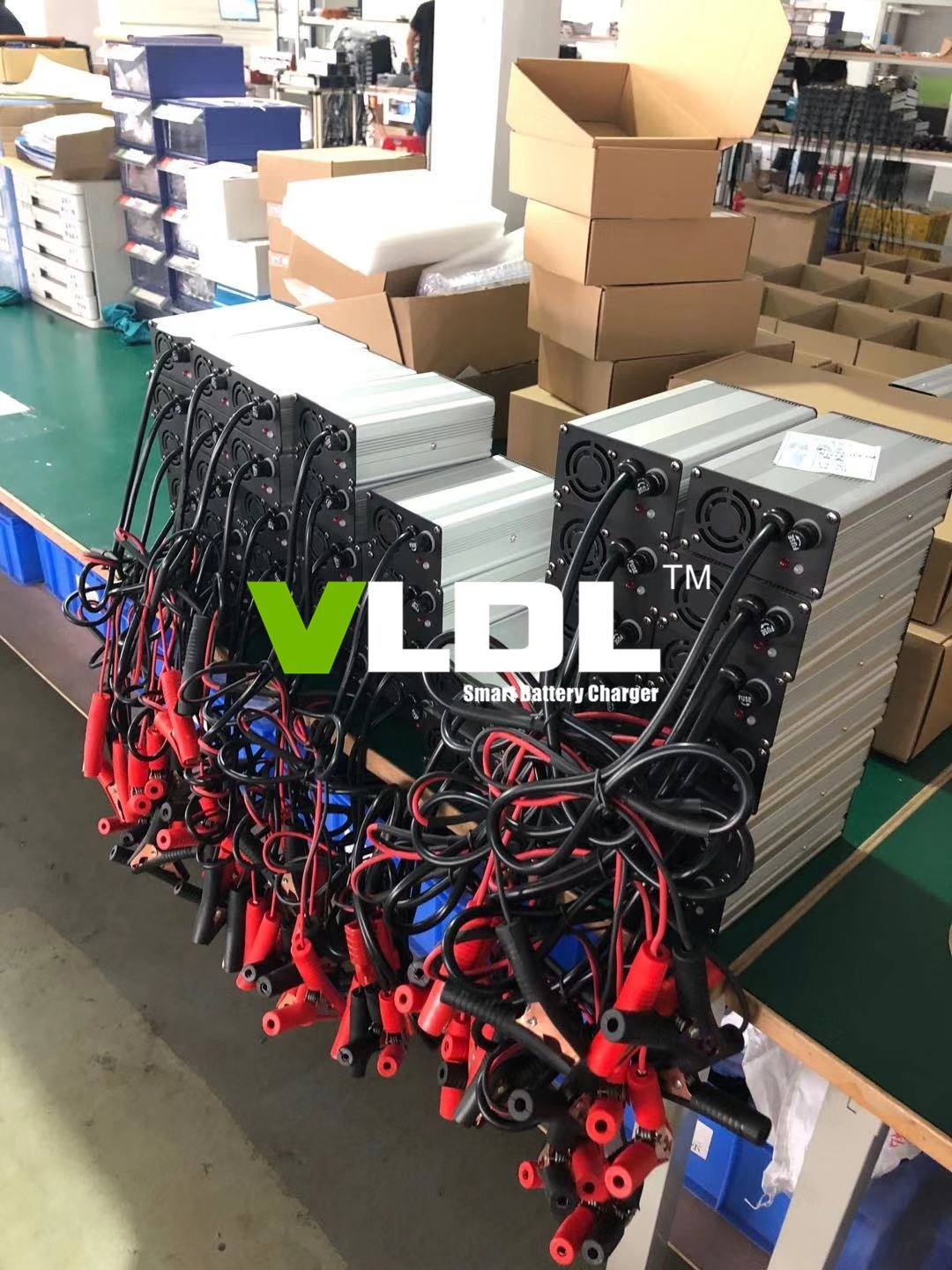

15 years battery charger manufacturer and 13 years of exporting experience supplier
Output Options
|
12V |
12V |
24V |
36V |
48V |
(Customized) |
|
15A |
20 A |
12A |
8A |
5A |
|
DC Output
|
Output voltage range |
12V - 48V dc (Customized) |
|
Efficiency Max Load |
>0.99 |
|
Charging Current |
5A -20A dc (Customized) |
|
Power |
300W |
|
Battery Type |
Lead-acid battery & Lithium-ion battery |
|
Operating temperature |
-30℃—+85℃ |
AC Input
|
Input voltage |
110Vac (90-132V) or 220Vac (180-264V) |
|
Input frequency |
50-60HZ |
|
Power factor |
≥0.99 |
|
Efficiency |
≥86% |
24V 12A LiFePO4 Battery Charger Features:
Microprocessor Control (CPU).
High frequency switching mode power supply technology. DC isolated from AC.
Multi 3-stage automatic charging: Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
Customized charging steps for Lead-acid battery: CC, CV and Float.
Customized charging steps for Lithium battery: Pre-charge, CC and CV or Shut-off at the end of charging.
Input Characteristics:
Input Voltage: 110/230V AC
Input Frequency: 50Hz or 60Hz and single phase.
Efficiency: ≥85.0% @230Vac/50Hz(Typical full load)
Input socket: EU/AU/UK/US/Italy/India customized
Charging Characteristics:
Pre-charging step: start with small current (often set 20% of CC 3A) to protect over discharged battery.
Constant Current (CC) step: charge with max 12A current for fast charging purpose.
Constant Voltage (CV) step: charging current begins to drop from max 12A and voltage reached max set 29.2V.
Safety Test for battery charger
Low temperature storage: -40 degree.
Random vibration: 20Hz to 2000Hz 3Grms 20Hours per axis.
High & Low temperature ambient operations: +40 degree to -10 degree.
High & Low temperature storage: +70 degree to -40 degree.
Repetitive shock: 40g peak 3 orthogonal axes, 3+and 3- in each axis, 11ms pulse width.
Thermal shock: -35 degree to +75 degree, <3 minutes transition, 2.5 hours dwell, 200 cycles.
Hi-pot Test: 15KVac 5mA 3 Seconds between input and output test
Resistance: The LiFePO4 battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The wheelchair battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
Protection for 24V 12A LiFePO4 battery charger
Over Voltage Protection: The battery charger will be auto recovered when faults remove.
Over Current Protection: Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection: Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection: When the battery charger output terminals reversed after the charger will not work until it’s connected correctly.
